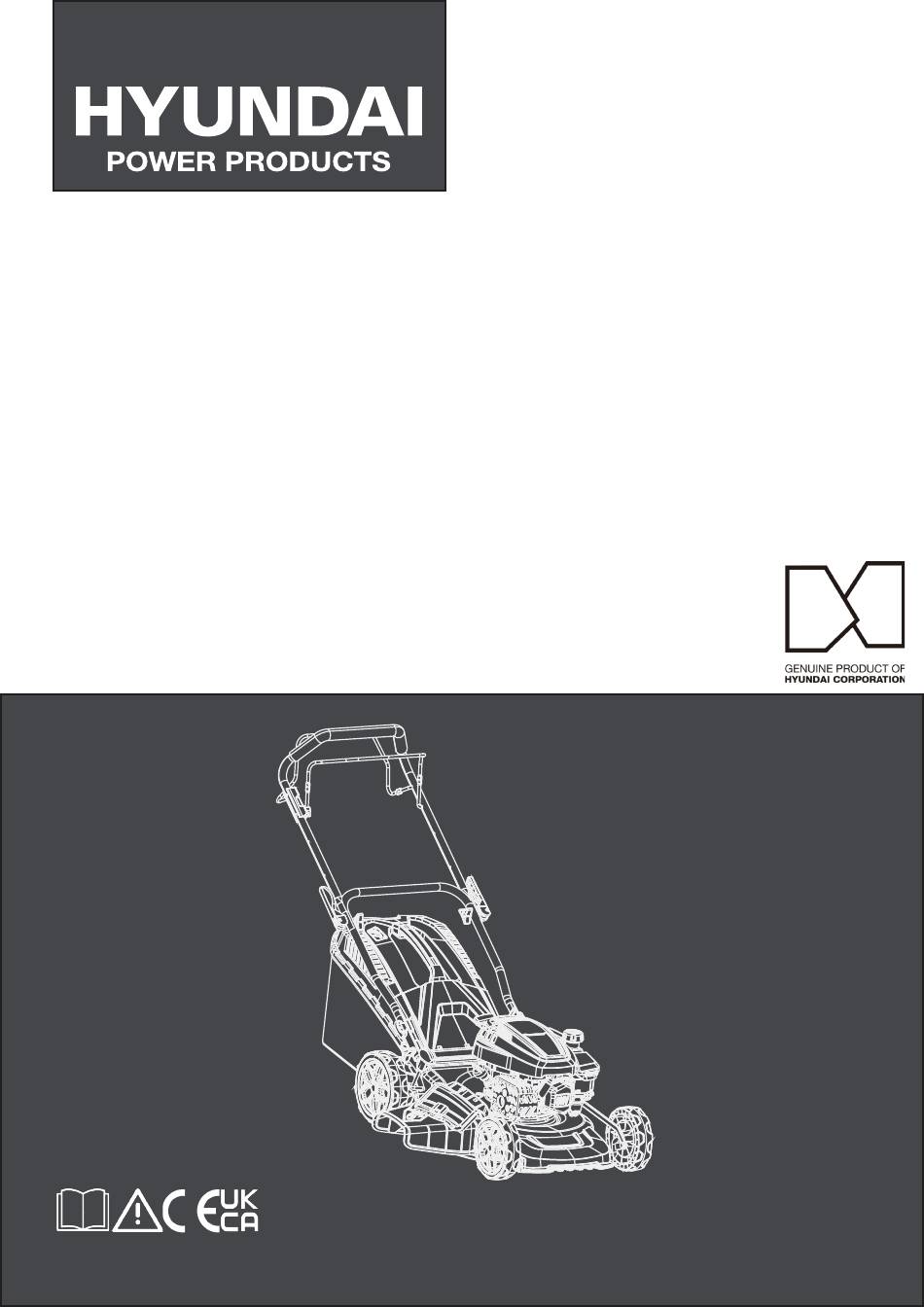

  • Page 1 PETROL LAWN MOWER HYM17150SP Instruction Manual WARNING: Read the instructions carefully before use. Iss:Nov/24...
  • Page 2: Table Of Contents

    Contents Page Introduction ........3 Replacement & Spares Info ..26 Safety Information ....4-14 Maintenance & Care .... 27-31 Understand your Machine ....4 General Maintenance ......27 Personal Safety ........4 Storage ..........27 Personal Safety (Contined) ....5 Maintenance Schedule ....28 Long Term Storage ......28 Inspect your Machine ......
  • Page 3: Introduction

    Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your prod- uct.
  • Page 4: Safety Information

    Safety Information Understand your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury.
  • Page 5: Personal Safety (Contined)

    Safety Information Personal Safety (Contined) • Do not touch parts that might be hot from operation. Allow parts to cool before at- tempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
  • Page 6: Work Area

    Safety Information Work Area • Make sure you thoroughly inspect the entire work area and remove all objects and anything that could be thrown by the machine or could damage the engine or ma- chine (branches, stones, wire, toys, etc). Attempting to clear the work area whilst using the machine will reduce your concentration and creates a trip hazard.
  • Page 7: During Use

    Safety Information During Use • Always hold the unit with both hands when operating. Keep a firm grip on the handle- bars. Be aware that the machine may unexpectedly bounce upward or jump forward if the machine should strike buried obstacles such as large rocks or roots. •...
  • Page 8: Carbon Monoxide

    Safety Information Carbon Monoxide DANGER! Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside a confined space, such as but not limited to a house, garage, vehicle, boat or tent.
  • Page 9: General Safety

    Safety Information Fuel Safety CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN. General Safety • Do not smoke each time fuel is handled. • ALWAYS avoid inhaling fumes. •...
  • Page 10: Storing Fuel

    Safety Information Fueling/De-Fueling • ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled. • Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.
  • Page 11: Vibrations (Where Applicable)

    Safety Information Vibrations (Where Applicable) • The operating noise of the machine can damage your hearing. When wearing pro- tection such as earplugs or ear defenders to protect your hearing. Long-term and reg- ular users are advised to have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection because your ability to hear alarm warnings will be reduced.
  • Page 12: Personal Protective Equipment

    Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when oper- ating or repairing the machine. No protective equipment can ensure 100%protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc.
  • Page 13: Symbols On The Machine

    Safety Information Symbols on the Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messag- es carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement.
  • Page 14: Intended Use

    Safety Information Intended Use The HYM17150SP is a petrol lawnmower from HYUNDAI. The HYM17150SP has a cutting width of 430mm and is powered by a 150cc engine The HYM15170SP is a garden tool and precisely a pedestrian controlled lawnmower. The machine is essentially composed of a motor which drives a blade enclosed in a casing, equipped with wheels and a handle.
  • Page 15: Unboxing

    2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired.
  • Page 16: Features

    Features * NOT TO SCALE 1. Drive lever (clutch lever) 11. Rear wheel 2. Soft grip Handle 12. Engine oil cap 13. Side discharge cover 3. Upper handle 14. Side discharge chute 4. OPC Lever 15. Deck 5. Quick lock handle 16.
  • Page 17: Assembly

    Assembly Handle Assembly NOTE: When assembling the handles, ensure the recoil holder (pictail) is on the right hand side of the machine, when stood behind it. Step 1 : Assemble the lower handles. Place the bolt from behind the mower deck bracket. Onto the bolt place the lower bar support followed by the bar itself.
  • Page 18: Grass Collection Box Assembly

    Assembly Grass Collection box Assembly Step 1 : Clip the Grass box cover to the bag. Start securing the clips from one side and make your way around to the other Step 2: Lift the Rear discharge cover and hook the collection box into place Grass box cover Rear discharge cover Grass bag...
  • Page 19: Pre-Operation Checks

    Pre-Operation Checks Checking Oil Level WARNING! THIS MACHINE IS SHIPPED WITHOUT ANY OIL. YOU MUST FILL THE MACHINE WITH OIL BEFORE STARTING IT FOR THE FIRST TIME. WARNING: The following checks and procedures are essential to prevent any damage and operational damage to your machine. You MUST follow them. Recommened Oil: Always use high quality SAE30 oil (or equivalent e.
  • Page 20: Filling With Fuel

    Pre-Operation Checks Filling with Fuel NOTE: Always use clean, fresh E5 or E10 unleaded petrol. Only ever fill with enough fuel which can be used within 30 days. Fuel can go stale over 30 days old which will cause issues with the machines operation. WARNING: This is a 4-stroke machine.
  • Page 21: Operation

    Operation Cutting Height Adjustment WARNING! Only adjust the cutting of the machine when the machine is off, and all moving parts have stopped. The cutting height is centrally adjusted with cutting height adjusting handle. Different cutting heights can be selected. Pull the adjusting handle out and select the desired cutting height.
  • Page 22: Starting And Stopping

    Operation Starting and Stopping WARNING : The blade will rotate as soon as the engine is started. WARNING: Only operate the machine in well ventilated areas WARNING : Keep all body parts and clothing away from the moving parts of the ma- chine.
  • Page 23: Stopping

    Operation Stopping To stop the engine, simply release the OPC lever. This should instantly stop the engine. Solving a “Flooded Engine” NOTE: if the engine won’t start after you have Operated the starter several times , the engine may be flood with excess fuel . Use following procedure to clear and start a flooded engine.
  • Page 24: Self Propulsion

    Operation Self Propulsion WARNING : Before using the machine ensure your work area is clear of any hazards or debris, and ensure any pets or young children aren’t free to roam. WARNING : This machine requires the user to be in adequate physical condition. If you are uneasy on your feet, or walk slower than average pace do not use the machine.
  • Page 25: Lawn Care

    Lawn Care General Mowing Tips • Maintain a constant cutting height. Do not shorten the grass to less than half its original height. • Under certain conditions, such as very tall grass, it may be necessary to raise the height of cut to reduce pushing effort, prevent overloading of the motor and leaving clumps of grass clippings.
  • Page 26: Replacement & Spares Info

    Replacement Parts & Spares Info QR Code – Scan the QR code for a direct link to our website Our Website : power-spares.co.uk Call us : 01646 404406 Email us : sales@power-spares.co.uk To maintain your machine in peak operating condition, proper maintenance and care are crucial.
  • Page 27: Maintenance & Care

    Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. •...
  • Page 28: Maintenance Schedule

    Maintenance & Care Maintenance Schedule Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free use. Please keep this manual safe for future reference. It is recommended that the following maintenance schedule is adhered to. This will en- sure the lawn-mower operated correctly and is safe to use.
  • Page 29: Blade Replacement

    Maintenance & Care Blade Replacement WARNING : NEVER fully invert or turn the mower over completely when it’s full of oil and fuel. You can tilt the mower slightly on the side of the oil filler to inspect the blade. IF the blade needs replacement drain the oil and fuel to proceed.
  • Page 30: Air Filter Maintenance

    Maintenance & Care Air Filter Maintenance WARNING!: Never operate the machine without an air filter. Operating without one can cuased small particles and debris to be ingested into the engine can possibly cause damage. 1. Remove the air cleaner outside cover .Be careful to prevent dirt and debris from falling into the air cleaner assembly.
  • Page 31: Spark Plug Maintenance

    Maintenance & Care Spark Plug Maintenance For good performance, the spark plug must be properly gapped and free of deposits. You MUST allow the engine to cool down before carrying out any maintenance. 1. Always use the correct spark plug. 2.
  • Page 32: Troubleshooting

    Troubleshooting Faults which cannot be rectified with the aid of following table may be rectified by a qualified technicias (contact our customer service team to arrange). Please be aware that any improper repairs will also invalidate the warranty and additional costs may be incurred. Use only genuine spare parts.
  • Page 33: Contact

    Our friendly aftersales team will be more than happy to help you Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk...
  • Page 34: Recycling & Disposal

    Recycling & Disposal WEEE Information We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.
  • Page 35: Technical Data

    Technical Data Specification Table Model HYM17150SP Cutting heights 7 Heights - 25-75mm Height adjustment Central Adjustment Cutting width( blade size) 430mm Deck width 450mm Blade Type Straight Blade Grass Collection Box volume Mower Deck material Steel Front/Rear wheel (Inches) 7 front, 8 rear...
  • Page 36: Declaration Of Conformity

    Genpower Ltd Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 430mm Self Propelled Petrol Lawn Mower SKU Code: HYM17150SP Date of Issue: 01/12/2024 Regulations and Directives of Compliance • 2006/42/EC The Machinery Directive • 2006/95/EC Low Voltage Directive •...
  • Page 37: Useful Information

    Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance.
  • Page 38: Product Record

    Product Record Information As soon as you have purchased the machine, we recommend that you fill out the fol- lowing. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:………………………………………………………………………………..
  • Page 39: Notes

    Notes www.hyundaipowerproducts.co.uk...
  • Page 40 For Inquiries, Please Contact: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation Holdings, Korea...
