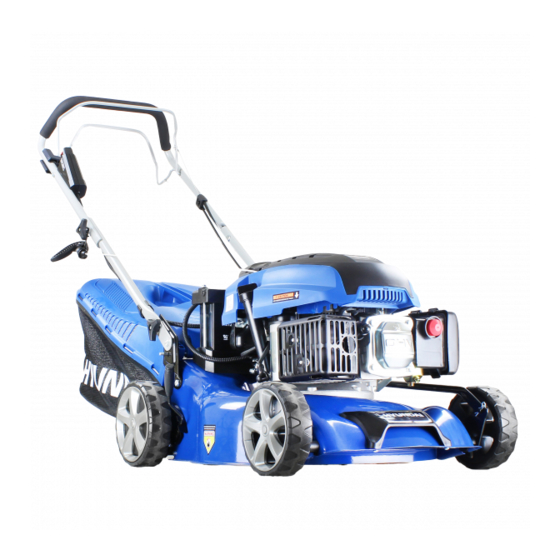

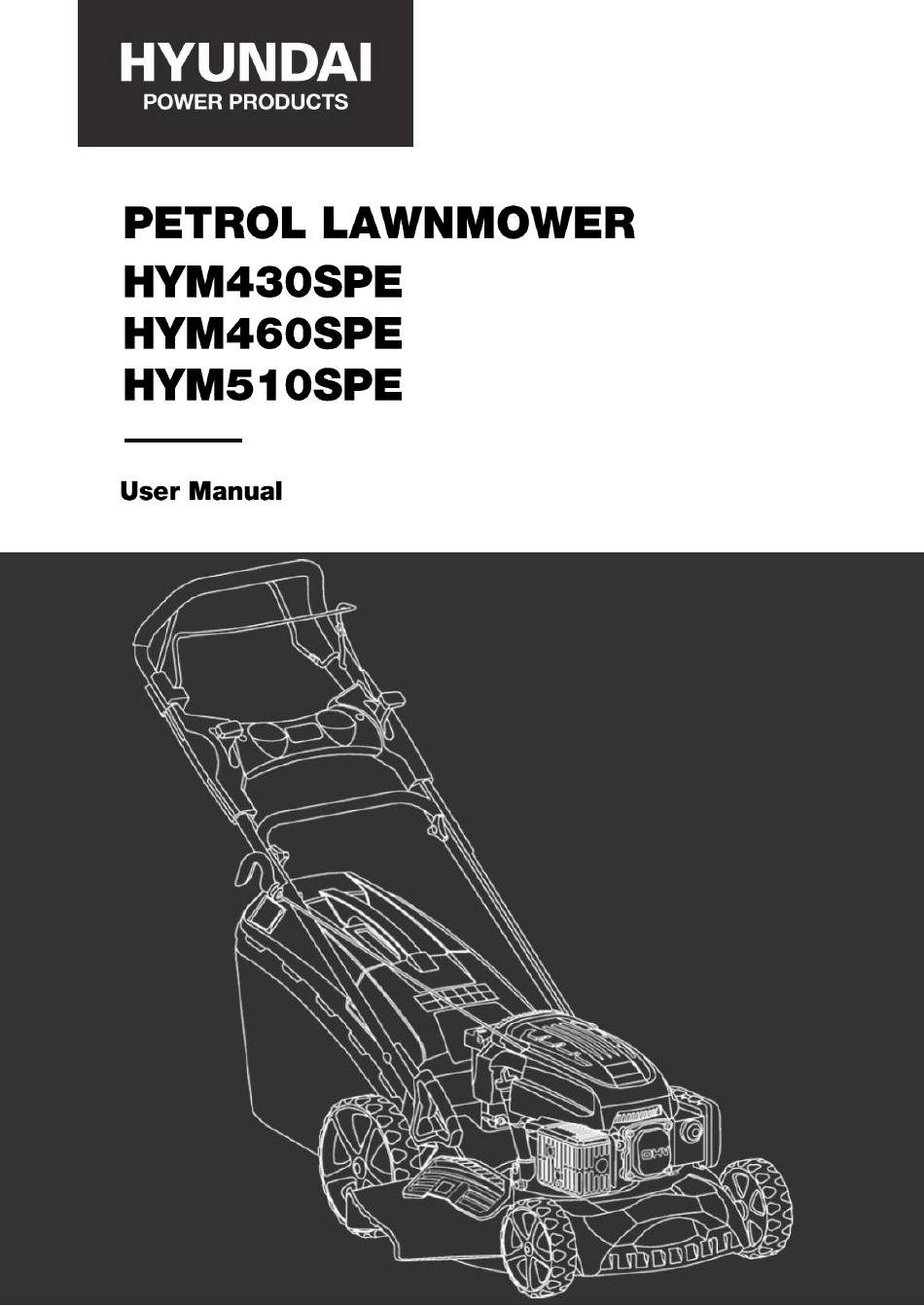

Hyundai HYM430SPE User Manual

Petrol lawnmower
Hide thumbs

Advertisement

Table of Contents

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYM430SPE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HYM430SPE

Summary of Contents for Hyundai HYM430SPE

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 PART LOCATIONS QUICK START GUIDE 9 - 15 STARTING PROCEDURE 16 - 17 STOPPING PROCEDURE USING THE MACHINE 18 - 19 MAINTENANCE 20 - 24 TROUBLESHOOTING SPECIFICATION RECYCLING DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY INDEX...

  • Page 3: Safety

    1. SAFETY 1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
  • Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.
  • Page 7 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.

  • Page 8: Part Locations

    2. PART LOCATIONS Drive Control Lever OPC Lever Choke & Throttle Control Fuel Filler Cap Air Filter Spark Plug Exhaust (Caution Hot) Side Discharge Cover * Wheel Height Adjustment Lever Battery Grass Catcher Recoil Starter Handle Self-Propel Speed Control Electronic Start Button *HYM460SPE &...

  • Page 9: Quick Start Guide

    3. QUICK START GUIDE 3. QUICK START GUIDE CAUTION This guide is meant to serve as a quick reference for operating your Hyundai Lawn Mower. We always advise reading the manual in full before operation. CAUTION For OUTDOOR use ONLY.
  • Page 10 Remove the oil filler cap (8) and fill with fresh 15W-40 engine oil to the upper mark (9) on the dipstick. DO NOT overfill. Once the correct amount of oil has been added, refit the dipstick securely. If you overfill the oil, you can remove some by gently tilting the machine on its side and pouring out any excess oil into a suitable container.
  • Page 11 3.10 Remove the fuel tank cap (10). 3.11 Fill the fuel tank with fresh straight unleaded petrol. Allow a 25mm gap from the top of the tank, then refit the cap securely. DO NOT mix petrol with oil and clean up any spills immediately. 3.12 MULCHING 3.13...
  • Page 12 CUT AND DROP 3.19 Lift the rear discharge flap and remove the grass collector and mulching plug if installed. 3.20 Insert the two plastic lugs (2) into the mounting points underneath the rear discharge flap (1). 3.21 Lower the rear discharge flap until it rests on the two plastic lugs. 3.22 This will allow you to drop the grass clippings behind the lawnmower.
  • Page 13 CABLE ATTACHMENT NOTE If you are stood behind the lawn mower: OPC Cable: This attaches to the lever in front of the main handlebar and if traced, will attach to the engine. Drive Cable: This attaches to the lever behind the main handlebar and if traced, will enter the deck of the lawn mower behind the engine.
  • Page 14 3.27 Refit the lever back into its location hole on the main handlebar (5). 3.28 Check the cable lies flat and has not snagged on any other part of the lawnmower (6). OPC CABLE ADJUSTMENT NOTE It is necessary as part of routine maintenance to adjust the OPC cable tension to ensure the lawnmower will start correctly.
  • Page 15 3.32 Move the adjustment nut towards the lock nut and continually check the cable tension at the lever (3). 3.33 Once the play has been removed, hold the adjustment nut in place and tighten the lock nut back towards the adjustment lever to lock the cable in place (4). 3.34 Check the cable adjustment has worked by starting the mower.
  • Page 16 3.39 As you adjust, keep checking the tension on the drive cable until the desired tension is reached (3). 3.40 Tighten the lock nut finger tight, back towards the adjuster nut and check for drive on the lawn mower. Once drive is restored, tighten the lock nut securely (4).

  • Page 17: Starting Procedure

    4. STARTING PROCEDURE NOTE You MUST ensure the mower has the correct oil and fuel level before operation. Images may vary depending on the model of machine. Charge the battery (1) for 6 hours using the charger supplied. Push the choke lever all the way forward (2). Make sure the blade is free of long grass and the cutting height is set to maximum (3).

  • Page 18: Stopping Procedure

    Once running, pull the throttle lever back one notch to run position and the engine will run smoothly (6). HYM430SPE / HYM460SPE ONLY – Use the throttle lever (7) to select a suitable engine speed. HYM510SPE ONLY- Use the throttle lever (7) to select a suitable engine speed.

  • Page 19: Using The Machine

    6. USING THE MACHINE Always use the lawnmower with the grass catcher, or rear deflector in position. Stop the engine before emptying the grass catcher or before you change the cutting height. Never put feet or hands near the mower when running. Before mowing, remove all foreign objects from the lawn, which may cause injury or damage.
  • Page 20 6.18 Start the engine carefully according to instructions and with feet well away from the blade. 6.19 Do not tilt the lawn mower when starting the engine. 6.20 Do not put hands or feet near or under rotating parts. 6.21 Never pick up or carry a lawn mower while the engine is running.

  • Page 21: Maintenance

    WARNING NEVER touch a rotating blade. Always stop the engine and unplug the spark plug before doing any repairs or maintenance. Check regularly the oil level and keep it to the recommended level as required. Frequently check the lawnmower and ensure that all grass deposits are removed from beneath the deck.
  • Page 22 You MUST allow the engine to cool down before carrying out any maintenance. Always replace with the same model spark plug as fitted. To check spark plug, remove spark plug cap (1) and remove spark plug (2) using the supplied spark plug wrench. Clean the spark plug electrode, making sure that there is no damage to the insulator or electrode.
  • Page 23 CAUTION A dirty air filter will restrict the air flow to the carburetor, which will reduce engine efficiency. When using the lawnmower in very dusty areas you must clean or replace the air filter more often. Never operate the machine without the air filter being fitted it can cause damage to the engine which is not covered by warranty.
  • Page 24 CAUTION ALL FUELS ARE FLAMABLE ALWAYS fuel and defuel in a well ventilated area outside of buildings. ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 7.17 The use of old or stale fuel will impair starting and running of the machine.
  • Page 25 CAUTION DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system. 7.22 Wipe the deck with a dry cloth. 7.23 You can hose under deck by tilting the mower. Make sure you tilt the machine so that the air filter is facing up.

  • Page 26: Troubleshooting

    8. TROUBLESHOOTING Problem Possible Cause Possible Corrective Action OPC cable not adjusted cor- Adjust OPC cable rectly Fuel tank is empty Fill fuel tank Engine does not start Stale fuel Drain carburetor float bowl Air filter element is dirty Clean or replace air filter Spark plug is loose Tighten spark plug Spark plug cap loose or discon-...

  • Page 27: Specification

    9. SPECIFICATION MODEL HYM430SPE HYM460SPE HYM510SPE Engine Type IC140VE IC140VE IC175VE Engine Size – cc Fuel Tank Capacity Fuel Type Unleaded Petrol Oil Capacity – ml Rated Speed – rpm 3000 3000 Rated Power – kw Drive Type Self-Propelled, Variable...

  • Page 28: Recycling

    10. RECYCLING & PRODUCT DISPOSAL 10.0 We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 29: Declaration Of Conformity

    11. DECLARATION OF CONFORMITY Genpower Ltd confirms that these Hyundai products conform to the following CE Directives. 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC, Amended by 2005/88/EC Noise Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by:...

  • Page 30: Contact Details

    12. CONTACT DETAILS 12.0 POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. 12.1 TELEPHONE +44 (0) 1646 687880 12.2 +44 (0) 0164 686198 12.3 TECHNICAL EMAIL aftersales@genpower.co.uk 12.4 WEBSITE www.hyundaipowerequipment.co.uk 13. WARRANTY To register your machine for the manufacturer's warranty, please visit https://hyundaipowerequipment.co.uk/warranty For full warranty terms and conditions, please visit https://hyundaipowerequipment.co.uk/warranty-information...

This manual is also suitable for:

Hym460speHym510spe
