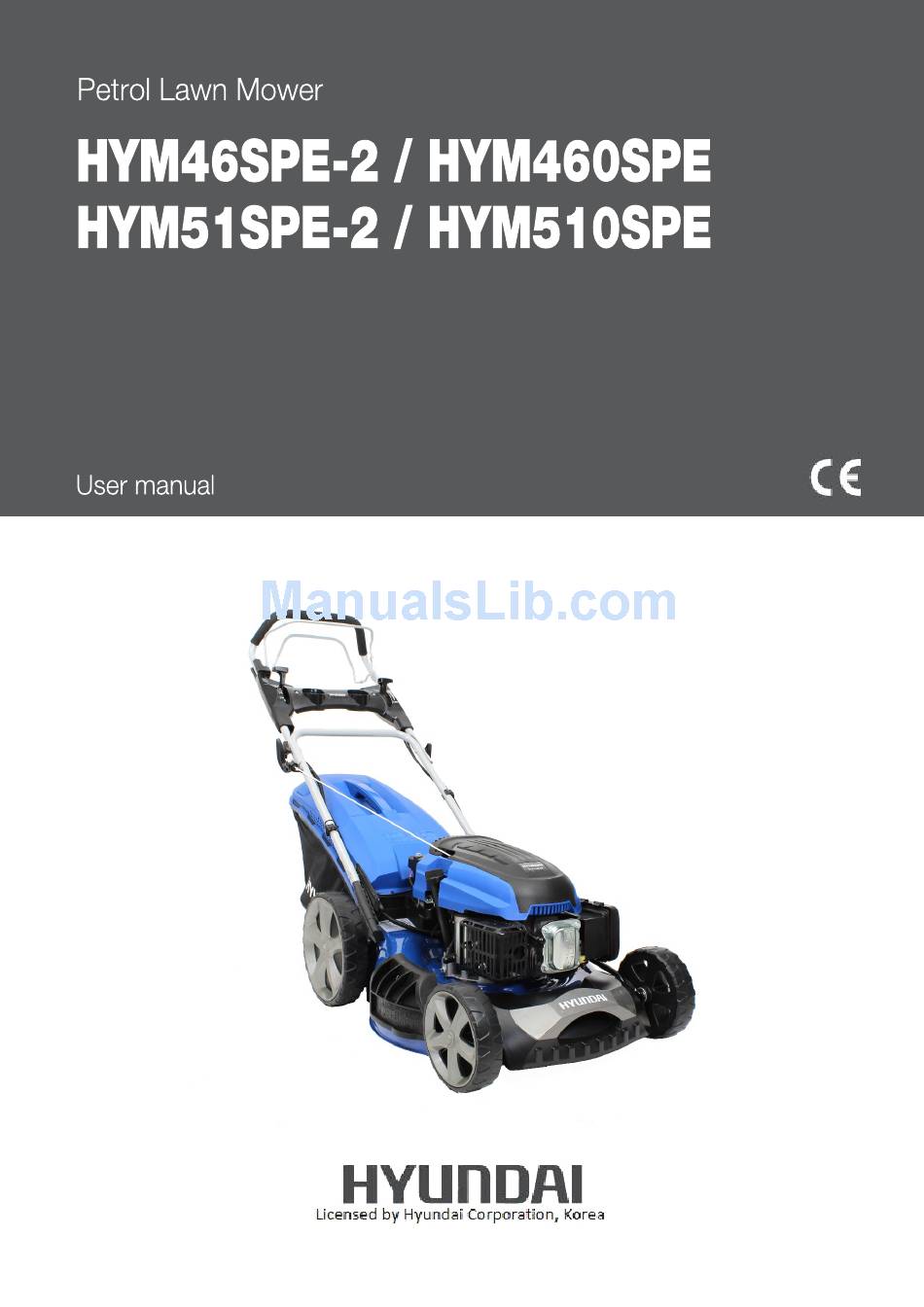

- Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
-
Page 2: Table Of Contents
INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 PART LOCATIONS QUICK START GUIDE 9 - 12 STARTING PROCEDURE STOPPING PROCEDURE USING THE MACHINE 15 - 16 MAINTENANCE 17 - 21 TROUBLESHOOTING SPECIFICATION RECYCLING DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY... -
Page 3: Safety
1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user. - Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
- Page 5 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
- Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.
- Page 7 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.
-
Page 8: Part Locations
2. PART LOCATIONS Drive Control Lever OPC Lever Choke & Throttle Control Fuel Filler Cap Air Filter Spark Plug Exhaust (caution Hot) Side Flap Wheel Height Adjustment Lever Battery Grass Catcher Recoil Starter Handle Self-Propel Speed Control Electronic Start Button... -
Page 9: Quick Start Guide
3. QUICK START GUIDE CAUTION This guide is meant to serve as a quick reference for operating your Hyundai Lawn Mower. We always advise reading the manual in full before operation. CAUTION For OUTDOOR use ONLY. Petrol lawnmowers produce carbon monoxide – a poisonous, colourless and odourless gas that can cause serious injury or death. - Page 10 Remove the oil filler cap (8) and fill with fresh 15W-40 engine oil to the upper mark (9) on the dipstick. DO NOT overfill. Once the correct amount of oil has been added, refit the dipstick securely. If you overfill the oil, you can remove some by gently tilting the machine on its side and pouring out any excess oil into a suitable container.
- Page 11 2.10 Remove the fuel tank cap (10). 2.11 Fill the fuel tank with fresh straight unleaded petrol. Allow a 25mm gap from the top of the tank, then refit the cap securely. 2.12 DO NOT mix petrol with oil and clean up any spills immediately. MULCHING MODE 2.13 For mulching mode, lift the rear flap and remove the grass box (1).
- Page 12 ADJUSTING THE OPC LEVER NOTE Before use you MUST check and if necessary adjust the Operator Presence Control cable (OPC). To locate the adjuster follow the cable from the OPC handle to the engine body where you will see the OPC adjuster. 2.18 There should be 10mm play in the OPC handle before you feel resistance.
-
Page 13: Starting Procedure
4. STARTING PROCEDURE NOTE You MUST ensure the mower has the correct oil and fuel level before operation. Images may vary depending on the model of machine. Charge the battery (1) for 6 hours using the charger supplied. Push the choke lever all the way forward (2). Make sure the blade is free of long grass and the cutting height is set to maximum (3). -
Page 14: Stopping Procedure
Once running, pull the throttle lever back one notch to run position and the engine will run smoothly (6). HYM46SPE-2 / HYM460SPE ONLY – Use the throttle lever (7) to select a suitable engine speed. HYM51SPE-2 / HYM510SPE ONLY- Use the throttle lever (7) to select a suitable engine speed. -
Page 15: Using The Machine
6. USING THE MACHINE Always use the lawnmower with the grass catcher, or rear deflector in position. Stop the engine before emptying the grass catcher or before you change the cutting height. Never put feet or hands near the mower when running. Before mowing, remove all foreign objects from the lawn, which may cause injury or damage. - Page 16 5.18 Start the engine carefully according to instructions and with feet well away from the blade. 5.19 Do not tilt the lawn mower when starting the engine. 5.20 Do not put hands or feet near or under rotating parts. 5.21 Never pick up or carry a lawn mower while the engine is running.
-
Page 17: Maintenance
7. MAINTENANCE WARNING NEVER touch a rotating blade. Always stop the engine and unplug the spark plug before doing any repairs or maintenance. Check regularly the oil level and keep it to the recommended level as required. Frequently check the lawnmower and ensure that all grass deposits are removed from beneath the deck. - Page 18 THE SPARK PLUG You MUST allow the engine to cool down before carrying out any maintenance. Always replace with the same model spark plug as fitted. To check spark plug, remove spark plug cap (1) and remove spark plug (2) using the supplied spark plug wrench.
- Page 19 AIR FILTER CAUTION A dirty air filter will restrict the air flow to the carburetor, which will reduce engine efficiency. When using the lawnmower in very dusty areas you must clean or replace the air filter more often. Never operate the machine without the air filter being fitted it can cause damage to the engine which is not covered by warranty.
- Page 20 FUEL AND CARBURETOR CAUTION ALL FUELS ARE FLAMABLE ALWAYS fuel and defuel in a well ventilated area outside of buildings. ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 6.18 The use of old or stale fuel will impair starting and running of the machine.
- Page 21 CLEANING CAUTION DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system. 6.23 Wipe the deck with a dry cloth. 6.24 You can hose under deck by tilting the mower. Make sure you tilt the machine so that the air filter is facing up.
-
Page 22: Troubleshooting
8. TROUBLE SHOOTING NOTE Where necessary, all corrective actions should be carried out by suitably qualified persons. If the starter rope becomes disconnected from the rope guide on handle, disconnect the spark plug cap. Pull the starter rope out from engine slowly and re-engage in guide. Re connect spark plug cap. -
Page 23: Specification
9. SPECIFICATION MODEL HYM46SPE-2 / HYM460SPE HYM51SPE-2 / HYM460SPE Engine Type IC140VE IC175VE Engine Size – cc Fuel Tank Capacity Fuel Type Straight – Unleaded Petrol Oil Capacity – ml Rated Speed – rpm 3000 3000 Rated Power – kw... -
Page 24: Recycling
10. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 25: Declaration Of Conformity
11. DECLARATION OF CONFORMITY Genpower Ltd confirms that these Hyundai products conform to the following CE Directives. 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC, Amended by 2005/88/EC Noise Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive... -
Page 26: Contact Details
12. CONTACT DETAILS POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. TELEPHONE +44 (0) 1646 687880 +44 (0) 0164 686198 TECHNICAL EMAIL aftersales@genpower.co.uk WEBSITE www.hyundaipowerequipment.co.uk 13. WARRANTY To register your machine for the manufacturer's warranty, please visit https://hyundaipowerequipment.co.uk/warranty MANUAL UPDATES 10.0... - Page 27 NOTES...
