Summary of Contents for Hyundai HYM40P

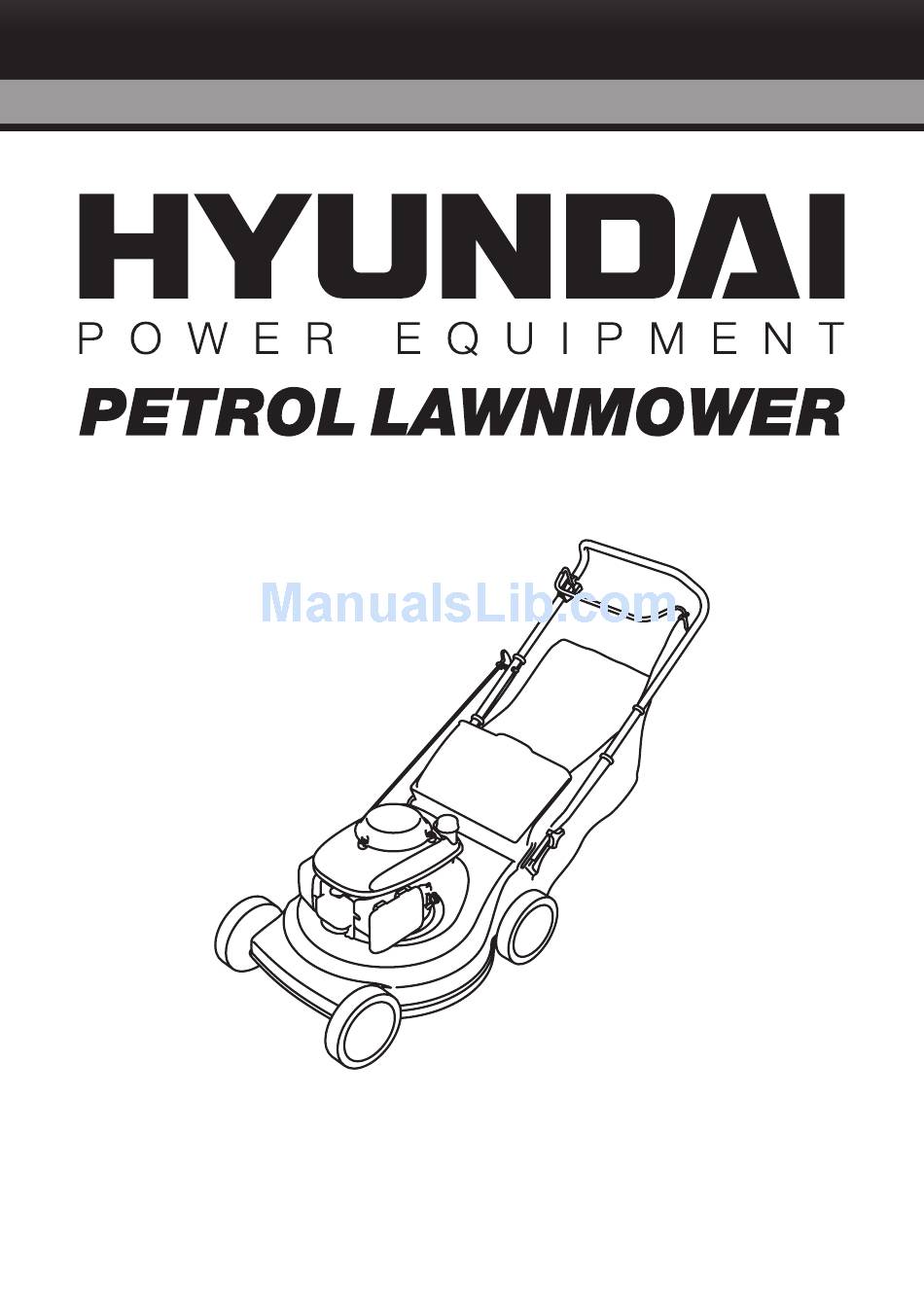

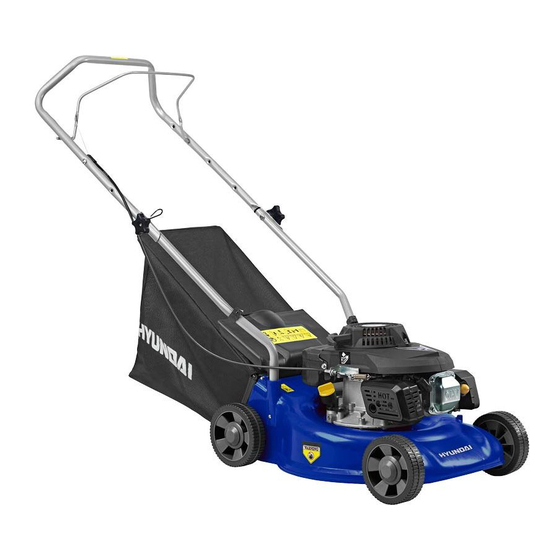

- Page 1 OPERATOR’S MANUAL * IMPORTANT SAFETY INSTRUCTIONS HYM40P - HYM43P - HYM43SP - HY46SP (4-in-1) - HYM51SP (4-in-1) Licensed by Hyundai Corporation, Korea...
- Page 2 Hyundai Pow Hyundai Pow...
-
Page 3: Table Of Contents
wer Equipment wer Equipment contents reface afety essages azard yMbols and eanings Pecification arts iagraM sseMbly 11 c utting eigHt djustMent 12 o Peration 14 M ulcHing 16 W arnings 20 M aintenance 22 t roublesHooting 24 W arranty 25 d eclaration of onforMity 26 n... -
Page 4: P Reface
Preface Thank you for choosing this petrol lawnmower engine. The manual gives information with respect to operation and maintenance of the HYM40P, HYM43P, HYM43SP, HY46SP and HYM51SP petrol lawn mowers. Please read carefully first before operation. Only operate as the manual shows. This ensures the users safety and gets the best results from your lawnmower. -
Page 5: Safety Messages
wer Equipment safety Messages Your safety and the safety of others is very important. We have provided important safety messages in this manual and on the petrol engine. Please read these messages carefully. A safety message alerts you to potential hazards that could hurt you or others. -
Page 6: H Azard S Ymbols And
Hyundai Pow Hazard syMbols and Meanings explosion fire electric shock toxic fumes kickback hot surface flying objects slippery fall fluid injection moving parts read manual... -
Page 7: Pecification
Equipment sPecification HYM40P HYM43P HYM43SP HYM46SP HYM51SP Dry Weight 22kg 26kg 30kg 32kg 36kg Engine Type Hyundai Drive Type Hand-push Self-propelled Displacement 99cc 139cc 173cc Engine Power 1.kW 2.5kW 3.8kW Engine Speed 2800rpm Height Adjustment 4 Wheel Adjustment Central Adjustment... -
Page 8: Arts D Iagram
Hyundai Pow Parts diagraM 1. Drive lever 8. Spark plug 2. Operator presence 9. Oil cap & dipstick control (OPC) lever 10. Fuel cap 3. Throttle & choke lever 11. Folding handle 4. Recoil handle 12. Side discharge deflector 5. Polyester grass catcher 13. -
Page 9: Assembly
wer Equipment asseMbly Grass Catcher Assembly Please do the following: 1. Put the metal frame inside the grass catcher. Fig. 1A Fig. 1B 2. To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig. 1A, Fig. 1B). 3. -
Page 10: Handle Assembly
Hyundai Pow asseMbly Handle Assembly Please do the following: 1. Fix the lower handle onto the desk using a spanner. (Fig. 2A) 2. Release the two locking levers from the upper handle for folding. (Fig. 2B) Fig. 2A Fig. 2B 3. -
Page 11: C Utting H Eight
wer Equipment cutting HeigHt adjustMent Pull out to disengage height adjustment lever from quadrant. Push lever forward or back to adjust the height. 1. Always use the lawnmower with the grass catcher, or deflector in position. 2. Stop the engine before emptying the grass catcher or before you change the cutting height. -
Page 12: O Peration
Hyundai Pow oPeration Before using the lawnmower you must read the Hyundai Engine Manual carefully and fill up the engine with unleaded petrol and 15w40 engine oil. Engine Starting Once the machine has had a PDI (for new machines), start the engine as follows: 1. - Page 13 wer Equipment oPeration The Self-Propelled Function (Models HYMSP43, HYMSP46, HYMSP51) Push the self-drive control lever forward to the main handle then the machine will move forward automatically. During operation, hold the handle tight with both hands. Stopping the engine and machine Release the OPC control lever to stop the engine and blade.
-
Page 14: Ulching
Hyundai Pow MulcHing ONE: Fitting Mulching Plug Note: make sure the machine is stationary and not running! . Lift the rear cover and remove the grass catcher. . Push the mulching wedge into the discharge channel. Lock the mulching wedge into the slot. - Page 15 wer Equipment MulcHing Mount the discharge chute for side discharge on the support pin of the side flap. . Lower the side flap–the side flap lies on the side discharge chute. THREE: Grass Collection For mowing with the grass catcher, remove the mulching wedge and side discharge chute and fit the grass catcher.
-
Page 16: Arnings
Hyundai Pow Warnings 1.1 Training 1.1.1 Read the manual carefully. Be familiar with the controls and proper use of the equipment; 1.1.2 Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator;... - Page 17 wer Equipment Warnings 1.2.4 Replace faulty exhausts; 1.2.5 Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and make sure when sharpening that the blades are balanced; 1.3 Operation 1.3.1 Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect;...
- Page 18 Hyundai Pow Warnings 1.3.14 Start the engine carefully according to instructions and with feet well away from the blade; 1.3.15 Do not tilt the lawn mower when starting the engine; 1.3.16 Do not start the engine when standing in front of the discharge chute;...
- Page 19 wer Equipment Warnings equipment is in safe working condition; 1.4.2 Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark; 1.4.3 Allow the engine to cool before storing in any enclosure;...
-
Page 20: Aintenance
To remove the blade, unscrew the bolt, check the blade support and change all spare parts if they are worn out or damaged. ONLY USE HYUNDAI ORIGINAL SPARE PARTS. POOR QUALITY SPARE PARTS CAN INVOLVE REDUCE THE LIFE OF YOUR LAWNMOWER AND CAN CAUSE INJURY. - Page 21 wer Equipment Maintenance CLEANING CAUTION: Do not hose engine. Water can damage engine or contaminate the fuel system. 1. Wipe deck with dry cloth. 2. Hose under deck by tilting the mower so that the air cleaner is up. 3. Refer to separate engine manual for engine cleaning in- structions.
-
Page 22: T Roubleshooting
Hyundai Pow troublesHooting guide on handle, disconnect and ground the spark plug cap. Depress the blade control handle and pull the starter rope out from engine slowly. Slip the starter rope into the rope guide bolt on handle. PROBLEM PROBABLE CAUSE... -
Page 23: Troubleshooting
wer Equipment troublesHooting Install new, correctly gapped Spark plug is defective. plug: refer to Engine Owner’s Manual. Set gap between electrodes at Spark plug gap is incorrect. 0.7 to 0.8mm. Clean air cleaner element: Air cleaner element is dirty. refer to Engine Owner’s Manual. -
Page 24: Arranty
Freight and packing cost. Only use genuine Hyundai spare parts. The manufacturer will refuse any responsibility if the machine was not used for the purpose it was made or if the operator did not use the machine as described in the operations and maintenance rules in the owner manual. - Page 25 wer Equipment Warranty Read the instruction manual carefully before using the lawnmower. For all spare parts you must specify the model of the mower, the year of manufacture, the serial number of the mower and of the engine. For all spare parts please specify the model and serial numbers where appropriate.
-
Page 26: D Eclaration Of
Hyundai Pow declaration of conforMity Genpower Ltd confirms that this Hyundai petrol lawn mower conforms to the following CE directives: • 2006/42/EC Machinery directive • 2004/108/EC EMC directive • 2000/14/EC Noise emissions directive • 97/68/EC NRMM Emissions directive... -
Page 27: Note
wer Equipment notes w w w . h y u n d a i p o w e r e q u i p m e n t . c o . u k... - Page 28 GENPOWER LTD Unit 1, Dowty Park, Thornton Ind. Est. Milford Haven, UNITED KINGDOM, SA73 2RS T: +44 (0) 1646 663 848 F: +44 (0) 1646 663 856 e: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
