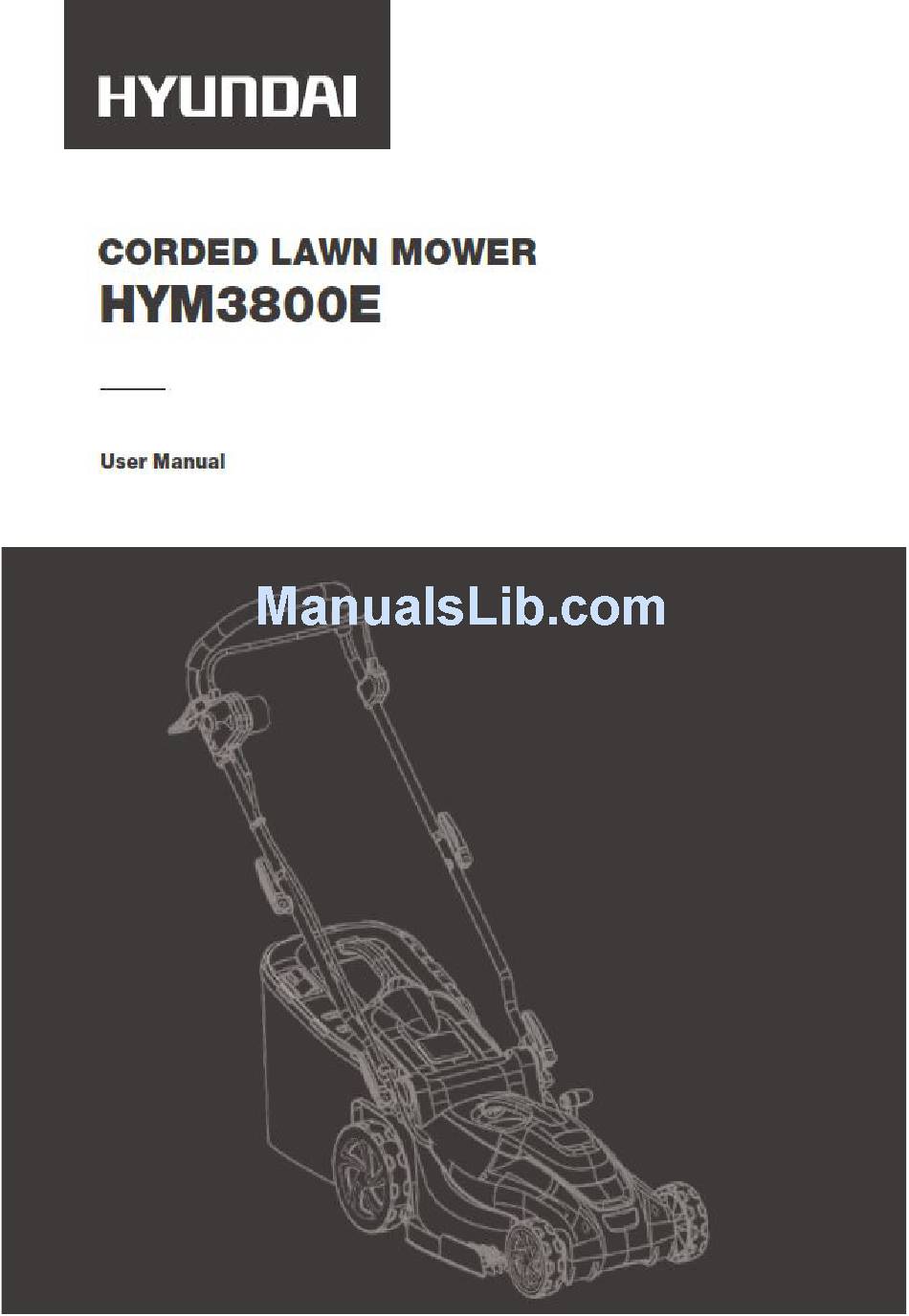

- Page 1 60v Battery Powered Corded Roller Mower HYM380E...
-
Page 2: Table Of Contents
Contents Important information................3 General safety instructions ..............4 Know your machine ................10 Assembly..................11 Operation ....................12 Maintenance....................15 Repair ..................17 Recycling and disposal ................18 Declaration of conformity ................19... -
Page 3: Important Information
IMPORTANT INFORMATION WARNING Read this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions to reduce the risk of fire, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS! This machine can cause serious injury to the operator and... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings &... - Page 5 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times. Use common sense.
- Page 6 motor. Should this be necessary, contact a qualified electrician. Make sure your fingers do not touch the plug’s metal prongs when plugging or unplugging the machine. KEEP BYSTANDERS AND CHILDREN AWAY Keep unauthorised persons a minimum distance of 15metres away from the machine. If approached, stop the machine immediately.
- Page 7 Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Only use accessories approved by the manufacturer. Do not operate the machine while under the influence of alcohol or drugs.
- Page 8 use the product if the cord is damaged or worn. If you need to use an extension cable, ensure it is suitable for outdoor use and has a current capacity rating, sufficient to supply your product. Check it before every use for damage, always uncoil it completely, prior to use, because coiled cables can overheat.
- Page 9 · after striking a foreign object inspect the product for damage & make repairs before restarting, · if the machine starts to vibrate abnormally (check immediately). Shut the motor off and wait until the motor and the blade come to a complete stop before undertaking any inspection. Do not cut/trim near drop-offs, ditches or embankments.
- Page 10 WARNING Observe all normal safety precautions related to avoiding electrical shock. 1.Upper Handle 2.OPC Lever 3.Safety Button Cable Tidy/Restraint Upper Quick Release Handle 6.Lower Handle 7.Lower Quick Release Handle 8.Height Adjuster Handle 9.Machine Carry Handle 10.Grass Collector Handle 11.Collector Top 12.Collector Flap 13.Collector Bottom 14.Front Wheel...
-
Page 11: Assembly
ASSEMBLY ASSEMBLY Grass Catcher Install the grass collector handle to the grass collector top. Align the upper and lower grass collector sections and join. Ensure the clips are located correctly and securely. Handles Unfold the lower handle assembly and lock the lower handle quick release handles into place. - Page 12 quick release handles into place. Unfold the upper handle assembly and lock the lower handle quick release handles into place. ASSEMBLY DANGER: The device may only be put into operation if there are no defects. If a part is defective it must be replaced before the device is used again.
-
Page 13: Operation
OPERATION WARNING: Before connecting to the mains supply, always check the switch is in the off position! Cable Tidy/Restraint We recommend using your mower as outlined in this section in order to achieve optimum results and to reduce the risk of cutting the mains cable. - Page 14 Keep the switch lever held whilst releasing the safety button. Stopping the motor To stop the mower, release the OPC Lever and it automatically returns to its off position. Grass Collector Full Indicator Your machine is fitted with grass full indicator. When the collector is full, the flap will not open, due to insufficient air flow.
-
Page 15: Maintenance
· Under certain conditions, such as very tall grass, it may be necessary to raise the height of cut to reduce pushing effort, prevent overloading of the motor and leaving clumps of grass clippings. · It may also be necessary to reduce ground speed and/ or push the lawn mower over the area a second time. - Page 16 BLADE MAINTENANCE The cutting blade will continue to rotate after the motor is switched off. Slicing is possible if care is not taken. Wear appropriate hand coverage. Remove the electric plug from the mains supply. Clean the underside of the deck with a stiff brush, before any maintenance is undertaken to the blade.
- Page 17 inside the deck to prevent it drying. Remove the belt casing by removing the screws and clean around the transmission and drive belts with a brush or compressed air once or twice a year. Do not use water on any part of the main machine! Pores in the grass box can become filled with dirt and dust, during use and will collect less grass.
-
Page 18: Repair
This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Technical data Model Corded Roller Mower Product No. HYM3800E Voltage 230-240V~50Hz Motor Rated Power (Watt) 1600W No Load Speed 3700/min... -
Page 19: Recycling And Disposal
Recycling and disposal 1. The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is working properly. Recycle the package afterwards. 2. -
Page 20: Declaration Of Conformity
DECLARATIONS OF CONFORMITY Genpower Ltd confirms that this Hyundai product conform to the following CE Directives; 1.1. 2006/42/EC (Machinery Directive) 1.2. 2014/30/EU(EMC) 1.3. 2011/65/EU(RoHS) 1.4. 2000/14/EC, Amended by 2005/88/EC (as amended) 2000/14/EC, Amended by 2005/88/EC (as amended) Of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors.
