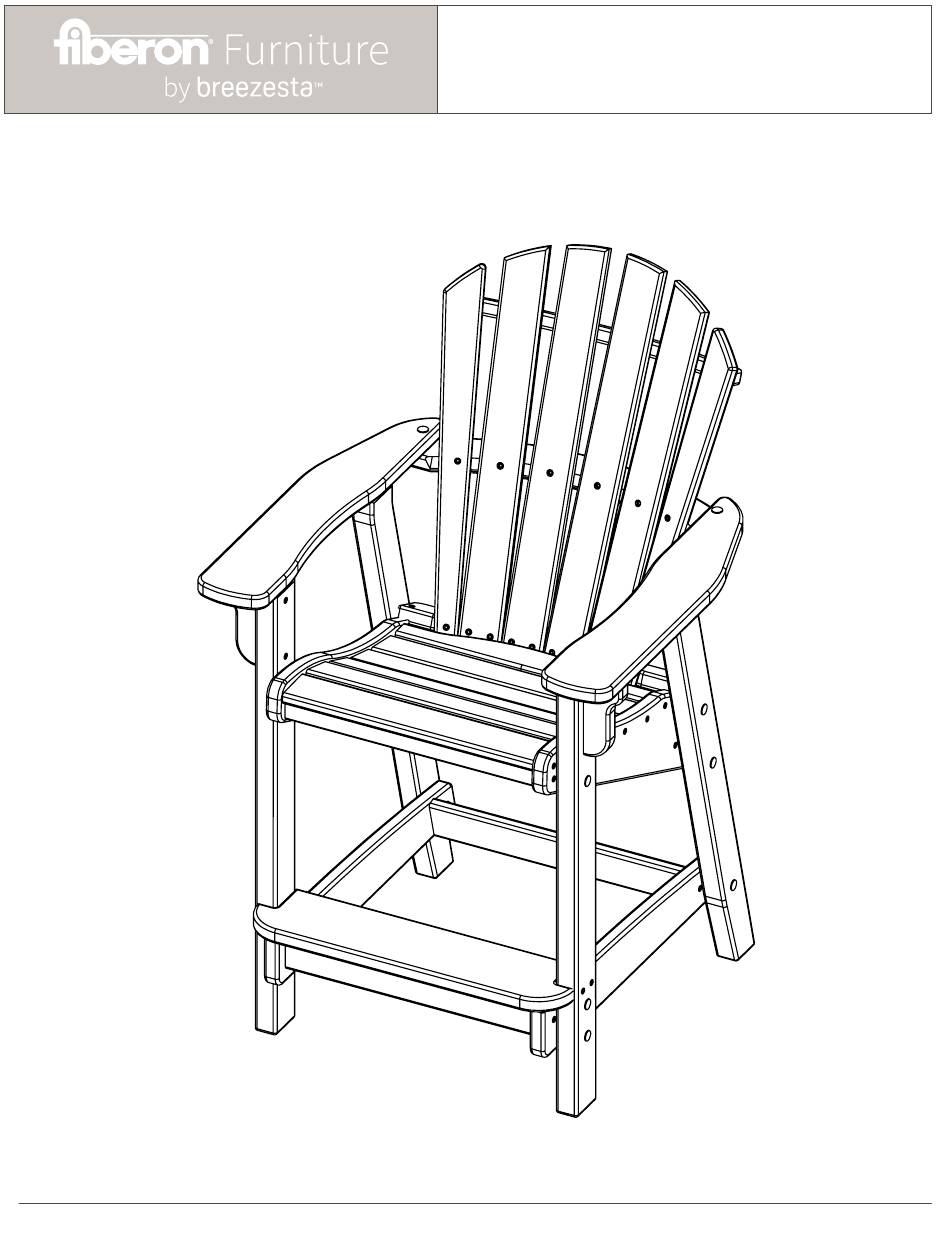

- Page 1 Coastal Counter Chair FIB-CH-0805...
- Page 2 Please read entire instructions before beginning. Coastal Counter Chair Furniture Parts Part Description Part Number Quantity Front Leg Assembly SA-00075 Left Back Leg Assembly SA-00076 Right Back Leg Assembly SA-00077 Under Arm Support PRT-00146 Left Arm Assembly SA-00066 Right Arm Assembly SA-00067 Foot Rest PRT-00168...
- Page 3 Attach Front Leg Assembly A and Left Back Leg Assembly B to Left Arm Assembly E by inserting Hardware d into the pre-drilled holes and rotating Front Leg Assembly A and Left Back Leg Assembly B clockwise, stopping when the assembly is tight in the orientation shown.
- Page 4 Drop Foot Rest G into place and secure it with using Hardware c as shown. c x 4 Slide Back Assembly J into place and connect it as shown. e x 2 a x 2 ©2021 Fiberon. All rights reserved. FIBERON and the Fiberon logo are trademarks of Fiber Composites, LLC. Registered trademarks are registered in the U.S. and may be registered internationally. FIB-CH-0805 Assembly 5/21...
