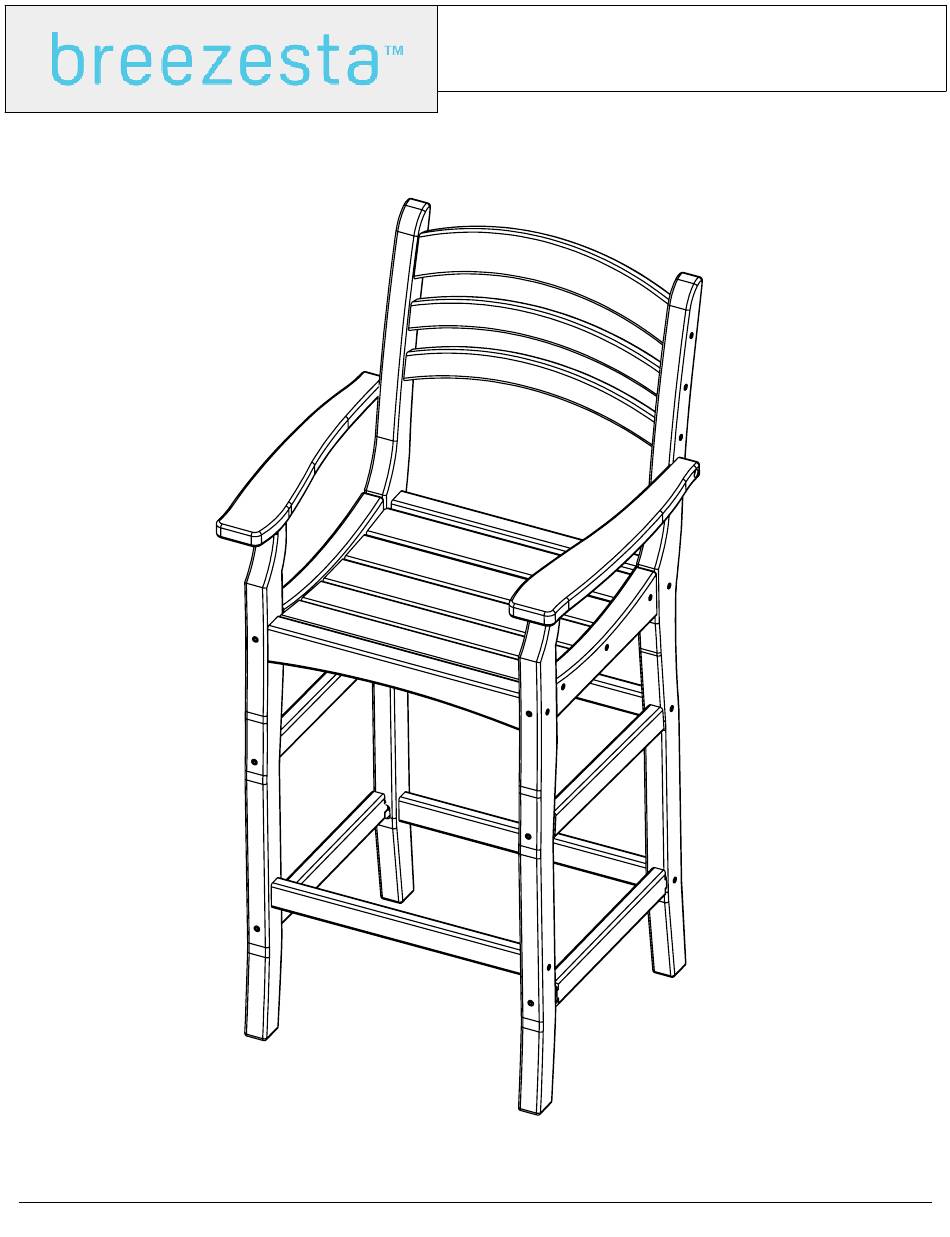

- Page 1 AVANTI BAR CAPTAIN'S CHAIR AV-0605 REV01-11/21 AV-0605 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. LEFT ARM PRT-00239 RIGHT ARM PRT-00240 LEFT FRONT LEG PRT-00241 RIGHT FRONT LEG PRT-00242 ANGLED SPREADER PRT-00213 FRONT/BACK RAIL PRT-00235 SPREADER PRT-00236 SEAT ASSEMBLY SA-00125 BACK ASSEMBY SA-00129 STRAIGHT SPREADER PRT-00226 HARDWARE PART DESCRIPTION PART NO. #8 X 2-1/2"...
- Page 3 Please read entire instructions before beginning Rotate Part D clockwise onto Part B with Hardware d, stop when the connection is snug & in the correct orientation Repeat Step 1 with Parts A & C Place Parts F & G between the previous assemblies and connect them as shown Insert Parts H, E, &...
- Page 4 Dimple Turn the assembly over & attach Part I as shown. Note there is a dimple in each side of the back assembly to assist in aligning the arms to the back legs AV-0605 Assembly...
