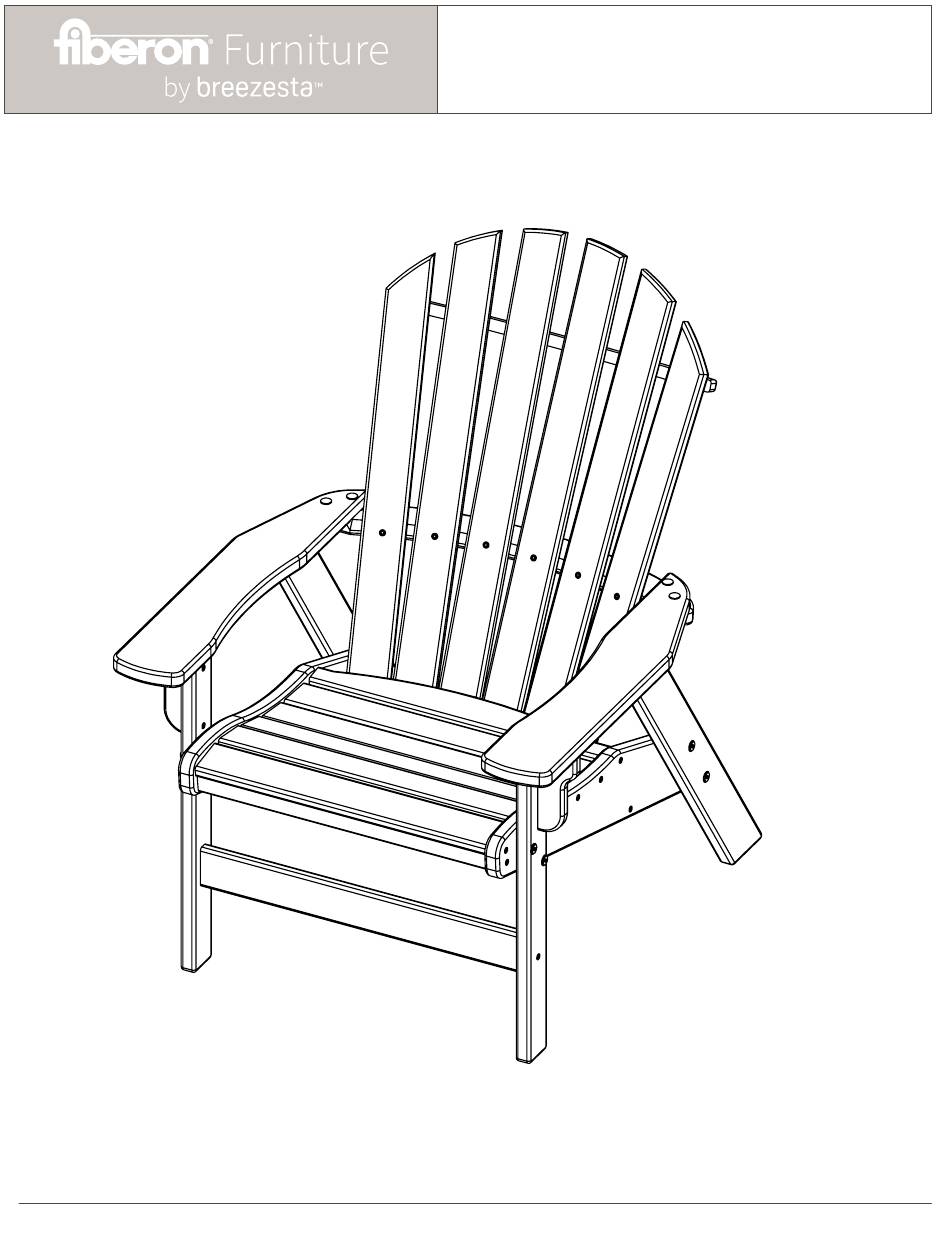

- Page 1 Coastal Upright Adirondack FIB-CO-0400...
- Page 2 Please read entire instructions before beginning. Coastal Upright Adirondack Furniture Parts Part Description Part Number Quantity Front Left Leg Assembly PRT-00138 Front Right Leg Assembly PRT-00139 Rear Leg Assembly PRT-00140 Under Arm Support PRT-00124 Seat Assembly SA-00059 Left Arm Assembly SA-00057 Right Arm Assembly SA-00058...
- Page 3 Attach Rear Leg C to Left Arm F by inserting Hardware c into the pre-drilled holes and rotating Rear Leg C clockwise, stopping when the assembly is tight. Repeat step 1 with Front Left Leg A. c x 2 b x 2 Place Under Arm Support D into the pre-cut slot and attach it using Hardware b.
- Page 4 Lay the seat / back assembly from step 5 and 6 on its side. Fix the assembly from step 1 to the seat / back assembly. Start by hand-tightening Hardware d in the back leg. Next, hand-tighten Hardware d in the front leg. Then, hand-tighten Hardware d through the middle back support up into the arm.
