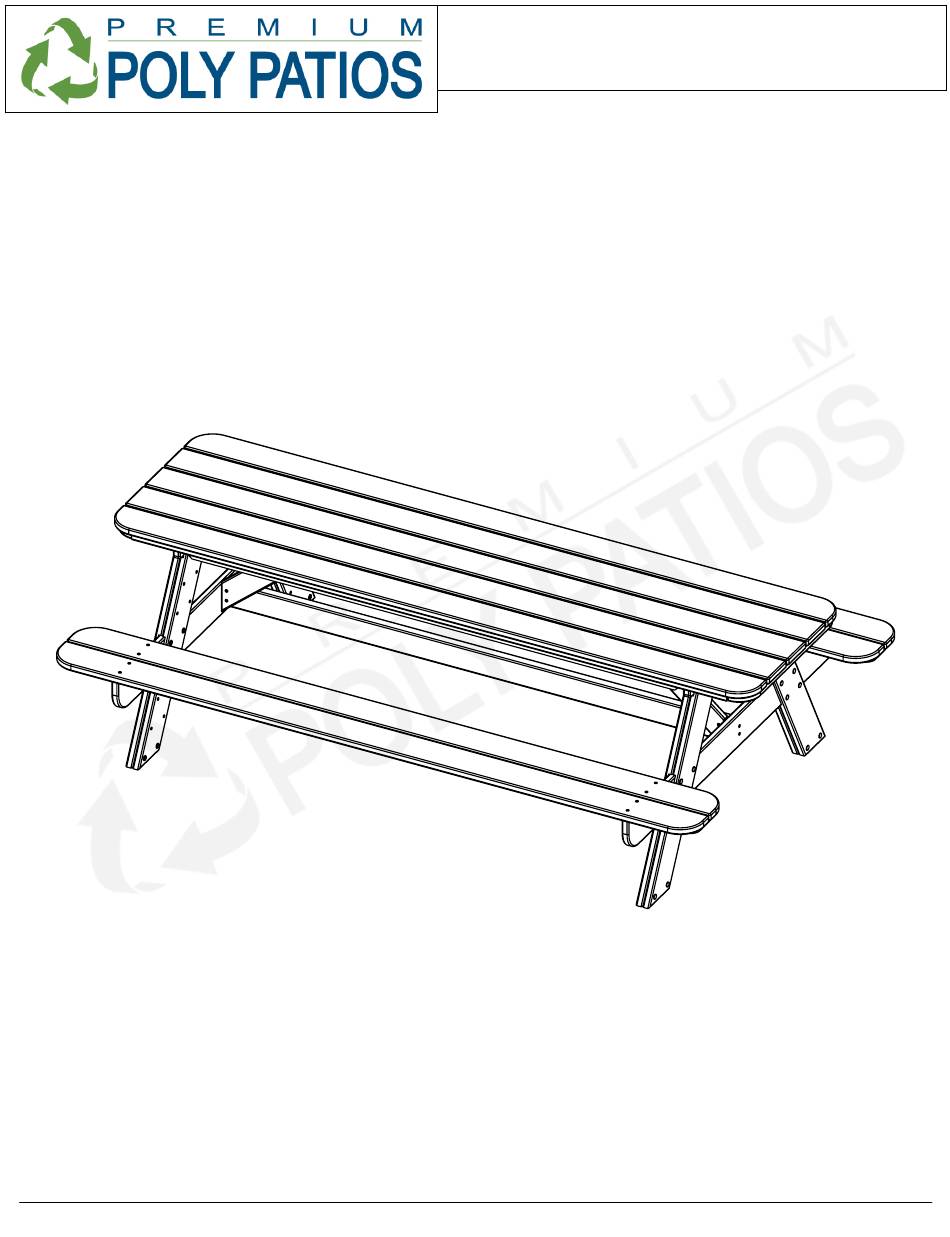

- Page 1 8FT PICNIC TABLE PK-1300-96 REV00-1/19 PK-1300-96 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 PART NO. #8 X 1-1/2" TORX SCREW H-0000-S815 #8 X 1-3/4" TORX SCREW H-0000-S8175 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet PK-1300-96 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Lay Part F upside down and engage Parts A & B with Part F and attach it as shown Flex Parts A & B to place and connect Part E Attach Part D to Part C as shown, repeat this step to create two identical assemblies PK-1300-96 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Place the previous assemblies as shown & connect them to Parts F & E Rotate the assembly as shown & connect Parts G PK-1300-96 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
