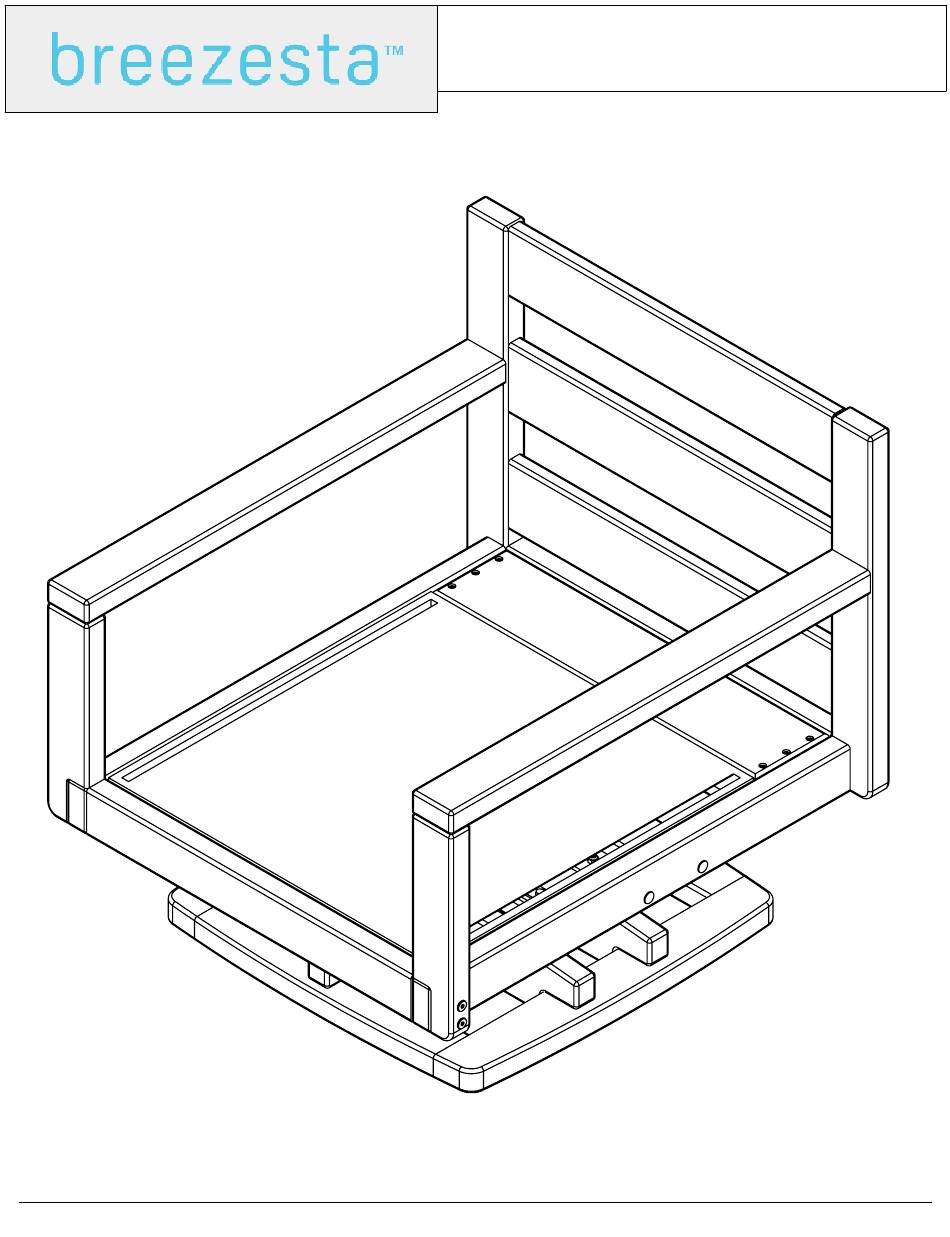

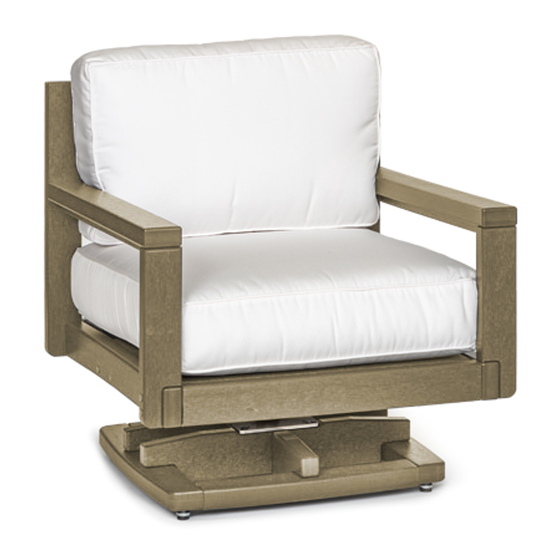

- Page 1 PALM BEACH CLUB SWIVEL/ROCKER PB-1604 REV 01, 02/2020 PB-1604 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. PB SWIVEL ROCKER SEAT BASE ASSEMBLY SA-00374 PB SWIVEL ROCKER SEAT BACK ASSEMBLY SA-00375 PB SWIVEL ROCKER BASE ASSEMBLY SA-00373 PB ARMREST PRT-00833 PB ARMREST SUPPORT PRT-00836 PB SWIVEL ROCKER LH FRONT LEG PRT-00831 PB SWIVEL ROCKER RH FRONT LEG PRT-00832 PB SLING SPACER ASSEMBLY SA-00382...
- Page 3 FLUSH SURFACES Install the levelling mounts ( ) into the threaded inserts on the bottom of the base assembly ( ). Fasten the swivel rocker assembly to the using 4 of hardware . The front and rear edges of base assembly the swivel should be flush to the cross braces.
- Page 4 Connect the Seat Back to the Seat Base using (4) of hardware as shown. Then, secure the rear member of the Seat Base to the Seat Back using (6) of hardware 3/8" Connect Armrest Arm Upright using After the Arm Uprights are hardware as shown.
- Page 5 Lift the assembly of onto Seat Base . The ends of the Swivel/Rocker bracket of the swivel base slide into a slot on the bottom of each side of the seat base. Looking through the holes on the inside of the frame, align the swivel bracket slots with the nuts in the base and thread (2) of hardware in the location...
- Page 6 Attach the arms from Step 3. Rest the notch of the Arm Upright on the top of the Seat Base. Align the tenon at the back of the Armrest to its corresponding slot in the Seat Back and screw fast using (2) of hardware for each arm as shown.
- Page 7 Insert Seat Sling into the Seat Base. PB-1604 Assembly...
