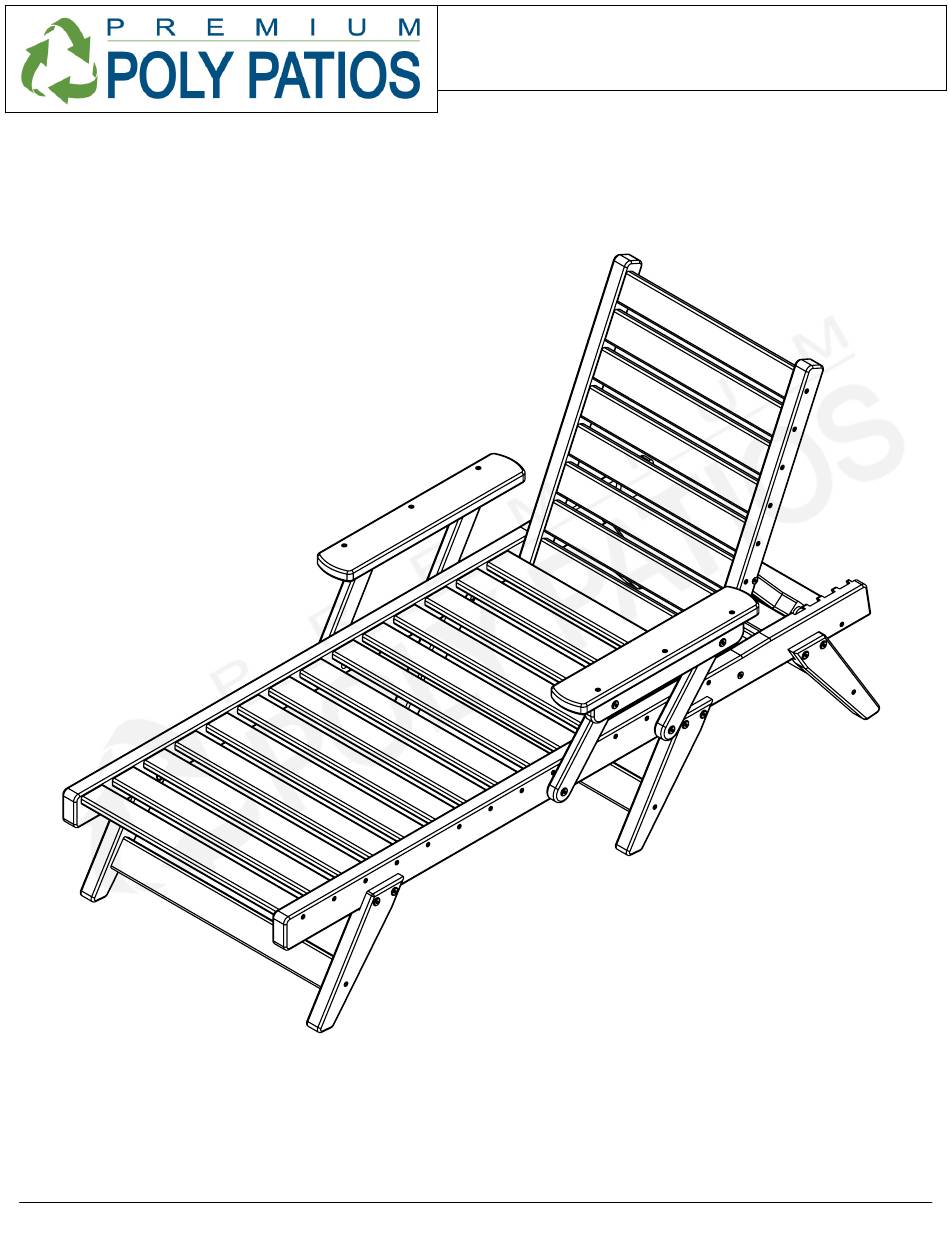

- Page 1 CHAISE LOUNGE CHAIR CL-1200 REV00-1/19 CL-1200 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 DESCRIPTION PART NO. 1/4"-10 X 3" LAG SCREW H-0000-S103 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 LARGE WHITE NYLON WASHER H-0000-LWNW 5/16" STAINLESS LOCK NUT H-0000-LN516 T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet CL-1200 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Please read entire instructions before beginning Place Parts E onto D as shown Attach Parts E to Part D using the hardware shown CL-1200 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Side View Drop Part C into place and secure it using Hardware a & c using the pre-drilled holes Bottom View Place Parts A & B onto the assembly and attach it using the hardware as shown CL-1200 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
