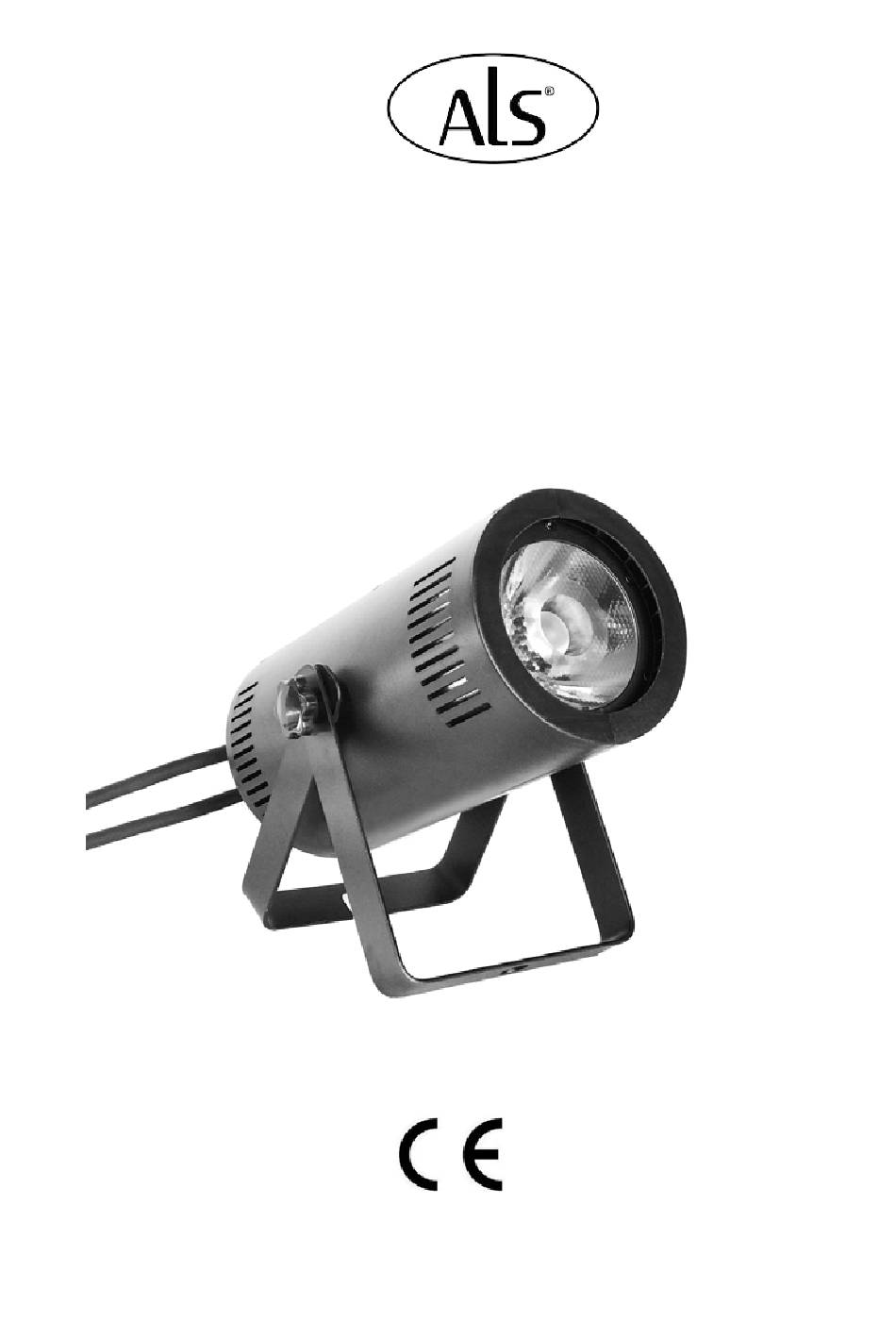

- Page 1 LED 209 LED PINSPOT - USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
- Page 2 Technical parameters Input power Supply: AC100V-240V 50/60Hz Power：20W Light Source：15W 4 in 1 LEDs RGBW Beam angle：4° DMX Channel： 4 / 6 CH Stroboscopic Frequency：0-20Hz Display: LCD display Control Mode：DMX, Auto, Sound, Master/Slave Inner Box：230mm × 115mm × 145mm Packing Size：600mm × 470mm × 310mm (20 in 1) Weight: 1.2kg MENU FUNCTION DOWN...
- Page 3 DMX CHANNELS: 4 / 6 channel Channel Channel Function Value 000--255 Dimming - R G B W 000--255 Dimming - Red 000--255 Dimming - Green 000--255 Dimming - Blue 000--255 Dimming - White 000--000 DMX Mode 001--050 Strobe Speed from fast to slow 051--100 Color Gradient Speed from fast to slow 101--150...
- Page 4 - *No Light Output:* Ensure the light source is not damaged and connections are secure. - *DMX Issues:* Verify DMX settings and cable connections. For further assistance, visit [www.alsprolight.com](http://www.alsprolight.com). Thank you for choosing the LED 209 15W RGBW Pinspot Light. Enjoy your lighting experience!
