ALS ELEDQ Quick Start Manual

DESCRIPTION OF PARTS

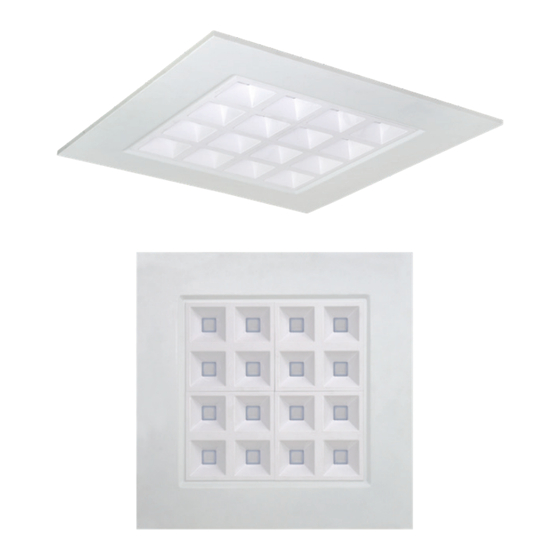

LED panel recessed luminaire, UGR <19
Housing metal, painted white, RAL 9003
Optional
Mounting frame 625x625x51 mm, order number: ELEDN-AUR626
Mounting kit, order number: Z-ELDN
Ceiling mounting kit for ceiling cutout, order number: Z-BELEDQ

TECHNICAL DATA

LED luminaires with integrated converter
220-240V~ 50/60 Hz
Total power consumption: 32 W
Light color: ELEDQ-32NW11T = 4000K
ELEDQ-32WW11T = 3000K
IP class 40
Protection class: II
Dimension: L620xW620xH45 mm
EEC/A+

LAMP

Light module replaceable (in case of repair on request).
LED elements in the light module can not be replaced.

LED DRIVER

Primary voltage: 220-240V~ ( 50/60 Hz )
Protection class II Notification of Risks
CE label Safety Instructions
Splashproof (only in Cleaning Instructions
IP40 covered areas)
The product may not It is not allowed to
be disposed of in the cover luminaires
household garbage. with heatinsulating
cover sheet or similar
materials!
The LED light is not Installation may only
dimmable with phase be carried out by
and section dimmer qualified personnel.
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.

SAFETY INFORMATION

• Splashproof (only in covered areas).
IP40
• The luminaire is suitable for mounting only on
load-bearing grid ceilings L620xW620 mm and
surfaces. The light may otherwise fall. This can result
in product damage and / or injuries.
• Don't install under power.
• Follow the instruction manual for installation.
• Installation only by qualified and authorised
persons.
• Do not use the product when it has been damaged
(defective covers) or there are operational faults
such as flickering, smoking, steaming, crackling
noises or the smell of smoke.
• A damaged or defective product must be changed
or repaired by the manufacturer, a service person
or a comparable qualified person.
• Installation only under observance of the valid
guidelines specific to application and country
among others VDE 0.100.
• Never open one of the electrical operating agents
or plug any objects into them. Such procedures
signify a danger to life through electrical shock.
• Absolutely avoid contact between the product
and water or other liquids. For reasons of electrical
safety, the light may not be placed in contact with
water or other liquids or submerged in water.
• The product may not be changed or modified.
• Make sure that the luminair is never covered by
heat insulating mats or thin materials. Make sure
that the product has enough space for heat
dissipation.

MAINTENANCE AND CLEANING

The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents. The light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.

DISPOSAL

The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household gar-
bage when it has reached the end of its lifecycle, but
rather take it to a disposal center. Your local officials
will provide you with information about collection
offices and their business hours.
ELEDQ
Recessed ceiling luminaire / Ceiling luminaire
ELEDQ-32NW11T
ELEDQ-32WW11T

INTENDED USAGE

This product will only serve the purpose of illumination.
Splashproof (only in covered areas).

SCOPE OF DELIVERY

1 x LED luminaire
1 x LED converter
1 x Set of instructions for assembly, operation and safety
address | contact
A.L.S. GmbH
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: +49 (0) 75 42 93 44-0 | Fax.: +49 (0) 75 42 93 44-30
E-Mail: info@als.de | Web: www.als.de
White
EN
Version: 2019-08-23
