ALS FLEXY2-600SW Quick Start Manual

TEILEBESCHREIBUNG
LED-FLEX-MODUL, 600 LED´s, 600 LED/5 m, 100 segments à 6 LED,
beam 120°, SMD LED, IP20, self-adhesive backing
TECHNISCHE DATEN
24VDC,120 LED per meter x0,16 = 19,2W/m ges. 96W per roll
5m, Width: 10mm, cuttable every 50 mm contact points
Farbtemperatur:
FLEXY2-600SW/FLEXY2-600SW-CRI90 (2700K)
FLEXY2-600WW/FLEXY2-600WW-CRI90 (3000K)
FLEXY2-600NW/FLEXY2-600NW-CRI90 (4000K)
LAMP
SMD--LED
The LED light agent cannot be replaced.
Protection class III Notification of Risks
CE label Safety Instructions
The light can be Cleaning Instructions
used in interiors and
exteriors.
The product may not Don't look directly into
be disposed of in the the LED! The LED is that
household garbage. bright that it might
damage your eyes!
Installation only by Do not expose pro-
qualified and autho- duct to heat source
rised persons.
ESD protection com- Not recommended
ponent for children under 3
years

DISPOSAL

The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household gar-
bage when it has reached the end of its lifecycle, but
rather take it to a disposal center. Your local officials
will provide you with information about collection
offices and their business hours.

SAFETY

READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.

SAFETY INFORMATION

• The flexy stripe is only suitable for indoor use (dry and closed
rooms).
• Before mounting, the intended splice must be thoroughly
cleaned (free from dust, oil and grease layers).
• Assembly only on suitable carrier material, for example
Aluminum regarding heat conduction as well as reliable
adhesion of the adhesion foil.
• Don't install under power.
• Follow the instruction manual for installation.
• Installation only by qualified and authorised persons.
• Do not use the product when it has been damaged (defective
covers) or there are operational faults such as flickering,
smoking, steaming, crackling noises or the smell of smoke.
• A damaged or defective product must be changed
or repaired by the manufacturer, a service person or a
comparable qualified person.
• Installation only under observance of the valid guidelines
specific to application and country among others VDE 0.100.
• Never open one of the electrical operating agents or plug any
objects into them. Such procedures signify a danger to life
through electrical shock.
• Absolutely avoid contact between the product and water or
other liquids. For reasons of electrical safety, the light may not
be placed in contact with water or other liquids or submerged
in water.
• The product may not be changed or modified.
• Keep the product and its components out of the reach of
children. Do not leave packaging material lying around
carelessly, there is danger of suffocation. The product is not a
toy for kids!
• Risk of injury for children! If children or persons who can not
assess the dangers use the product, there is a risk of injury!
• The warranty claim and guarantee is rendered invalid in the
event of damage to the product, which is caused by not
following the operating instructions. We are not liable for the
consequent damage. Because of specific characteristics of
LED's (life, deviation in colour etc.) we formulated special
terms for planing and installing our LED products. They
are part of these installation manual! Should they not be
available, request them please!
• Don't look directly into the LED! The LED is that bright that it
might damage your eyes!
• Storage temperature -40-+80°C
• Processing temperature: +10°C (glue)
• Operating temperature in operation: -25-+60°C

MAINTENANCE AND CLEANING

The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents. The flexy stripe would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.

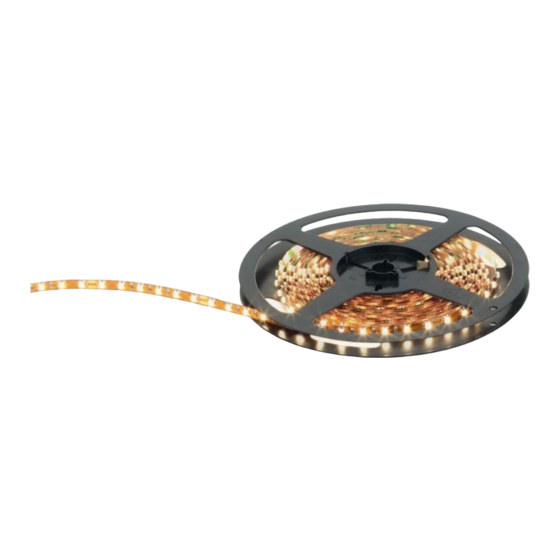

FLEXY2-600 CRI80/CRI90
Flexible LED-stripe
FLEXY2-600SW/FLEXY2-600SW-CRI90
FLEXY2-600WW/FLEXY2-600WW-CRI90
FLEXY2-600NW/FLEXY2-600NW-CRI90

INTENDED USAGE

This product will only serve the purpose of illumination.
The LED-stripe can be used in interiors.

SCOPE OF DELIVERY

1 x ESD packaging, content, flexy stripe 5m
1 x set of instructions for assembly, operation and safety
address | contact
A.L.S. GmbH
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: +49 (0) 75 42 93 44-0 | Fax.: +49 (0) 75 42 93 44-30
E-Mail: info@als.de | Web: www.als.de
EN
Version: 2020-09-29
