ALS ELEDN Quick Start Manual

DESCRIPTION OF PARTS

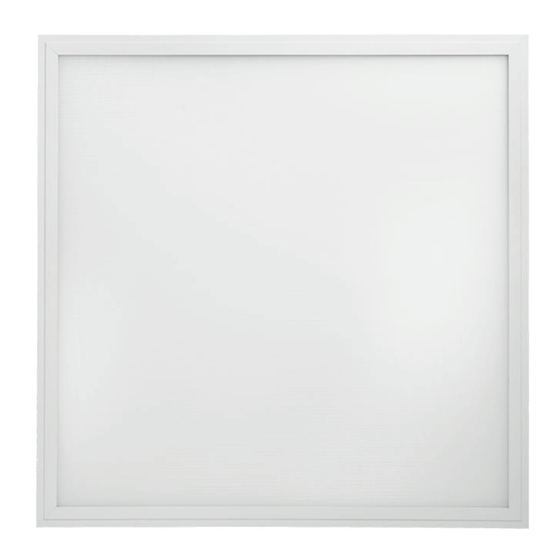

LED panel 620 x 620 x 8,8 mm recessed ceiling luminaire UGR <19
Painted aluminium frame RAL 9003
Seamless corner, no light leak
Optional mounting frame
order number: ELEDN-AUR626
TECHNICAL DATA
LED incl. driver
220-240V~ 50/60 Hz
Total power consumption: 40 W
Not dimmable
ELEDN-40NW11P , light color: 4000K
ELEDN-40WW11P , light color: 3000K
Dimmable:
ELEDN-40NW11PDD (DALI), light color: 4000K
ELEDN-40WW11PDD-ST (DALI), light color: 3000K
IP class 20
Protection class: II
Flickerfree
EEC/A+
LAMP
LED
Mitsubishi prismatic cover with PMMA reflector
Lamp cannot be replaced.
LED DRIVER
nominal voltage,
primary: 220-240V~ ( 50/60 Hz )
Pout 44W iout 1:05A
Protection class II Notification of Risks
CE label Safety Instructions
The product is only Cleaning Instructions
for use in interiors.
The product may not It is not allowed to
be disposed of in the cover luminaires
household garbage. with heatinsulating
cover sheet or similar
materials!
Installation may only Dimmable
be carried out by
qualified personnel
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.
SAFETY INFORMATION
• The light is only suitable for use in interiors, in dry,
enclosed rooms.
• The light is not suitable for attaching on uneven
surface. The light may otherwise fall. This can result
in product damage and / or injuries.
• Don't install under power.
• Follow the instruction manual for installation.
• Installation only by qualified and authorised
persons.
• Do not use the product when it has been damaged
(defective covers) or there are operational faults
such as flickering, smoking, steaming, crackling
noises or the smell of smoke.
• A damaged or defective product must be changed
or repaired by the manufacturer, a service person
or a comparable qualified person.
• Installation only under observance of the valid
guidelines specific to application and country
among others VDE 0.100.
• Never open one of the electrical operating agents
or plug any objects into them. Such procedures
signify a danger to life through electrical shock.
• Absolutely avoid contact between the product
and water or other liquids. For reasons of electrical
safety, the light may not be placed in contact with
water or other liquids or submerged in water.
• The product may not be changed or modified.
MAINTENANCE AND CLEANING
The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents. The light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.
DISPOSAL
The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household gar-
bage when it has reached the end of its lifecycle, but
rather take it to a disposal center. Your local officials
will provide you with information about collection
offices and their business hours.
ELEDN
Mounted luminaire/Recessed ceiling luminaire
ELEDN-40NW11P
ELEDN-40WW11P
ELEDN-40NW11PDD
ELEDN-40WW11PDD-ST
INTENDED USAGE
This product will only serve the purpose of illumination.
The light is only suitable for use in interiors, in dry, enclosed rooms.
SCOPE OF DELIVERY
1 x LED light
1 x converter with LED plug-connection.
1 x set of instructions for assembly, operation and safety
address | contact
A.L.S. GmbH
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: +49 (0) 75 42 93 44-0 | Fax.: +49 (0) 75 42 93 44-30
E-Mail: info@als.de | Web: www.als.de
White
EN
Version: 2019-10-28
