- Page 1 Quick Start Guide 00825-0100-3225, Rev AD May 2025 Rosemount ™ Toroidal Conductivity Sensors...
-
Page 2: Table Of Contents
The wetted sensor materials may not be compatible with process composition and operating conditions. Application compatibility is entirely the operator's responsibility. Contents Description and specifications....................3 Installation............................ 5 Calibration...........................15 Maintenance and troubleshooting..................21 Accessories..........................27 Return of materials........................28 www.Emerson.com... -
Page 3: Description And Specifications

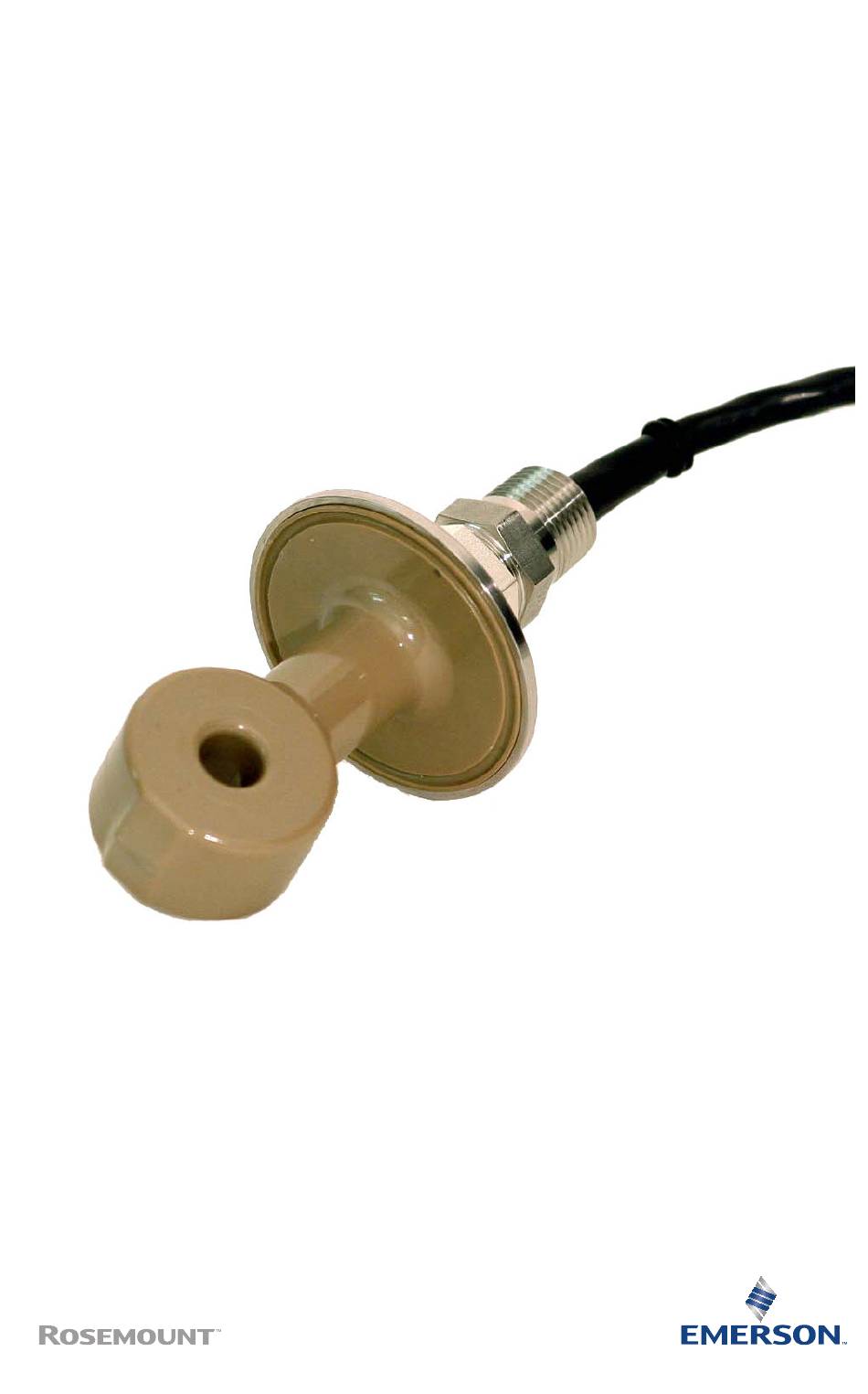

Description and specifications 1.1 Toroidal conductivity sensors Rosemount 225 Toroidal Conductivity Sensors are intended to be used in many pharmaceutical and food and beverage applications where a sanitary design is required. These corrosion and fouling resistant sensors are ideal for measuring the concentration of CIP solutions, detecting product/water interfaces, checking product quality, and monitoring eluents in chromatographic separations. - Page 4 Glass-filled PEEK 230 °F (110 °C) 200 psig (1480 kPa [abs]) Unfilled PEEK (meets 266 °F (130 °C) 21CFR177.2415 and 3A standard 74-06) Unfilled PEEK (meets USP Class VI standards) Unfilled Tefzel 230 °F (110 °C) www.Emerson.com...
-
Page 5: Installation
2. If there is no apparent damage, then unpack the container(s). 3. Ensure that all items shown on the packing list are present. If items are missing, then contact Emerson.com/global. 4. Save the shipping container and packaging. They can be used to return the instrument to the factory in case of damage. - Page 6 May 2025 Quick Start Guide Figure 2-1: Rosemount 225 dimensional drawing A. Swagelok connector 316 stainless steel ® B. Cap 316 stainless steel C. Inner diameter D. Outer diameter E. Molded housing Procedure 1. Mount the sensor in the pipe. 2. Mount the sensor in a vertical pipe run with flow from bottom to top.
- Page 7 Quick Start Guide May 2025 NOTICE For additional wiring information on this product, refer to Emerson.com/Rosemount-Liquid-Analysis-Wiring. Figure 2-2: Wire Functions A. Green: Receive B. Black: Receive common C. White: Drive D. Black: Drive common E. Green: Resistance Temperature Device (RTD) in F.
- Page 8 May 2025 Quick Start Guide Figure 2-3: Wiring Diagram Connecting Rosemount 225-54 Sensor to Rosemount 1056 and 56 Transmitters A. Clear (Outer Shield) B. White (RTD Sense) C. Green (RTD In) D. Black (Receive Common) E. Green (Receive) F. White (Drive) G.
- Page 9 J. White (Drive) K. Black (Drive Common) L. No Connection M. RTD RTN N. SNS O. RTD IN P. RTD SH Q. RCV COM R. RCV S. RC SH T. OUT SH U. DR SH V. DRV W. DRV COM www.Emerson.com...
- Page 10 May 2025 Quick Start Guide Figure 2-5: Wiring Diagram Connecting Rosemount 225-54 Sensor to Rosemount 1066 Transmitter A. Clear (RTD Return) B. White (RTD Sense) C. Green (RTD In) D. Black (Drive Common) E. White (Drive) F. Green (Receive) G. Black (Receive Common) H.
- Page 11 Quick Start Guide May 2025 Figure 2-6: Wiring Diagram Connecting Rosemount 225-56 Sensor to Rosemount 1066 Transmitter A. Clear (Outer Shield) B. Black (RTD Return) C. White (RTD Sense) D. Green (RTD In) E. Clear (RTD Shield) F. Black (Drive Common) G.
- Page 12 D. RTD sense E. RTD in F. Receive shield G. Receive common H. Receive I. Drive shield J. Drive common K. Drive L. Clear M. White N. Green O. Black P. Present in high temperature sensor (option -03) only www.Emerson.com...
- Page 13 Wire sensors point to point. For wiring at the transmitter end, refer to the appropriate transmitter wiring diagram. For interconnecting cable 23294-00, use the Rosemount 225-54 wiring diagram. For interconnecting cable 23294-04 and 23294-05, use the Rosemount 225-56 wiring diagram.
- Page 14 May 2025 Quick Start Guide Figure 2-9: Remote Junction Box (PN 23550-00) Dimensions A. Drill for 10/32 screw B. Junction box mounting holes pattern C. ¾-in. FNPT to sensor D. ¾-in. FNPT to transmitter www.Emerson.com...
-
Page 15: Calibration
3 Calibration 3.1 Sensor calibration The nominal cell constant of the Rosemount 225 sensor is 3.0/cm. The error in the cell constant after calibration can be +/- 10% of the nominal value. Wall effects (Figure 3-1), will likely make the error greater. - Page 16 Also, ensure that the orientation of the sensor with respect to the piping is exactly the same in the process and calibration vessels (see Figure 3-2). www.Emerson.com...
- Page 17 Quick Start Guide May 2025 Figure 3-2: Calibration Installation Orientation A. Sensor in process piping B. Flow C. Blank flange D. Pipe tee identical to process pipe tee E. Sensor being calibrated F. Standard solution 3. Rinse the sensor with water. www.Emerson.com...
- Page 18 Ensure air bubbles are not adhering to the sensor. An air bubble trapped in the toroid opening severely effects the reading. 5. To eliminate error in the cell constant, turn off automatic temperature compensation in the transmitter. 6. Adjust the transmitter reading to match the conductivity of the standard. www.Emerson.com...
- Page 19 3. Adjust the process sensor to match the conductivity measured by the referee instrument (see Figure 3-4). Figure 3-4: Calibration with a Referee Instrument Example A. Flow B. Sensor in process piping C. Sample valve D. Referee sensor in flow cell www.Emerson.com...
- Page 20 ±0.5 °C. 3. Place the sensors in the grab sample. Wait until the readings are stable before starting the calibration. 4. Adjust the reading from the process analyzer to match the conductivity measured by the referee sensor. www.Emerson.com...
-
Page 21: Maintenance And Troubleshooting
4.2 Troubleshoot 4.2.1 Off-scale reading Potential cause Wiring is incorrect. Recommended action Verify and correct wiring. Potential cause Temperature element is open or shorted. Recommended action Check temperature element for open or short circuits. Figure 4-1 Figure 4-2. www.Emerson.com... - Page 22 May 2025 Quick Start Guide Figure 4-1: Resistance Check for Rosemount 225-54 Disconnect leads from transmitter before measuring resistances. A. Receive B. Drive C. Resistance Temperature Device (RTD) D. Green E. Black F. White G. Clear Resistance between shield and any other wire: >40 MΩ...
- Page 23 Quick Start Guide May 2025 Figure 4-2: Resistance check for Rosemount 225-56 A. Receive B. Drive C. RTD D. Green E. Black F. Clear G. White Resistance between shield and any other wire: > 40 MΩ Potential cause Sensor is not in process stream.
- Page 24 Confirm that the sensor is fully submerged in the process stream. See Installation. Potential cause Cell constant is wrong. Wall effects are present. Recommended action Calibrate the sensor in place in the process piping. See Calibration. Potential cause Wrong temperature correction algorithm is being used. www.Emerson.com...
- Page 25 Use a Resistance Temperature Device (RTD) in a metal thermowell for temperature compensation. 4.2.4 Sluggish response Potential cause Sensor is installed in dead area in piping. Recommended action Move sensor to a location more representative of the process liquid. www.Emerson.com...
- Page 26 May 2025 Quick Start Guide Potential cause Slow temperature response to sudden changes in temperature. Recommended action Use a resistance temperature device in a metal thermowell for temperature compensation. www.Emerson.com...
-
Page 27: Accessories
Prepped, specify length, per ft. 23294-05 Shielded interconnecting cable with additional shield wire for -03 option. For use with Rosemount 1056, 1066- T, 56, and 5081T. Prepped, specify length, per ft. 9200276 Extension cable, unprepped (specify length) per ft. Spare Parts www.Emerson.com... -
Page 28: Return Of Materials
May 2025 Quick Start Guide 6 Return of materials For repair and warranty inquiries, contact Rosemount Customer Care to obtain a Return Material Authorization (RMA) number. Note Drain the sensor and thoroughly rinse it before shipping back to Emerson. www.Emerson.com... - Page 29 Quick Start Guide May 2025 www.Emerson.com...
- Page 30 May 2025 Quick Start Guide www.Emerson.com...
- Page 31 Quick Start Guide May 2025 www.Emerson.com...
- Page 32 2025 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
