Read this manual carefully before installing, operating or servicing this equipment. It's the responsibility
of the employer to ensure this manual is read by the operator. Please preserve this manual.
Operation and Maintenance Guide
TP15 Aluminium Pump Series
Descriptions
Teryair ½" Diaphragm Pump TeryPro Aluminium Santoprene NPT End
Port / Atex
Teryair ½" Diaphragm Pump TeryPro Aluminium PTFE-Santoprene NPT
End Port / Atex
Teryair ½" Diaphragm Pump TeryPro Aluminium Buna NPT End Port /
Atex
Teryair ½" Diaphragm Pump TeryPro Aluminium PTFE-Santoprene NPT
Center Horizontal + Center Vertical + End Port with Brass Silencer / Atex
Advertisement
Table of Contents
Related Manuals for Teryair TP15 Series
Summary of Contents for Teryair TP15 Series

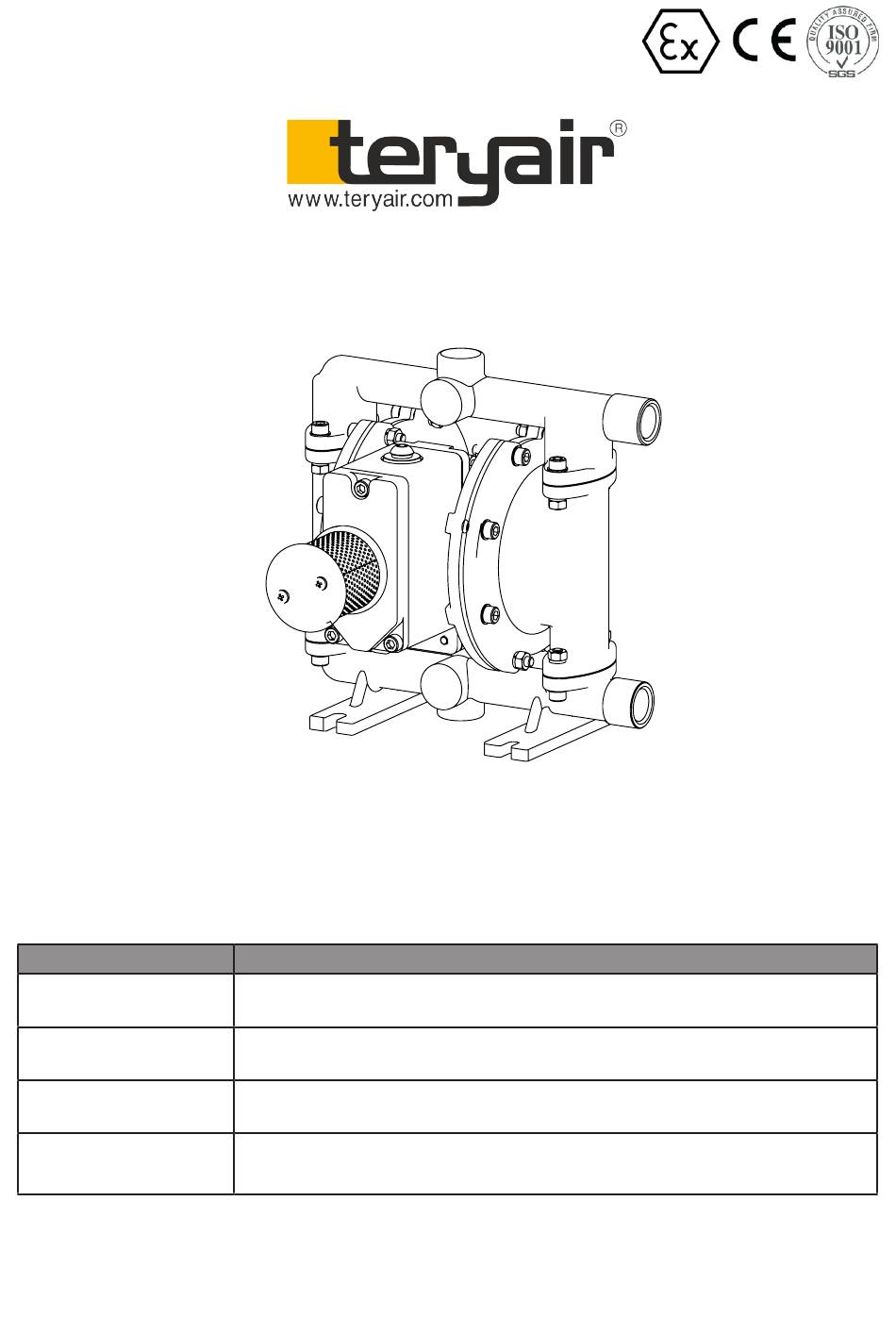

- Page 1 TP15-ASX-REX-AXX Port / Atex Teryair ½" Diaphragm Pump TeryPro Aluminium PTFE-Santoprene NPT TP15-ATS-REX-AXX End Port / Atex Teryair ½" Diaphragm Pump TeryPro Aluminium Buna NPT End Port / TP15-ABX-REX-AXX Atex Teryair ½” Diaphragm Pump TeryPro Aluminium PTFE-Santoprene NPT TP15-ATS-REX-AXO Center Horizontal + Center Vertical + End Port with Brass Silencer / Atex Read this manual carefully before installing, operating or servicing this equipment.
-
Page 2: Table Of Contents
Bill of Materials for TP15-ATS-REX-AXO Pumps Bill of Materials for TP15-ATS-REX-AXO Pumps Replacement & Repair Kits for TP15 ALU Series Pump Dimensional Data Eu Declaration Of Conformity Summery For The Atex Rating For Teryair Aodd Models Warranty Certificate FF-MM-704-REV - 04... -
Page 3: Pump Nomenclature
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 3 Pump Nomenclature Position Example Example: TP25-ABX-GEX-AXX Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Position 9 Position 10 Position 11 Speciality Sanitary Range Size Body... -
Page 4: Operating Instructions
Operating Instructions • The Teryair diaphragm pump generates a alternate stroking of the diaphragms against the fluid in the liquid chambers of the Pump. This reciprocatory action is responsible for the fluid being pumped. • It is possible to control the output of the pump by controlling the supply air pressure. -
Page 5: Caution: Temperature Limitations And Diaphragm Options
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 5 Caution: Temperature limitations and diaphragm options Good abrasion resistance. Low cost. Can handle mild acids and alkalis well. Excellent low cost alternative Santoprene to ptfe. Excellent suction capabilites Excellent general purpose diaphragm. -
Page 6: Suggested Site Selection And Installation Recommendations
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 6 Suggested site selection and installation recommendations Figure 1 Ensure that the suction head after installation is Location selection well within the pumps suction capabilities Pump location must be easily accessible with rea- sonable space around for maintenance operations. -
Page 7: Troubleshooting
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 7 Troubleshooting Serial No Description Causes Remedial Action Pump stops and Insufficient Air Pressure Check air pressure is as recommended will not start at the pump air inlet Air Filter Blocked Check if debris has clogged the inlet fil- ter on the FRL unit/pump inlet air valve ( some models have air filter on the air... -
Page 8: Maintenance
Follow the instructions clearly in “Disassembly and Reassembly” of the pump and in the troubleshooting section. Use genuine Teryair spares and if possible mention the serial number of the pump when ordering spares. Always replace elastomers as a set, eg diaphragms, balls and seats. - Page 9 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 9 3. Replacement of Shaft Seals Air Valve/ Center Section Disassembly 4. Replacement Of Secondary Shaft a) For removing the Seal (14) from Shaft Assembly Housing (1), first follow the steps a, b c & d from the diaphragm replacement.
-
Page 10: Re-Assembly
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 10 5. Replacement of Air Valve, Gasket, O-Rings of End Cap & Piston a. Unscrew Allen bolts (21) from shaft housing (1) and remove Air valve Assly (A) from housing (1). Now remove the gasket (22) from Air valve Assly (A). -
Page 11: Maximum Torque Specifications (Tp15 Series)
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 11 Maximum Torque Specifications (TP 15 Series) Description Of Part Torque Air Valve 5.1 N•m (45 in-lb) Air Chamber/Center Block 47.5 N•m (35 ft-lb) Outer Flanges, Rubber & PTFE, Excluding Stainless Steel Inner Pistons 106 N•m (78 ft-lb) Outer Flanges, Rubber &... -
Page 12: Exploded View For Tp15 Pump
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 12 Exploded View for TP 15 Pump For PTFE Models 24 25 TP15 ALU MODEL FF-MM-704-REV - 04... - Page 13 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 13 Bill of Materials for TP15-ASX- Pumps ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER NUMBER ITEM PART DESCRIPTION Air Valve Assembly-TP15/25 1679701 NUMBER 1671002 Air Valve Body-TP15/25 1861001 Shaft Housing Assembly-TP15 1671003 Air Valve Body Cover-TP15/25 1861001-1...
- Page 14 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 14 Bill of Materials for TP15-ABX- Pumps ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER NUMBER Shaft Housing Assembly-TP15 Air Valve Assembly-TP15/25 1861001 1679701 1861001-1 Centre Piece-TP15 1671002 Air Valve Body-TP15/25 1861001-2 Air Disc (L.H.)-TP15 1671003 Air Valve Body Cover-TP15/25...
- Page 15 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 15 Bill of Materials for TP15-ATS- Pumps ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER NUMBER Shaft Housing Assembly-TP15 Air Valve Assembly-TP15/25 1861001 1679701 1861001-1 Centre Piece-TP15 1671002 Air Valve Body-TP15/25 1861001-2 Air Disc (L.H.)-TP15 1671003 Air Valve Body Cover-TP15/25...
- Page 16 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 16 Bill of Materials for TP15-ATS-REX-AXO Pumps ITEM PART ITEM PART DESCRIPTION DESCRIPTION NUMBER NUMBER 1861001 Shaft Housing Assembly-TP15 1679701 Air Valve Assembly-TP15/25 Centre Piece-TP15 Air Valve Body-TP15/25 1861001-1 1671002 1861001-2 Air Disc (L.H.)-TP15 1671003 Air Valve Body Cover-TP15/25...
- Page 17 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 17 Bill of Materials for TP15-ATS-REX/RCX-AXB- Pump ITEM PART Repair Kit ITEM PART Repair Kit DESCRIPTION DESCRIPTION NUMBER 1869703-T NUMBER 1869703-T Shaft Housing 1671002 Air Valve Body-TP15/25 1861001 Assembly-TP15 Air Valve Body 1671003 Centre Piece-TP15 1861001-1...
-
Page 18: Dimensional Data
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 18 Replacement & Repair Kits for TP15 ALU Pump ITEM PART Replacement Kit Repair Kit Repair Kit Repair Kit DESCRIPTION NUMBER 1679702 1869701-S 1869701-B 1869701-T 1644101 Diaphragm-TP15/TC15 1644009B Diaphragm-TP15 1643604 Diaphragm (Full Stroke)-TP15/TC15 1864101 Backup Diaphragm (Full Stroke)-TP15/TC15 1644102... -
Page 19: Eu Declaration Of Conformity
Notified body to whom Technical file has logged with: - Technicka Inspekcia (Ref: 1354). DECLARATION: - TERYAIR EQUIPMENT PVT. LTD., declare that under our sole responsibility for the supply of the product defined above, the said product complies with all the applicable Directives, Regulations and all essential Health and Safety requirements applying to it. -
Page 20: Summery For The Atex Rating For Teryair Aodd Models
Operation and Maintenance Guide TP15 Aluminium Pump Series Page 20 SUMMERY FOR THE ATEX RATING FOR TERYAIR AODD MODELS Pump Series Wetted Materials Center Section Dipharagm Materials ATEX Rating Size Neoprene ll 2 GD Ex h IIC T6 Gb Ex h IIIC T85⁰C Db (IP65) - Page 21 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 21 SUMMERY FOR THE ATEX RATING FOR TERYAIR AODD MODELS Pump Series Wetted Materials Center Section Dipharagm Materials ATEX Rating Size Neoprene ll 2 GD Ex h IIC T6 Gb Ex h IIIC T85⁰C Db (IP65)
-
Page 22: Warranty Certificate
Teryair products or components. Dealer/End User shall have no right or remedy and Teryair shall have no liability or obligation under the warranty, if: (i) a Product is altered, changed, modified or tampered with in any way, (ii) a Product is damaged after deposit with the transporter for shipment; (iii) a Product is not properly preserved, packaged, stored, processed or handled after receipt;... - Page 23 Operation and Maintenance Guide TP15 Aluminium Pump Series Page 23 This page is intentionally Left blank. FF-MM-704-REV - 04...
