Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

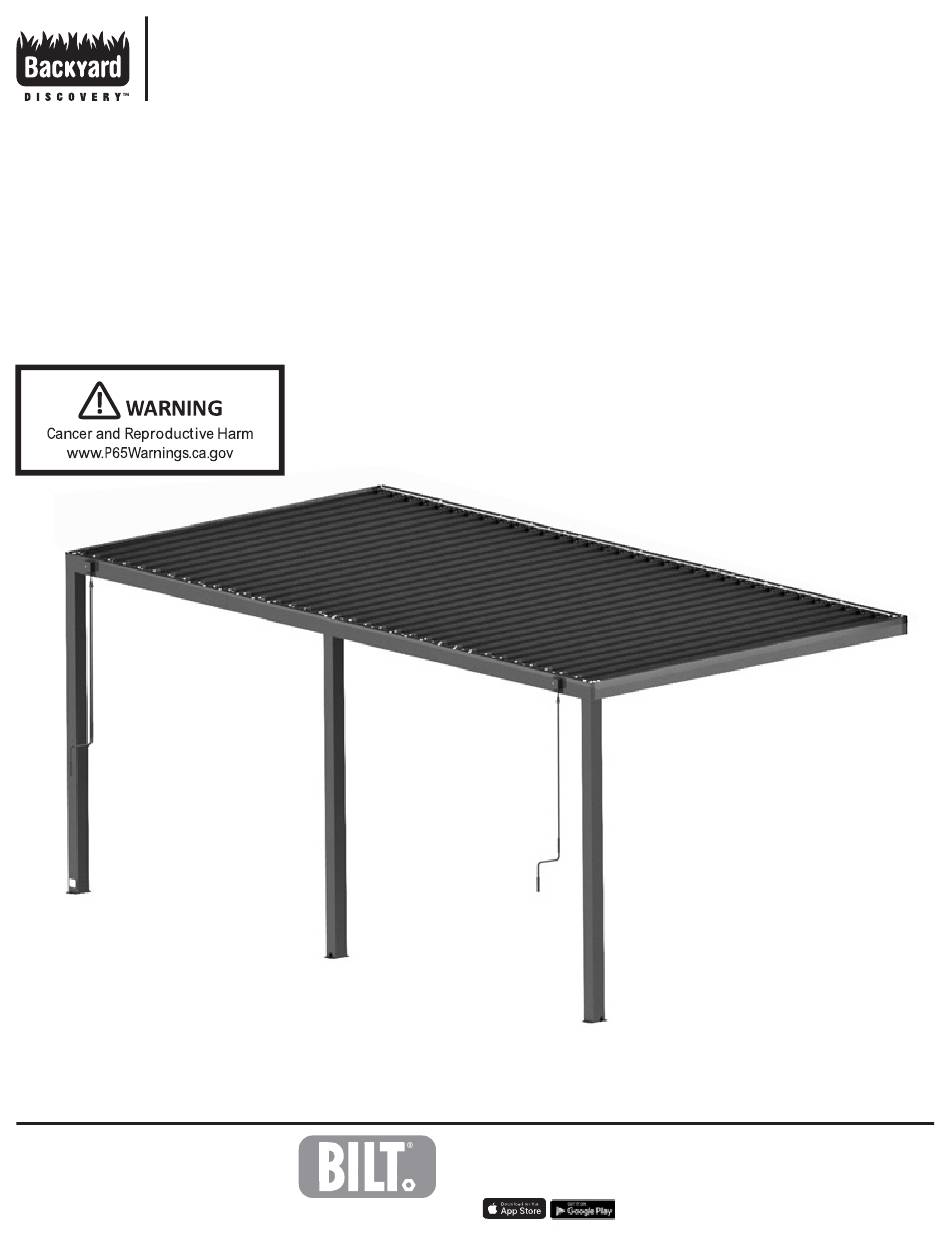

20x10 EVANSTON STEEL WALL-
MOUNTED LOUVERED PERGOLA
MODEL #: 2407114
For the most up to date assembly manual, to register your product, or to order
Please visit www.backyarddiscovery.com
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INS-2407114-A-20x10 EVANSTON STEEL WALL-MOUNTED LOUVERED PERGOLA 12-18-2024
Advertisement
Related Manuals for Backyard Discovery 2407114
Summary of Contents for Backyard Discovery 2407114
- Page 1 For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite www.backyarddiscovery.com EASY STEP-BY-STEP 3D INTERACTIVE INSTRUCTIONS DOWNLOAD THE FREE APP INS-2407114-A-20x10 EVANSTON STEEL WALL-MOUNTED LOUVERED PERGOLA 12-18-2024...
- Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure. • Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
- Page 3 OWNER'S MANUAL - ANCHORING LAYOUT HOUSE 5 7/8″ [149mm] 9′-5 1/16″ [2872mm] 9′-8 7/16″ [2958mm] 9′-11 13/16 ″ [3044mm]...
-
Page 7: Hardware Components
OWNER'S MANUAL - PARTS IDENTIFICATION HARDWARE COMPONENTS H101202 | TORX PAN HEAD 1/4-20x3/4 ASSY (x165) | 1/4-20x3/4 ASSY H100474 | WASHER FLAT H100497 | WASHER FLAT (x10) | 9x19 BLK (x15) | 17x30 BLK H101101 | TORX PAN HEAD (x2) | 1/4-20x3/4"... - Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION HARDWARE COMPONENTS H100147 | TORX BIT | RIGHT ANGLE H101114 | T-30 (x1) | DRILL ADAPTER (x1) H101100 | MAGNETIC DRIVER H101106 SOCKET DRIVER (x1) (x1) H100114 | TORX BIT (x1) | T-30...
- Page 9 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the parts and hardware. METAL PARTS: • Organize metal parts by the three-digit, alpha-numeric number stamped on each part (ex. P01). •...
- Page 10 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrench 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets 1/2" & 7/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet - Claw Hammer...
- Page 11 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
- Page 12 Determine which wall attachment type works best for your application. If unknown consult a licensed contractor. The recommended hardware below is provided. Backyard Discovery does not assume responsibility for any damages to your house. H101310 ATTACHING TO WALL WITH LAG SCREWS...
- Page 13 STEP 1 - WALL BRACKET LOCATION LAYOUT 1. DRAW A STRAIGHT 2. ALIGN THE BOTTOM OF T01 3. DRAW 6 CIRCLES 4. ALIGN T02 WITH T01 AND KEEP IT LEVEL BY USING A LINE 8' 0" [2438 mm] WITH THE STRAIGHT LINE ACCORDING TO HOLES IN 24"...
-
Page 83: Electrical Enclosure
PowerPort™ 9205413 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY EXTERIOR POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
