Manufactured by: Backyard
Discovery
3305 Airport Drive, Pittsburg,
KS 66762 800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone:
0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

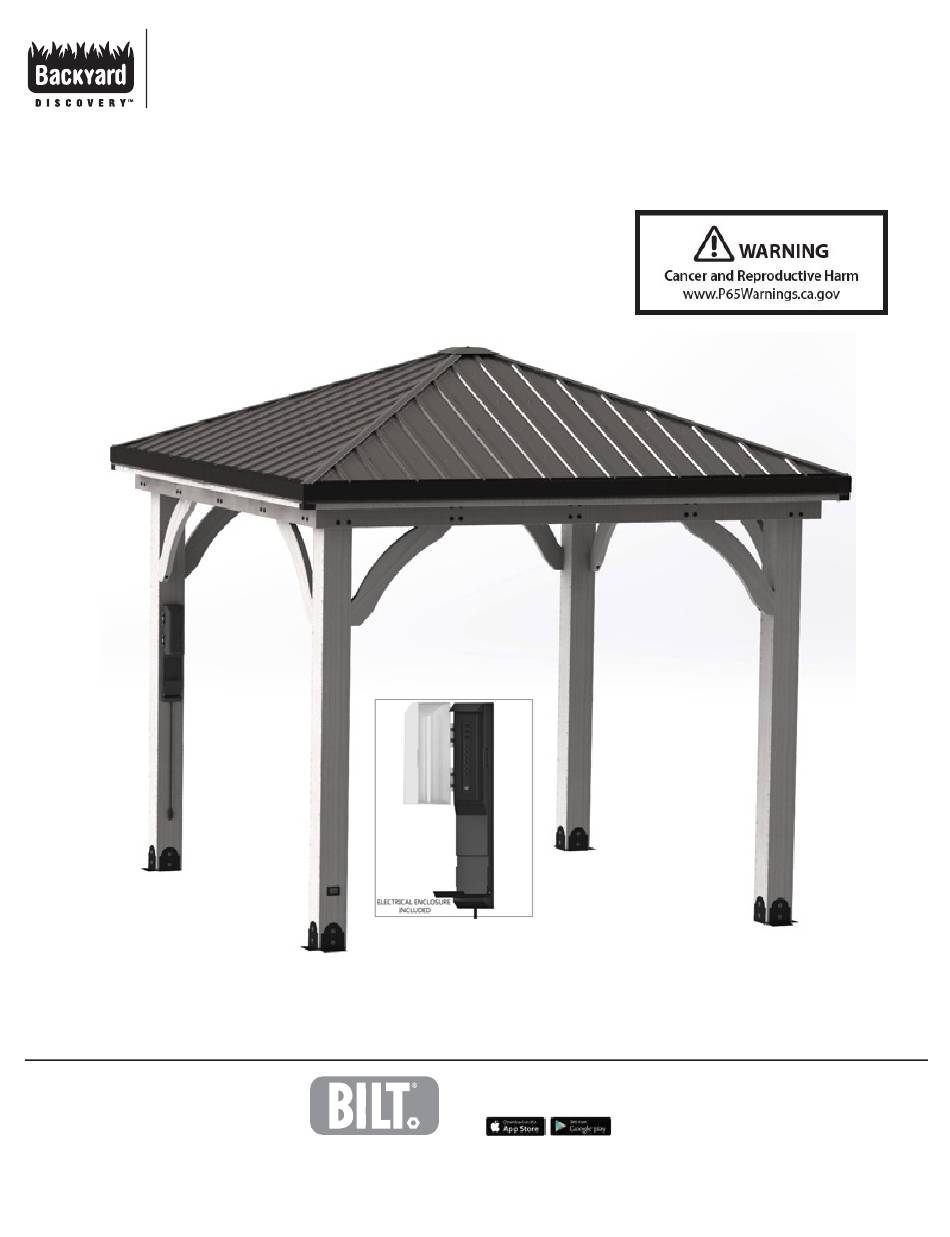

10x10 BARRINGTON GAZEBO
MODEL # : 2406131
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INS-2406131-A-10X10 BARRINGTON GAZEBO-ENG 9-24-2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Backyard Discovery 2406131
Summary of Contents for Backyard Discovery 2406131
- Page 1 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 10x10 BARRINGTON GAZEBO MODEL # : 2406131 Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite...
- Page 3 8'-4 1/16" 2541mm 7'-9 13/16" 2383mm 4 ANCHORS PER POST NOTE: DIMENSIONS ARE TO ANCHOR PLATES MOUNTED TO POSTS EXCEPT WHERE NOTED. 3 3/8" [86mm] DETAIL A...
- Page 6 Owner's Manual - Parts Identification Hardware Components H100147 | TORX BIT H101100 | MAGNETIC (x1) T-30 (x1) DRIVER H100764 | SCREW SETTER (x1) H100378 | BOLT WH BLK | 5/16 x 1 3/4 (x4) H100114 | TORX WRENCH (x1) | T-30 H100195 | BOLT WH BLK | 5/16 x 2 3/4...
- Page 7 Owner's Manual - Parts Identification Hardware Components H100385 | SCREW PFH BLK (x28) | 8 x 1 H100379 | T-NUT BLK H100460 | LAG SCREW WH BLK (x84) | 5/16 (x16) | 1/4 x 1 H100200 | SCREW PFH BLK (x16) | 8 x 1 1/2 H100398...
- Page 10 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: − Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). −...
- Page 11 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8" & 3/8" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver Rubber Mallet - Claw Hammer Tape Measure...
- Page 12 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
- Page 68 PowerPort™ 9205413 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
