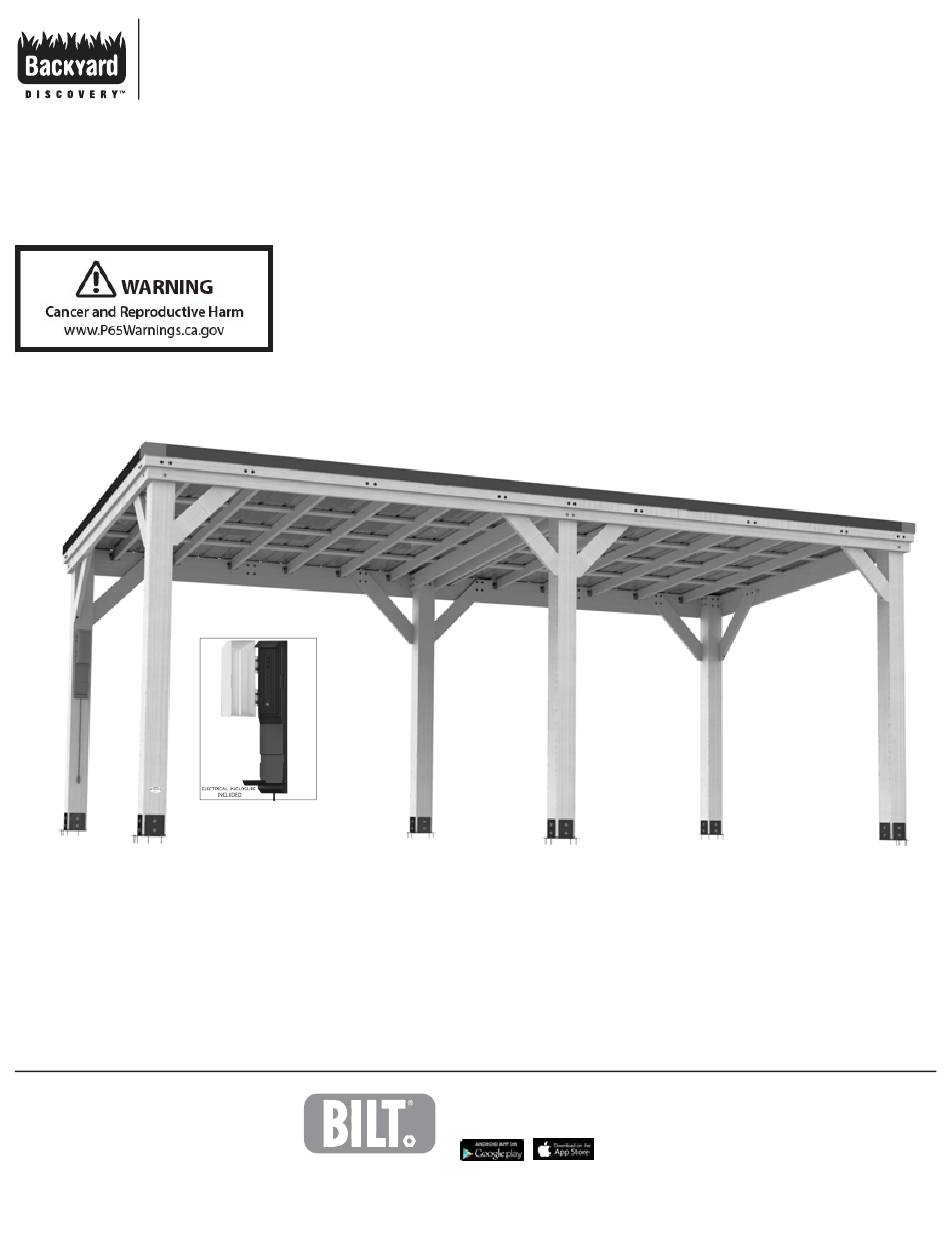

Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
24 12
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990
MODEL # : 2406025
Gazebo
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INS-2406025-A-ARCADIA GAZEBO-ENG 7-19-24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Backyard Discovery Arcadia 2406025
Summary of Contents for Backyard Discovery Arcadia 2406025
- Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 24 12 Gazebo MODEL # : 2406025 Please visit www.backyarddiscovery.com...
- Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings or concrete pad to attach your structure − Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
- Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 11'-1" 3386mm 10'-7" 3228mm NOTE: DIMENSIONS ARE TO ANCHOR PLATES MOUNTED TO POSTS EXCEPT WHERE NOTED 1 11/16" 43mm 3 3/8" METAL ANCHOR 86mm PLATES...
-
Page 8: Hardware Components
OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100120 | CONCRETE ANCHOR | 1/4x2 (x24) H100405 | WASHER LOCK EXT BLK H100198 | WASHER LOCK EXT BLK (x12) | 6x15 (x276) | 8x19 H100200 | SCREW PFH BLK (x24) | 8x1-1/2 H100653 | NUT LOCK BLK H100199 | WASHER LOCK EXT H100630 | WASHER FLAT BLK... - Page 9 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H101153 | BOLT WH BLK (x40) | 5/16x8-1/4 H100194 | BOLT WH BLK H101116 | SCREW TAPPING (x144) | 5/16x2-1/2 | 1/4 x 1 (x36) H101127 | BOLT WH BLK (x24) | 1/4x3-1/2 H100192 | NUT BARREL WH (x144) | 5/16 X 7/8 BLK...
- Page 11 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: − Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). −...
- Page 12 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver 3/8 &...
- Page 13 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
-
Page 76: Power Port
PowerPort™ 9205413 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
