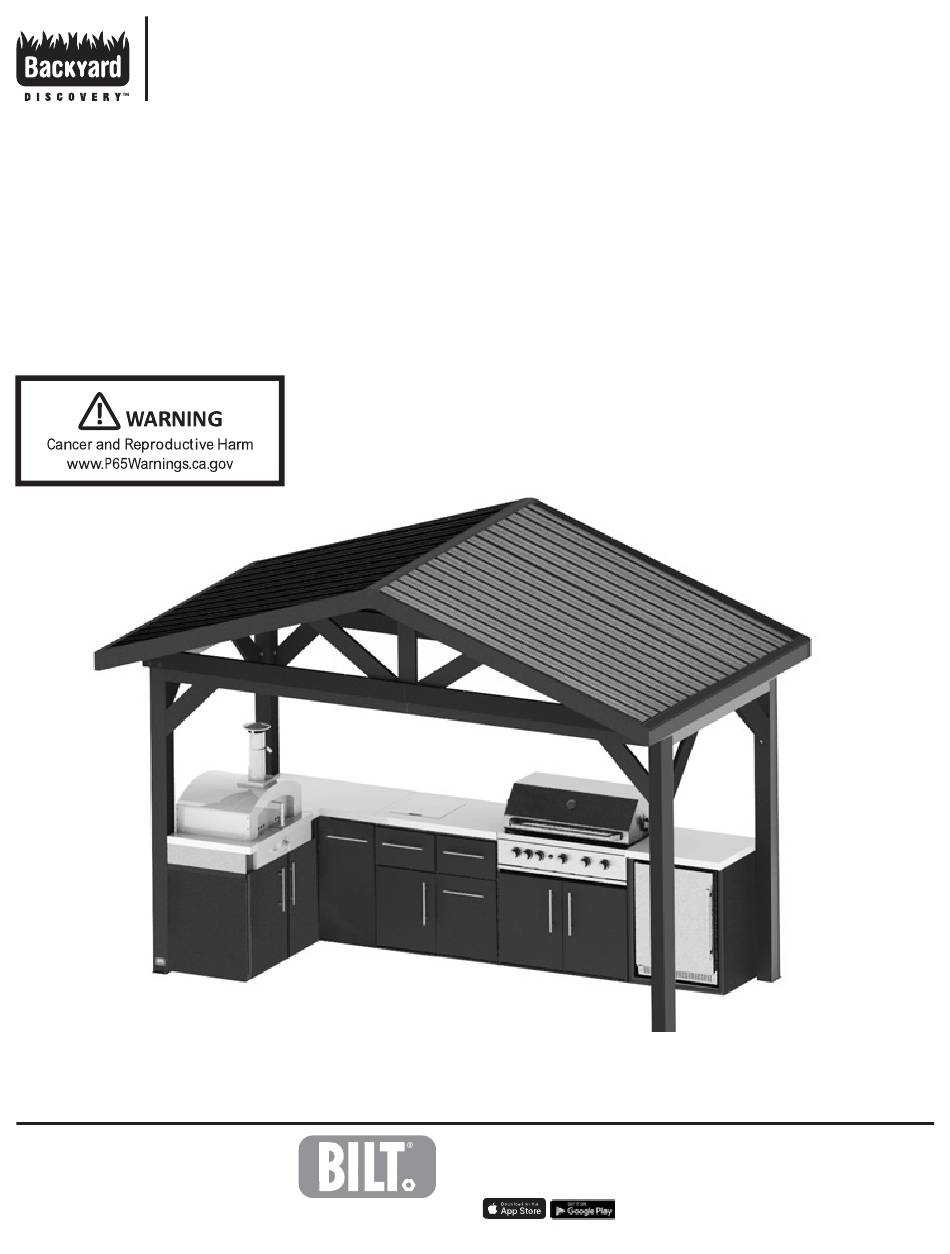

Page 1 Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite www.backyarddiscovery.com EASY STEP-BY-STEP 3D INTERACTIVE INSTRUCTIONS DOWNLOAD THE FREE APP INS-2404144-A-LANCASTER L-SHAPE OUTDOOR KITCHEN 11-25-2024...
Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings or concrete pad to attach your structure. • Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 5'-7 13/16" 1722mm 5'-1 11/16" 1567mm 4'-7 5/8" 1412mm 12'-10 7/16" 13'-5 1/16" 12'- 1/4" 12'-4 3/4" 12'-9 1/2" 3922mm 4091mm 3664mm 3779mm 3899mm 9/16" 15mm 4 3/4" 120mm 3 9/16" 90mm 6 1/8" 155mm...
Page 14 OWNER'S MANUAL - PARTS IDENTIFICATION HARDWARE COMPONENTS H101292 | TORX PAN HEAD (x24) | 1/4-20x13/32" BLK H101053 | STEEL WASHER H101202 | TORX PAN HEAD (x20) | 6x20 BLK (x392) | 1/4-20x3/4 ASSY H101185 | PHILLIPS FLAT HEAD (x60) 8-32x.5 BLK H101117 | SCREW WOODGRIP H101289...
Page 15 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the parts and hardware. METAL PARTS: • Organize metal parts by the three-digit, alpha-numeric number stamped on each part (ex. P01). •...
Page 16 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrench 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets 1/2" & 7/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet - Claw Hammer...
Page 17 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
Page 184 PowerPort™ 9205413 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY EXTERIOR POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
