Operator & Parts
Manual
®
KaiVac
1700 Series
1715 Serial Number 409-
1750 Serial Number 13409-
CE1750 Serial Number 497-
www.kaivac.com
© 2006-2016 Kaivac, Inc. All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monster Janitorial 1700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kaivac Monster Janitorial 1700 Series

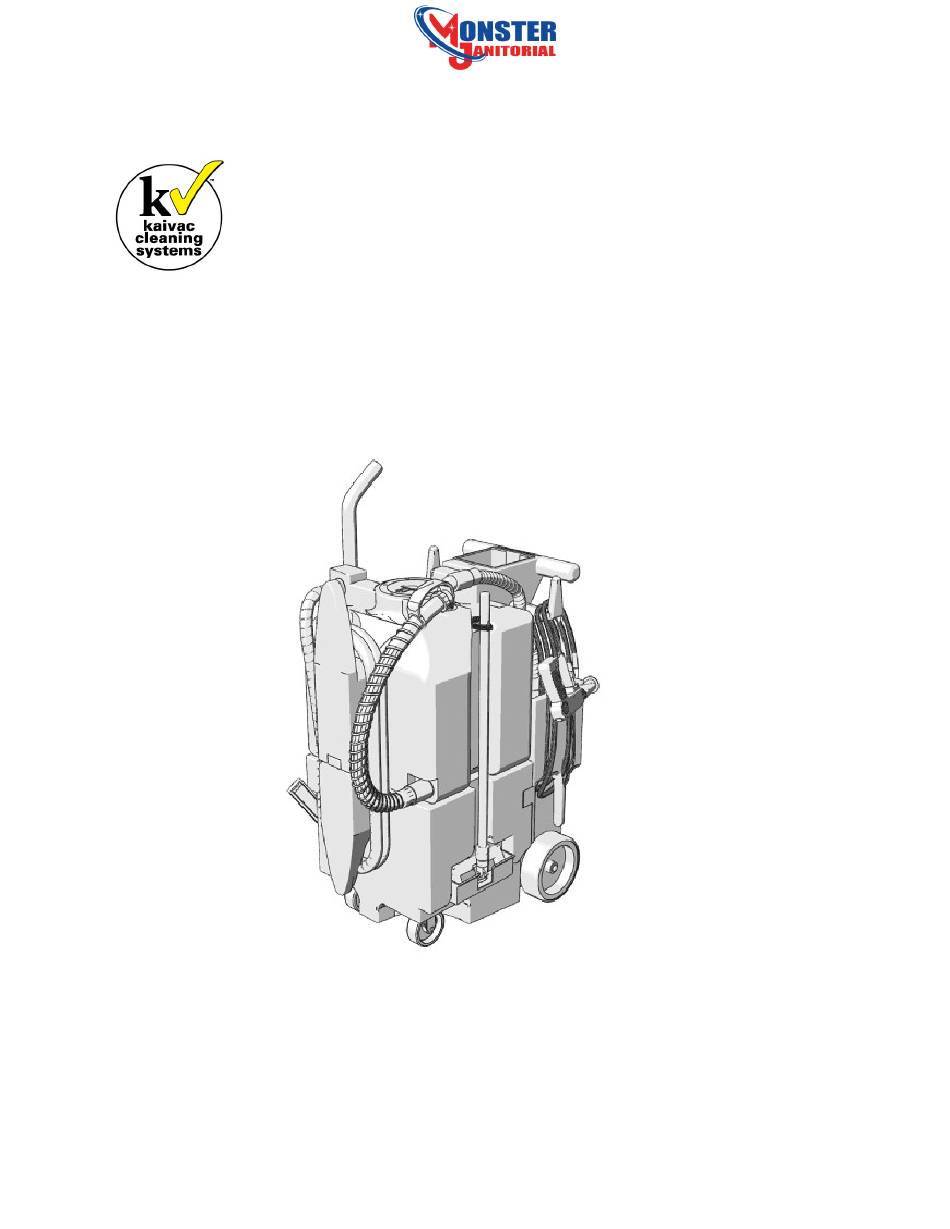

  • Page 1 CLICK TO ORDER PARTS shop.monsterjanitorial.com Operator & Parts Manual ® KaiVac 1700 Series 1715 Serial Number 409- 1750 Serial Number 13409- CE1750 Serial Number 497- www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved...
  • Page 2 080816 08/08/16 Modified the Safety Warnings to ETL-C requirements NOTE: Specifications and parts are subject to change without notice Kaivac, Inc. 401 S. Third Street Hamilton, OH 45011 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page i...
  • Page 3: Table Of Contents

    Kaivac Tool Arrangement ..................2-2 Preparing Your Kaivac For Use ................2-3 Vac Tank Cleanout Instructions ................2-4 Vac Tank Removal Instructions ................2-5 Operating your Kaivac using S-I-M-P-L-E Process ..........2-6 MAINTENANCE ......................3-1 Machine Maintenance..................... 3-1 Black Box Removal Instructions ................3-2 Troubleshooting ......................
  • Page 4: Getting Started

    This warranty does not apply to return freight costs, damage or defect caused by accident, negligence, misuse, fire or repair done by anyone other than a Kaivac authorized repair center. In no event shall Kaivac, Inc. be liable for incidental or consequential damages, or any damages to persons or property.
  • Page 5: Warranty Registration Form

    Hallway Cleaning Thank you for registering for our warranty program. Please return completed forms to: Kaivac, Inc. 401 S. Third Street Hamilton, OH 45011 Or Fax to: (513) 887-4601 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 1-2...
  • Page 6: Safety Precautions

     Use extra care when cleaning on stairs.  Keep the cord away from heated surfaces.  Do not spray liquid from the Kaivac onto electrical outlets or on any electrical devices.  Turn off the unit before unplugging.  Do not pull on the cord to unplug. Grasp the plug at the outlet and pull.
  • Page 7  Follow the maintenance instructions specified in the manual. Personal Protective Equipment (PPE): It is recommended to wear proper personal protective equipment as required by the chemical product label instructions used in conjunction with the Kaivac. FOR INDOOR USE ONLY INTENDED FOR COMMERCIAL USE www.kaivac.com...
  • Page 8: Operation

    © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 2-1...
  • Page 9: Kaivac Tool Arrangement

    Squeegee Brush (VBRUSH) Bottom View Overhead View Front Vac Hose (VH25) Slinky Hose (VHST20) Left Right Window Squeegee (CAA06) KaiDrain (CVS14) Metering Tips HEPA Cover (MTIPSNEW) Placards (PLCRD) (HCOVER) www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 2-2...
  • Page 10 If damage is found, do not continue until proper repairs are completed. 6. Plug in machine and test GFCI (Ground Fault Circuit Interrupter) to ensure it is working properly. You are now ready. Page 2-3 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 11: Vac Tank Cleanout Instructions

    After caster wheels have been locked, tip the machine to the left and slightly forward to allow the remaining water to drain. Re-attach dump hose and unlock wheels. www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 2-4...
  • Page 12: Vac Tank Removal Instructions

    (2 locations - one on each side) Slightly pull the bottom section of the vac tank out while tipping it backwards. Lift and pull the vac tank away from the unit. Page 2-5 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 13 Chemicals nject Fan Spray Fan Spray LOW Pressure Mode Manually brush anual heavily soiled areas Brush Fresh Water ressure wash and Fan Spray rinse HIGH Pressure Mode xtract Page 2-6 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 14: Maintenance

    Use a wire brush or coarse brush with acid cleaner or other to remove residue from threads on the coupling and coupling nut. Apply grease when done. HEPA Filter  Replace every 3-6 months depending on use www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-1...
  • Page 15: Black Box Removal Instructions

    Next, remove the 2 axle strap wing bolts machine. on either side of the machine behind the wheels. Slide assembly away from water www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-2...
  • Page 16: Troubleshooting

    Moisture from nozzle Water in blow hose Dry blow line Blow Dry System Suction, not blow action Vacuum hose connected Reconnect to vac motor exhaust hose to vac tank www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-3...
  • Page 17 Remove and rein- stall Kink in Chemical line Replace Chemical line www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-4...
  • Page 18 Replace Premature blade wear Squeegee wheels worn Check wheels for wear / replace Sucks to the floor too Squeegee wheels worn Check wheels for wear / tightly replace Page 3-5 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 19 3.0 MAINTENANCE VACUUM DIAGRAM www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-6...
  • Page 20: Pump Diagram

    3.0 MAINTENANCE 3.4 PUMP DIAGRAM www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-7...
  • Page 21: Electrical Diagram

    3.0 MAINTENANCE 3.4 ELECTRICAL DIAGRAM Page 3-8 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 22: Machine Diagrams

    3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS Page 3-9 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 23 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS Page 3-10 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 24 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS Page 3-11 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 25 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-12...
  • Page 26 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS Page 3-13 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 27 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS Page 3-14 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 28 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS HEPA HOUSING ASSEMBLY (HEPAHA2) PART NO. PART DESCRIPTION HCOVER HEPA COVER FKEEP2 HEPA FILTER KEEPER HEPA HEPA FILTER HEPAH2 HEPA FILTER HOUSING Page 3-15 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 29 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-16...
  • Page 30 3.0 MAINTENANCE 3.4 MACHINE DIAGRAMS Page 3-17 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 31: Parts List

    CSS147 - MALE SNAP 18-8 SS 8-32 X 1/2 CSS145 - BRASS INSERT 8-32--21/64 LONG GR2 - KV LOGO STICKER NFSIL - NFSI LABEL FLAGLAB - ASSEMBLED IN AMERICA FLAG LABEL Page 3-18 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 32 VMA1700R- HE 120V VMA 1700 VMASM240V - 1750 VAC MOTOR ASSEMBLY 240V VAC LID, JUG HOLDER ASSEM (VLJHA) VLJH - VAC LID , JUG HOLDER HGAS - HEPA BLOW COVER GASKET Page 3-19 www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136...
  • Page 33 CPS68 - 90 DEG. 1/8 NPT MALE X CPS65 - 1/2 IN CLAMP SPH34 - SWITCH PANEL HOSE 34 IN SPH6 - 6 INCH 1/4 NYLON HOSE SPH14 - SWITCH PANAL HOSE 14 INCH www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-20...
  • Page 34 UFH - UNIVERSAL FILL HOSE SUBGAKW - PRESSURE GUN GREEN DOT MTIPSNEW - METERING TIP PACK CHCAPA - CHEM CAP W/SAFETY CHECK VALVE AND SCREEN 1700ACC - 1700 SERIES ACCESSORY KIT www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-21...
  • Page 35 MANUAL1750 - MANUAL FOR 1700 SERIES KYQS - QUICK START CD 1700 SERIES KTDVD - KAITUTOR TRAINING DVD DISK PLCRD - PLACARD FOR 1200 1700 2100 UNITS STF - SMART TOWEL FLYER www.kaivac.com © 2006-2016 Kaivac, Inc. All Rights Reserved Phone: 1-800-287-1136 Page 3-22...
