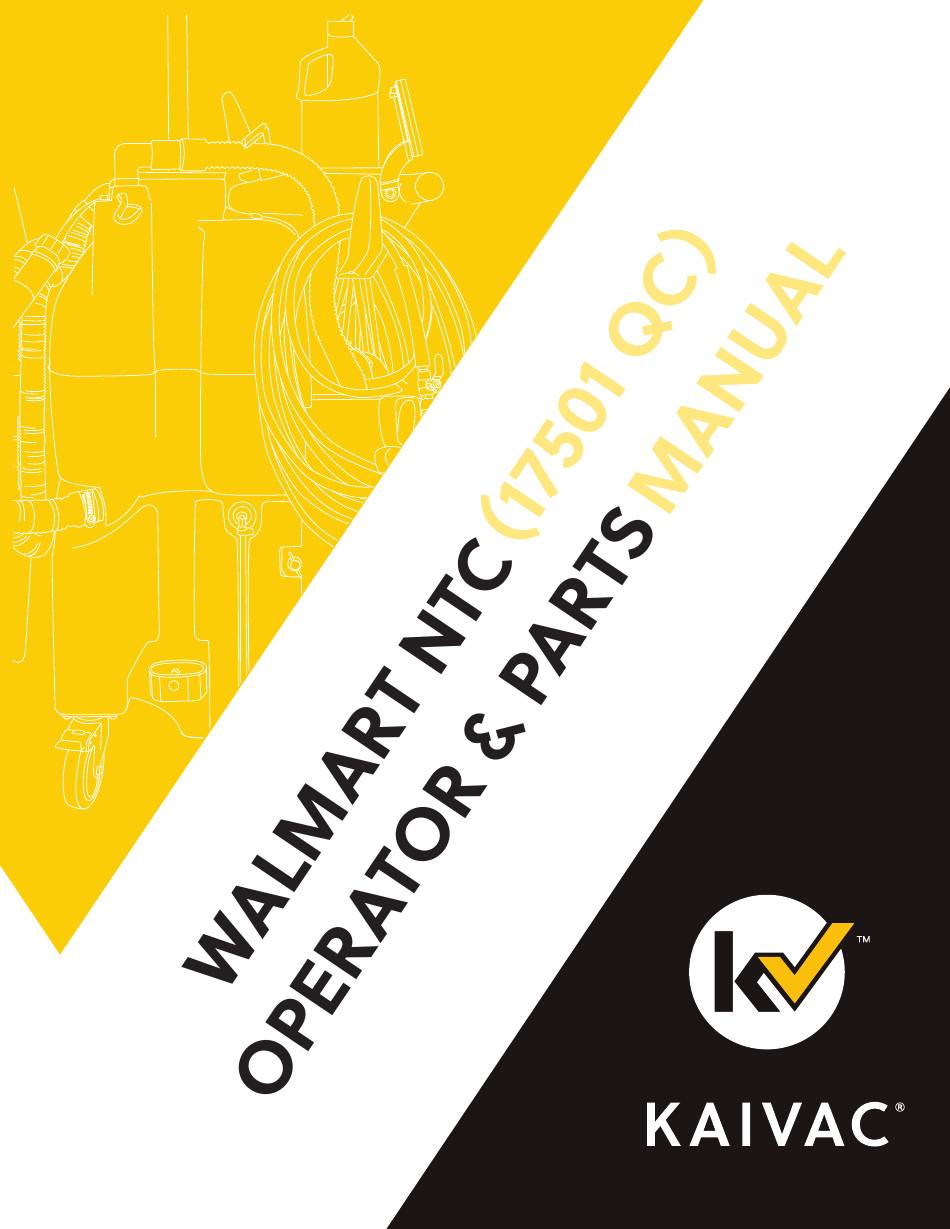

- Page 1 P/N: MANUAL17WALN ©2022 Kaivac, Inc. All rights reserved www.kaivac.com...
- Page 3 Release No. Date Revision Description 10/23/20 Initial design/release of MANUAL17WALN 01/25/2022 Battery Information Update NOTE: Specifications and parts are subject to change without notice Kaivac, Inc. 2680 Van Hook Ave. Hamilton, OH 45015 www.kaivac.com ©2021Kaivac, Inc. All Rights Reserved...
-
Page 4: Table Of Contents
& p peRAtoR ARts AnUAL AbLe ontents 1.0 Getting Started ...........................5 RodUCt dentifiCAtion ...........................5 ARRAnty egistRAtion ......................6 Afety ReCAUtions AtteRy nits ) .....................7 Afety ReCAUtions AtteRy peRAted ontinUed ............................8 AtteRy nfoRMAtion ........................9 iMited ARRAnty RoteCtion ) ....................10 iMited ARRAnty RoteCtion ontinUed 2.0 Assembly ............................11... -
Page 5: 1.0 Getting Started
1.2 W ARRAnty egistRAtion Thank you for purchasing a Kaivac product. Please take a few moments to register your product at kaivac.com/warranty. Why register? • Ensure your warranty coverage • Simplify warranty service in the future with your information on file •... -
Page 6: Afety Recautions Attery Nits Nly
DO NOT charge batteries outdoors. • DO NOT attempt to repair, service or modify the batteries or charger. Contact Kaivac Technical Support with any issues. • DO NOT short-circuit the battery or charger terminals with conductive items such as paper clips. This can deliver high current, resulting in heat and fire. -
Page 7: Recautions
This product comes with a grounded attachable extension cord. If damaged, replace with Kaivac® (OEM) cord, or if necessary an equivalent cord rated 120V, 15 amps, 3-wire, 14 GA. This cord must be attached and mechanically secured using the provided cord connector to use the equipment. -
Page 8: Attery Nformation
Fully Discharge vs. Partial Discharge and the Effect on Battery Cycles: Unlike lead acid batteries typically used in auto scrubber, the Kaivac Battery is not damaged by fully discharging. The BMS (Battery Management System) has a cutoff voltage of 30V which protects the Battery from experi- encing full discharge. -
Page 9: Imited Arranty Rotection Lan
• 1 year on labor/charger for batteries • 2 years on battery All Kaivac replacement parts are guaranteed for 90 days from the date of delivery. Normal wear items such as wheels, hoses, seals, gaskets, cords, casters, squeegees GFCI are excluded from warranty coverage. -
Page 10: L Imited Warranty P Rotection P Lan (C Ontinued )
This warranty does not apply to return freight costs, damage or defect caused by accident, negligence, misuse, fire or repair done by anyone other than a Kaivac authorized repair center. In no event shall Kaivac, Inc. be liable for incidental or consequential damages, or any damages to persons or property. -
Page 11: Arrangement
(SUBGAKW) (KTWALN) Universal NTC Accessory Bin (UBIN) Broom and Dustpan Vac Hose (SRK) 1700 Series: (FS35) Universal Fill Hose (UFH) KaiDrain (CVS14) Window Squeegee (CAA06) Pressure Hose (PH45) www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved... -
Page 12: Attery U Se
2.0 Assembly 2.2 b AtteRy The bracket mounted on the Lower Power Pack onto Black Box is where the Power bracket slide, lowering it Pack is mounted. down into place. The Charging Port location for the Power Pack is pictured below. -
Page 13: Reparation Or Se
If using a cleaning product that foams, use a foam inhibitor to cut excess. Pour 2 capfuls of inhibitor in the Vac Hose with Vac running to coat inside of Hose. www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved... -
Page 14: Reparation Or Se Ontinued )
2.0 Assembly 2.3 p RepeRAtion ontinUed Attach Vacwand to Vachose as shown above. The Vachose is located on side of machine as shown. Ensure elbow hose is connected at top of machine. *DO NOT DISCONNECT AND DO NOT USE AS VACCUM* Pinpoint Spray Press. -
Page 15: Machine Maintenance
Use a wire or coarse brush with acid cleaner to remove residue from threads on the coupling and coupling nut. Apply grease when done. HEPA Filter • Replace every 3-6 months depending on use. www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved... -
Page 16: D Iagram
3.0 Maintenance 3.2 v ACUUM iAgRAM INTAKE AT VACUUM WAND VACUUM HOSE FLOAT SWITCH VACUUM TANK 3-STAGE VACUUM EXHAUST HEPA FILTER BLACK BOX COMPARTMENT Customer/Technical Support P a g e ǀ 1-800-287-1136... -
Page 17: Ump D Iagram
BOTTLE A BOTTLE B CHEMICAL INJECTOR W/ WATER TANK CHECK VALVE PRESSURE HOSE PULSE HOSE PRESSURE HOSE MINI BALL VALVE SPRAY NOZZLE UNLOADER SPRAY GUN PUMP BLACK BOX COMPARTMENT www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved... -
Page 18: Q Uick C Hange P Ower P Ack E Lectrical D Iagram
3.0 Maintenance 3.4 Q UiCk hAnge oWeR LeCtRiCAL iAgRAM CHARGE IND. CHARGE IND. Red + Red+ Orange + Orange + BATTERY PACK BATTERY PACK 36V DC 36 VDC Red + Black - Red+ Black - Red + Black - Red + Black - Red + Black -... -
Page 19: Roubleshooting
Moisture from exhaust Water in blow hose Dry blow line Blow Dry System Suction, not blow action Vacuum hose connected to vac tank Reconnect to vac motor exhaust hose www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved... -
Page 20: Roubleshooting Ontinued )
4.0 Troubleshooting and Upkeep 4.2 t RoUbLeshooting CAUTION: Always unplug machine before lifting electric cover assembly. AREA PROBLEM POSSIBLE CAUSE SOLUTION Out of water Fill water tank Gun nozzle plugged Remove orifice with Allen wrench and clean Air in pump (vapor lock) Use power prime technique Gun orifice missing Replace orifice... - Page 21 Brass ring worn Replace Premature blade wear Squeegee wheels worn Check wheels for wear/ replace Sucks to the floor too Squeegee wheels worn Check wheels for wear/ tightly replace www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved...
-
Page 22: Roubleshooting Ips
2. Cleaning Chemicals may be producing too much foam. Use correct Chemicals. • Other Issues? Contact Technical Support Phone: United States and Canada: 1-800-287-1136 International: 1-513-887-4600 Email: info@kaivac.com For Technical Support Contact Form go to: https://www.kaivac.com/contactus.php and choose Technical Support tab. 4.5 R epLACeMent onthLy The following tasks should be performed monthly to keep your system operating at peak performance. -
Page 23: 17501 Qc
MUSHROOM FILTER CSS142 3/8 IN BRASS HOSE BARB CSS158 90 DEG BRASS 3/8 NPT X 1/2 HOSE SUBSS4 4 IN SNAP AND STRAP SUBSS6 6 IN SNAP AND STRAP www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved... - Page 24 5.0 Parts Diagrams and Specifications 5.3 QC p oWeR LACk sseMbLy [p/n: bbA17501QCW] 9 10 PART NO. PART DESCRIPTION CSS08 5/16-18 U-NUT SPADCB3 SWCH PNL ASSEM DUAL CHEM BATT 500PSI ARM ETL BBRAK BIN MAIN SUPPORT BRACKET CSS17A 8 SST SCREW 3/4 CSS07 5/16-18 X 1 HEX HEAD PA217B3E...
-
Page 25: Q Uick C Hange Ntc S Ingle C Hemical B Attery S Witch P Late A Ssembly
3 WAY BRASS VALVE WITH VITON SEAL(INCLUDES KNOB) CPS68 90 DEG 1/8 NPT M X 1/4 BARB CPS65 1/2 IN CLAMP SPH28 SWITCH PANEL HOSE 28 IN SPH9 SWITCH PANEL HOSE 9 IN www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved... -
Page 26: 17501Qcbatt Etl P 1700
5.0 Parts Diagrams and Specifications 5.6 17501QCbAtt etL p sseMbLy [p/n: pA217b3e] PART NO. PART DESCRIPTION P217AMB PUMP SERIES 217V-36/E-52260-2 CSS08 5/16-18 U-NUT WL1750 WATER LINE FOR 1750 RL1750 RETURN LINE FOR 1750 5.7 1700 v otoR sseMbLy [p/n: vMA1700b3e] PART NO. -
Page 27: Hepa A Ssembly
5.8 hepA A sseMbLy [p/n: hepAhA2] PART NO. PART DESCRIPTION HEPA HEPA FILTER FKEEP2 HEPA FILTER KEEPER HCOVER HEPA COVER www.kaivac.com P a g e ǀ ©2021 Kaivac, Inc. All Rights Reserved...
