Mirolin MADISON 3 Installation Instructions And Owner's Manual

SH3L/R, SH4L/R, SH4LS/RS - ONE PIECE ACRYLIC SHOWER STALL
SH33L/R, SH43L/R, SH43LS/RS - THREE PIECE ACRYLIC SHOWER STALL
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
Important: Mirolin Acrylic Showers are carefully inspected
and packed for shipment. You should check your unit and if
there are any problems contact your dealer before
installation. Protect the shower from dirt and damage by
leaving the polyethylene protective film in place until
installation and other related construction are complete.
Follow Local Building Codes.
Tools and Materials Required
Tools: Tape Measure, Electric Drill, Drill Bit (3/16"), Level,
and Caulking Gun
Materials: Mildew Resistant Silicone Bathroom Caulking,
Drywall Screws and Shims (if required).
Caution:
Assembly and installation of this shower unit requires
2 persons.
General Installation Notes
Note: Dimensions are clear openings. Refer to specification
sheet for dimensions of shower unit and the chart below.
The Shower is to fit into formed recess as shown in
"
Figure 1 and Figure 2.
Clear opening is required with the flange outside of the
"
opening:
Framing
ROUGH IN
A
DIMENSIONS:
SH3 88" X 38" 88"
SH33 85 " X 38" 85 "
SH4 88 ½ " X 51" 88 ½"
SH43 85 ½" X 51" 85 ½"
A
B
G
E
C
©
2018 Mirolin Industries Corp.
MADISON 3
READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION
PLEASE RECORD THE SERIAL NUMBER _________ OF YOUR SHOWER
SAVE THIS MANUAL FOR FUTURE REFERENCE
B C
86 ½ " 38"
83 ½ " 38"
87" 51"
84" 51"
F
D

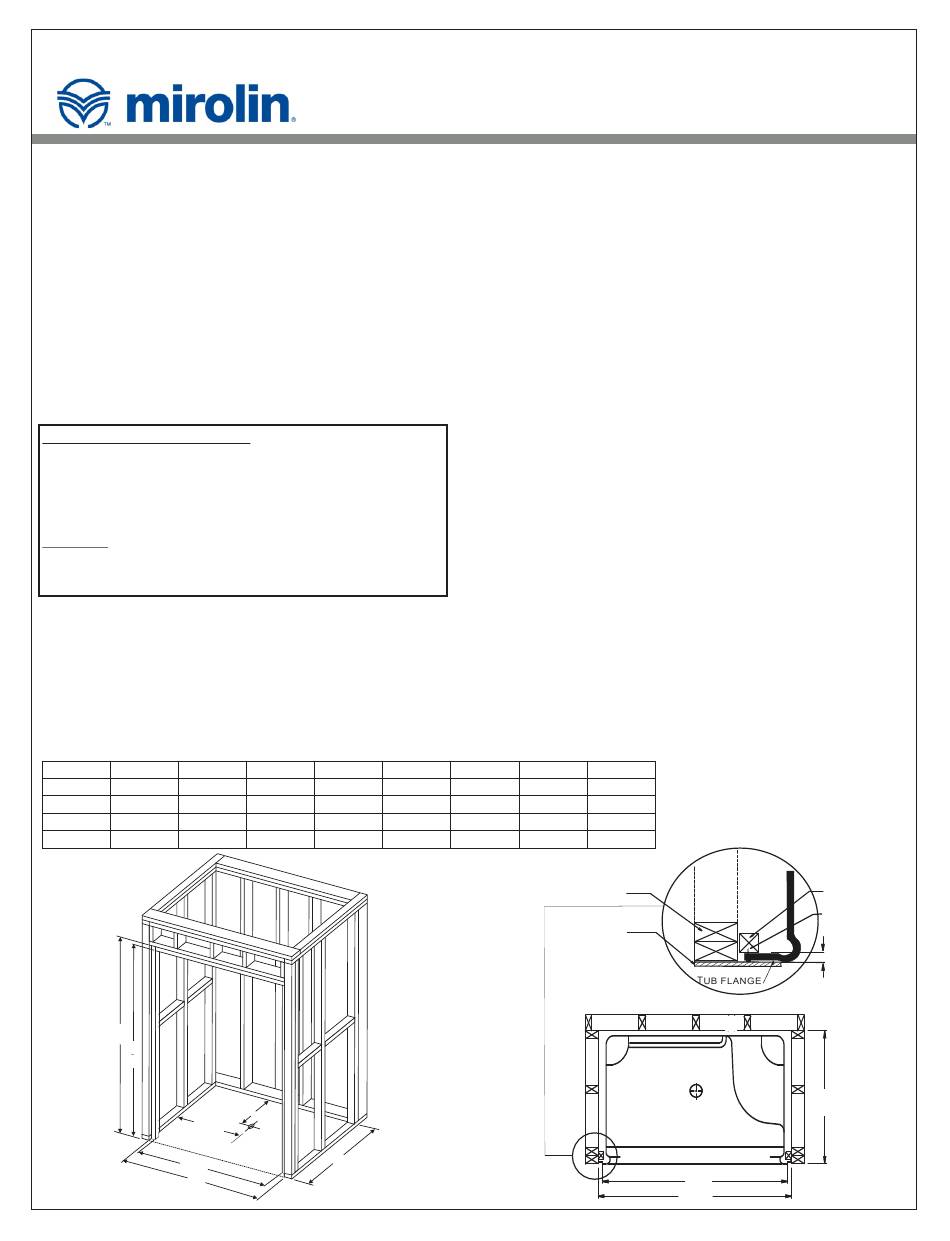

FIGURE 1, FIGURE 2
LAYOUT DIMENSIONS
TM MADISON 4
,
Inside dimension of the studded alcove are to be as
"
specified in Figure 1.
Follow Figure 2 as specified to ensure width is E"
"
between the 2" x 2" recessed studs. (See enlarged
detail.)
3-Piece Units
To facilitate moving through door ways 3-piece units
"
may be taken apart.
On the 3-piece units remove the 2 - 2"x2" wood blocks
"
on the side flange before installation. They are for
shipping only.
Shimming May Be Required
The unit will rest on the front edge and the two legs at the
"
rear of the unit. Shims may be required to level the
shower to ensure adequate drainage. Insert the bottom
section in the alcove and shim accordingly. Then
remove and assemble as per instructions.
The shower is fastened in place using dry wall screws.
"
Holes are to be drilled in the flange on both sides and
across the top. The holes are to be drilled by the installer,
installation illustrated in figures 3 and 3A.
If there is a gap at the seam on the front post, then shim
"
the flange as illustrated in Figure 3B.
D E F
35" 35" 16"
35" 35" 16"
36" 48" 17"
36" 48" 17"
mirolin.com
TM
G
19"
19"
25 ½ "
25 ½ "
2" x 4"
WOOD BLOCK
DRYWALL
E
C
2" X 2"
WOOD BLOCK
DRYWALL
SCREW
3/8"
D
1
