Mirolin BA604TL/R Installation Instructions And Owner's Manual

BELAIRE SECTIONAL - DOME LESS TUB SHOWER
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION
PLEASE RECORD THE SERIAL NUMBER _________ OF YOUR TUB SHOWER AND SAVE THIS
Important: The Acrylic Tub Shower is carefully inspected and
packed for shipment. You should check your unit and if there are
any problems, contact your dealer before installation.
Protect the tub and walls from dirt and damage by leaving the
polyethylene protective film in place until installation and other
related construction are complete.
Follow Local Building Codes.

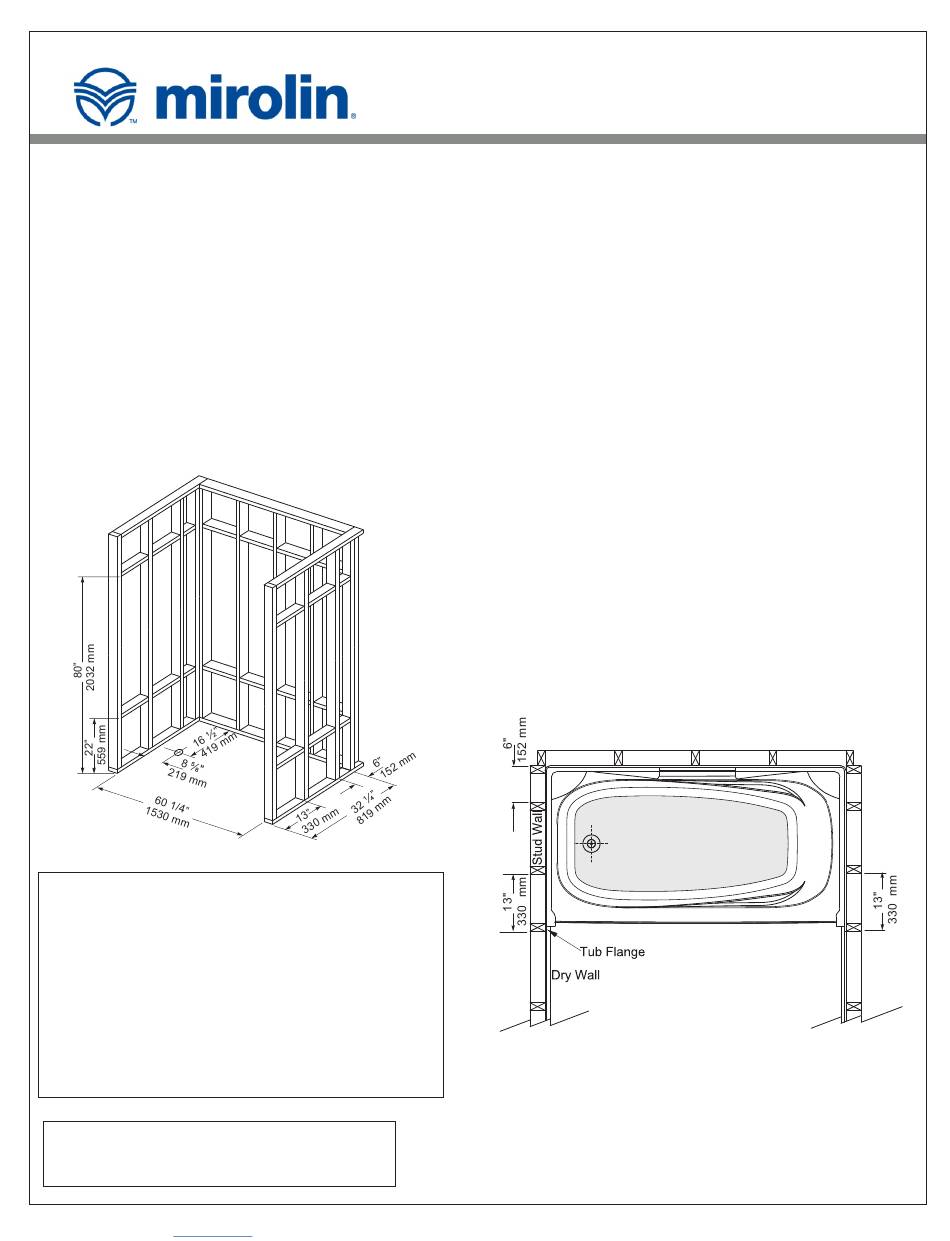

FIGURE 1
LAYOUT DIMENSIONS
TOOLS AND MATERIALS REQUIRED
Tools: Tape Measure, Electric Drill, Drill Bit (3/16"), Level, Hole
Saw and Caulking Gun
Materials: Mildew Resistant Silicone Bathroom Caulking,
Drywall Screws and Shims (if required).
CAUTION:
To cut plumbing fixture openings on the tub shower unit:
Use correct size hole saw based on selected fixture
"
design.
Cut from the finished side of the unit.
"
Use masking tape to mask the surrounding surface to
"
prevent scratches and other damages.
HELP LINE INFO:
VISIT www.mirolin.com
FOR INFORMATION CALL:
TOLL FREE 1-800-MIROLIN.
© Copyright 2010 Mirolin Ind.
BA604TL/R
MANUAL FOR FUTURE REFERENCE
The Copyright includes all content on the document
General Installation Notes
Note: Dimensions are for framed openings. Refer to
specification sheet for specific product dimensions.
The Tub Shower is to fit into framed alcove as shown in
!
Figure 1 and Figure 2.
Rough-in dimensions are 80" x 60 1/4".
!
Framing:
!
Inside dimension of the studded alcove are to be as
specified in Figure 1.
Shimming May Be Required
The unit will rest on the front edge and the two legs at the
!
rear and one leg in the centre of the bathing well. Shims may
be required to level the tub to ensure adequate drainage.
The shower is fastened in place using dry wall screws. Holes
!
are to be drilled in the flange on both sides and across the
top. The holes are to be drilled by the installer as illustrated
in figures 3 - 6 on the following pages.
FIGURE 2 - SHOWING THE TOP VIEW OF THE
SHOWER IN THE ALCOVE.
.
