SORRENTO™ ONE-PIECE NEO ANGLE SHOWER
INSTALLATION INSTRUCTIONS AND OWNERS MANUAL
READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION
PLEASE RECORD THE SERIAL NUMBER ________________ OF YOUR SHOWER

INSTALLATION NOTES

Important:
The Acrylic Shower was carefully inspected and packed
for shipment. You should check your unit and if there are
any problems, contact your dealer before installation.
Protect the shower from dirt and damage by leaving the
polyethylene protective film in place until installation and
other related construction is complete.
Follow Local Building Codes.

PREPARATION

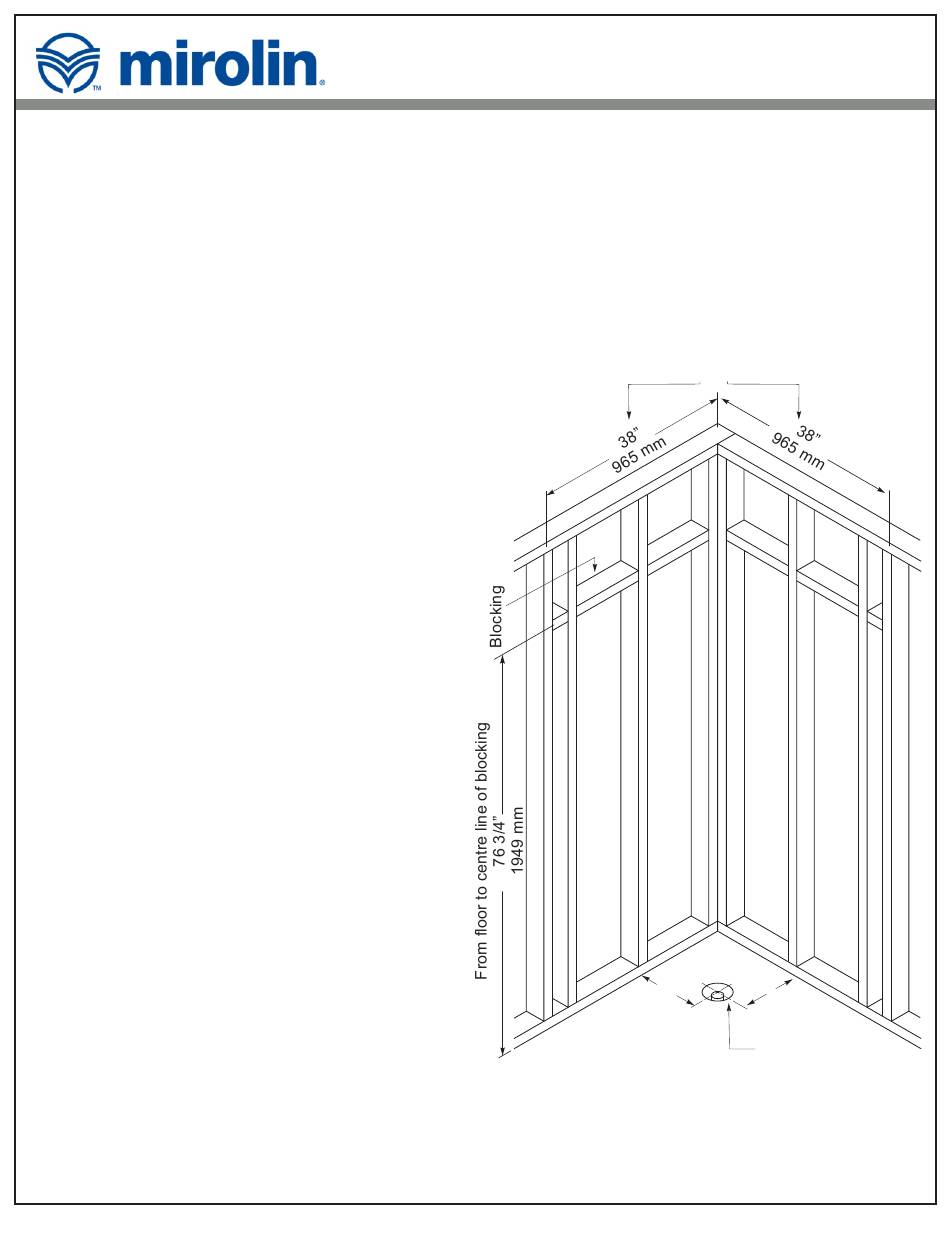

1. Install framing and blocking as shown in Figure 1.
2. Ensure that the floor is level, correct if necessary.
3. Figure 1 shows drain location and clearance.
Drain pipe must be vertical.

INSTALLATION

1. Place the unit into position and plumb vertical, shim if
necessary.
2. Dry fit drain to check position.
3. Mark and drill 1/4" (6 mm) pilot holes for fixtures.
4. Verify the holes are in the right location.
5. Remove the unit from the corner.
6. From the finished side of the unit, use the correct size
hole saw to cut the openings using the pilot holes as
guides.
7. Install the drain
instructions. Use a mildew resistant silicone sealant
to seal the drain to the top surface of the base.
8. Move the shower into place.
9. Drill 1/8" (3mm) holes at approximately 8" (200mm)
intervals around the flanges as shown Figure 2.The
holes should go just through the fibreglass.
10. Use a level to ensure that the walls are vertical, shim
as necessary between the fibreglass walls and the
studs at the hole locations.
11. Use drywall screws to carefully fasten the shower to
the framing. Note that over tightening or burying the
head of the screw may cause the fibreglass to crack.
SAVE THIS MANUAL FOR FUTURE REFERENCE
according to manufacturer's
SC38NA™
From corner to centre line of stud
FIGURE 1 - PREPARATION
R084206, RevB
mirolin.com
11 3/4"
11 3/4"
298 mm
298 mm
5"
127 mm Ø Clearance
