Siemens 300 / TW 3A Series Manual

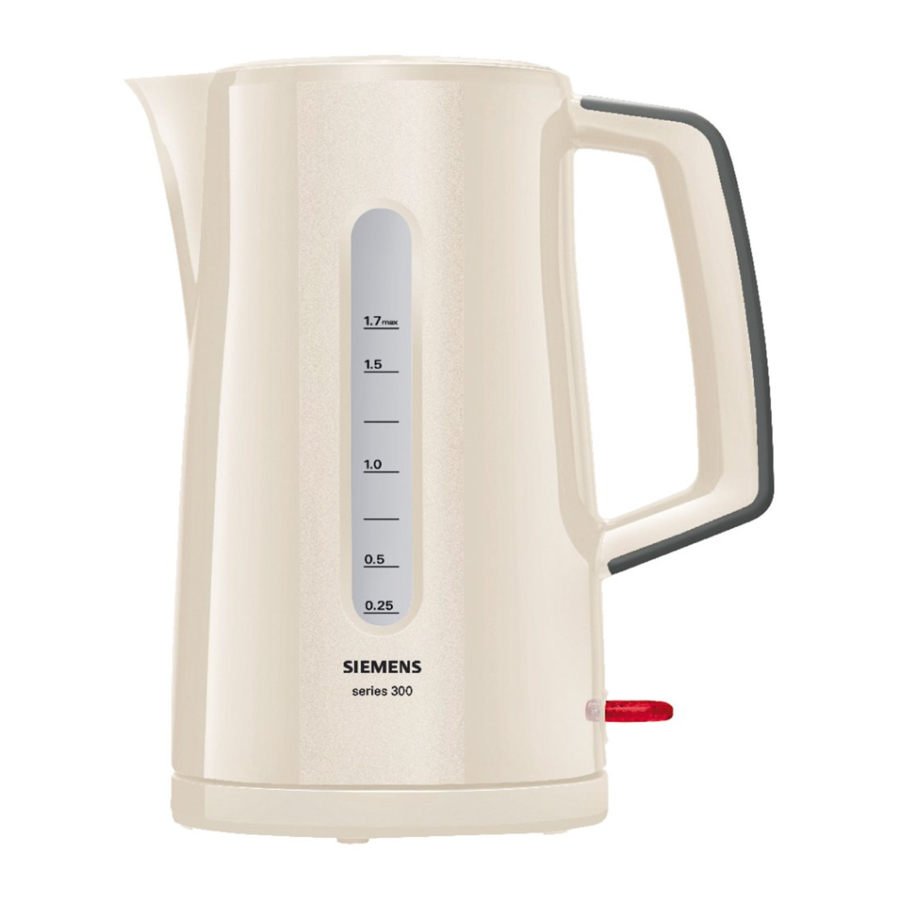

Parts and operating controls

Overview

  1. Kettle (with water level indicator)
  2. Lid with lock
  3. O/I ON/OFF switch, illuminated
  4. Limescale filter (removable)
  5. Base
  6. Cable tidy


Use the kettle 1 only with its included base 5.

  • Only fill the kettle with water. Milk and instant beverages will burn and damage the appliance. Never operate the kettle 1 without water and do not overfill it; observe the min and max markings. If the kettle is too full, the water will boil over!

Before using for the first time

  • Remove any stickers or film.
  • Unroll the right amount of cable from the cable tidy 6 and plug it in.
  • Fill the kettle 1 with water. Bring the water to a boil and discard it. Repeat the proce dure. This will make sure that the kettle is clean for normal use.
  • When the water comes to a boil for the first time, add a tablespoon of white vinegar.

Boiling water

Boiling water

  • Remove the lid 2 and fill the kettle 1 with fresh water through the opening or spout.
  • Read the quantity on the water level indi cator. Do not fill with less than 0.25 litres or more than 1,7 litres of water!
  • Put on the lid 2 at the mark and twist to to lock it in place.
  • Press down the O/I ON/OFF switch 3; the switch lights up. The water is heated.
  • The kettle switches off automatically once the water has boiled.

The appliance can also be switched off at any time by pulling up the O/I ON/OFF switch 3.

If you remove the kettle 1 from the base and replace it before the heating process is over, the kettle will not continue to heat the water.
N.B.: Only operate the kettle with the lid 2 closed and the limescale filter 4 inserted, otherwise the kettle will not switch off. For physical reasons, the base 5 may collect some condensation water. This is normal; it does not mean that the kettle 1 leaks.
After boiling, let the kettle cool down for 5 minutes before refilling it with water.
Do not turn on the appliance if the kettle 1 is empty, otherwise the overheat control will engage and the appliance will switch itself off automatically.

Cleaning and maintenance

shock hazard Risk of electric shock!
Never immerse the device in water or place it in the dishwasher!
Do not steam clean the appliance.

  • Before cleaning, unplug the appliance from the power outlet.
  • Clean the outside of the kettle 1 and base 5 with a damp cloth. Do not use strong or abrasive cleaning agents.
  • Remove the limescale filter 4, soak it in a little vinegar, then rinse clean with clear water.
  • Rinse the kettle 1 and the limescale filter 4 with clear water.

Descaling

Regular descaling

  • makes your kettle last longer;
  • ensures proper function;
  • saves energy.

Descale the kettle 1 with vinegar or a commercial descaling agent.

  • Fill the kettle 1 with water up to the 1,7 mark and bring to a boil. Next, add a small amount of white vinegar and let it sit for several hours. You can also use a commercial descaling product and follow the manufacturer's instructions.
  • Rinse the kettle 1 and the limescale filter 4 with clear water.


Never use hard objects to remove limescale residue as this will damage the seal.
Tip: If you use the kettle daily, descale more frequently.

Troubleshooting

The appliance does not heat and the O/I ON/OFF switch 3 does not light up.

  • The overheat control has tripped.
    • Let the kettle 1 cool down for some time so that the appliance can be switched on again.

The unit turns off before the water comes to a boil.

  • The kettle contains too much scale.
    • Descale the kettle as per the instructions.

Safety instructions

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.
shock hazard Danger of electric shock!
Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.
Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.
This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
Avoid spillage on the connector. Never immerse the appliance, base or mains cable in water.
Use the kettle only with the included base.
Use only if power cord and appliance show no signs of damage. Should a fault occur, pull the plug or disconnect from the mains immediately.
warning Risk of fire!
Do not place the base or kettle on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged.
warning Risk of scalding!
The appliance heats up during use. Make sure you only pick it up by the handle and do not open the lid until the appliance has cooled down. Only use the appliance when the lid is engaged.
If the appliance is filled above the "max" marking, there could be a risk from splashes of boiling water.
warning Risk of burns!
After the use the heating element surfaces and warming plate can be subjected to residual heat.
Do not use near water contained in bath tubs, sinks or other containers.

warning Risk of suffocation!
Do not allow children to play with packaging material.
warning Risk of injury!
A misuse of the appliance can potentially lead to injury.

siemens-home.bsh-group.com/welcome
