LEGRAND NUMERIC HPi 33 EVO User Manual page 7

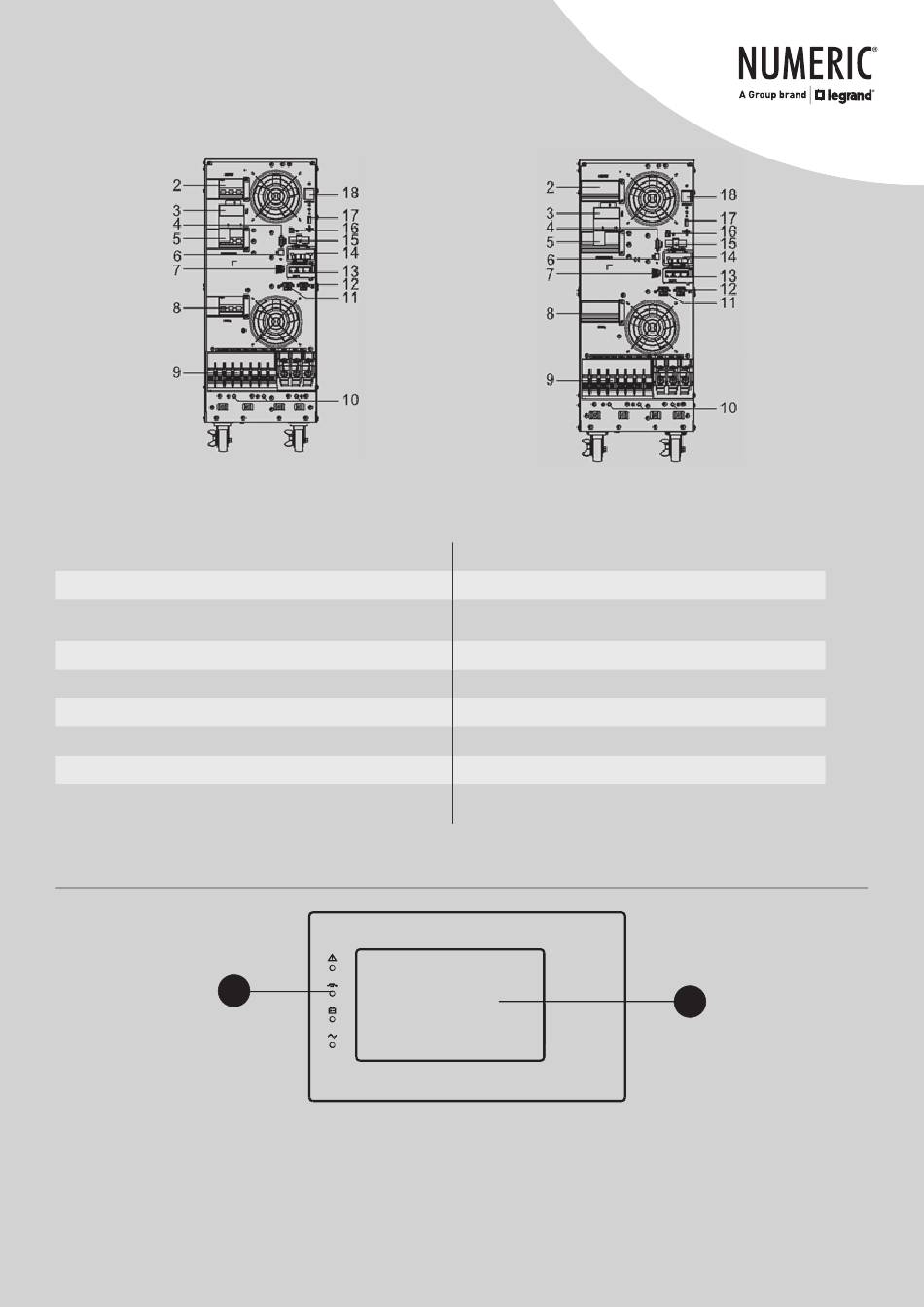

30kVA Rear View
(Terminal block without cover)
1. LCD panel
2. Output Switch
3. External maintenance switch signal /
Maintenance switch cover plate
4. RS232 port
5. Maintenance switch
6. USB port
7. Dry contact port
8. Input Switch
9. Terminal block for Input, output, battery & Ground
(Dual input)
3.3 LCD control panel
1
1. LED (from top to bottom: "alarm", "bypass", "battery", "inverter"), 2. LCD display
(Terminal block without cover)
10. Ground
11.Parallel port 1
12.Parallel port 2
13.Intelligent Slot 2 (SNMP card/ Relay card)
14.Intelligent Slot 1 (SNMP card)
15.RS485 port
16.REPO port
17.EVENTS port
18.Cold start button
LCD control panel introduction
40kVA Rear View
2
7
