Spectrum Industries 55582 Assembly Instructions

Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0202589
Bracket
(1) 0202585
5/16-18 x 3/4"
SHCS
Assembly tip: Do not tighten component fasteners completely
until all have been installed. Keeping them loose will help
with alignment between parts during assembly.

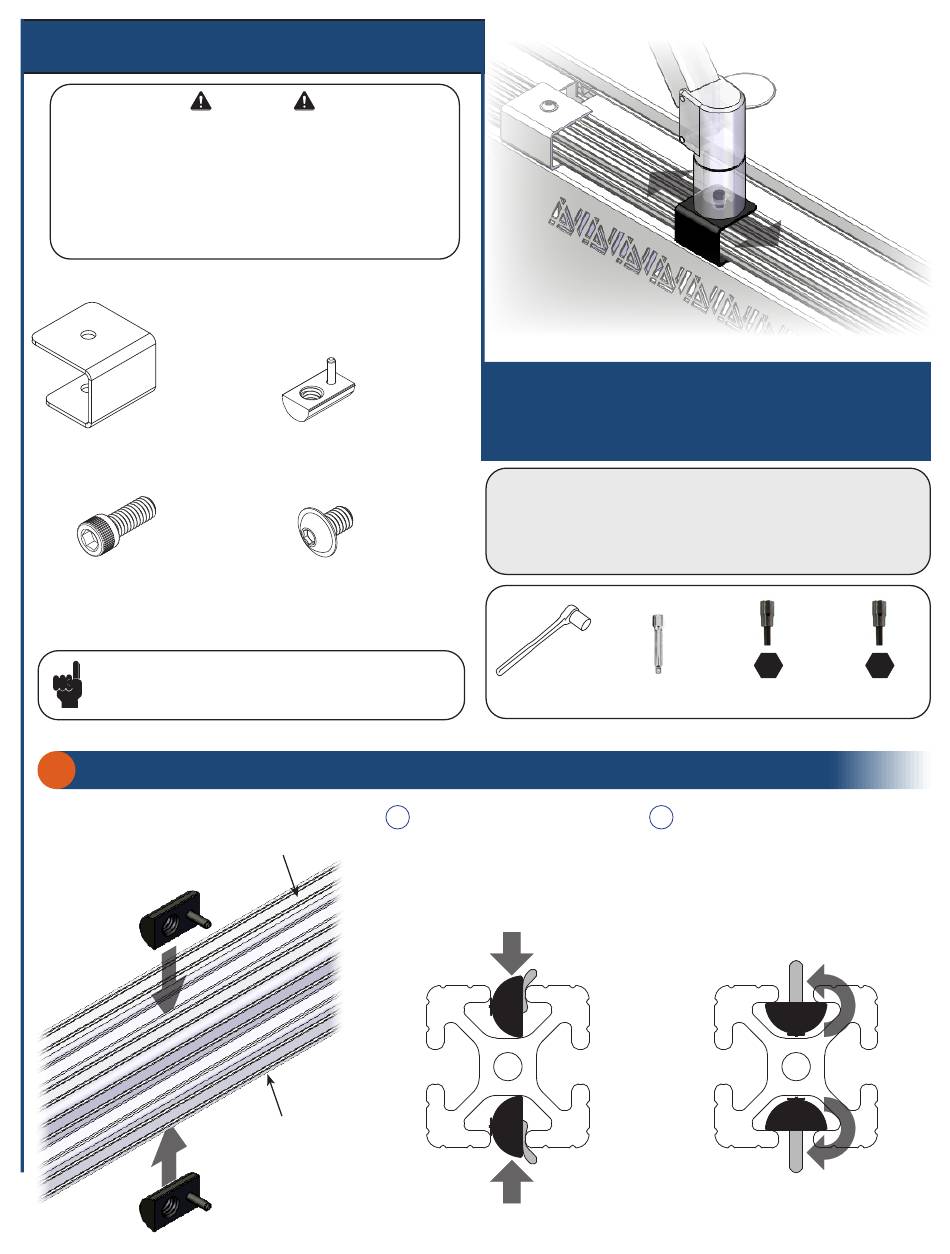

1
Install roll nuts into rear channel
5/16-18
Roll nut
5/16-18
Roll nut
(2) 0199784
5/16-18 Roll nut
(1) 0199804
5/16-18 x 1/2"
FBHSCS
1
Top of rear
channel
Bottom of rear
channel
Adjustable Monitor Mounting Kit
CTRL Production Station
Note: This kit is designed to mount "Titan" monitor arms only (sold sepa-
rately) or other peripherals that work with a .375" mounting hole. The
fixed bracket(s) already installed in the same rear channel on the CTRL
Production Station need to remain in place for structural reinforcement-
do not remove.
Socket
wrench
Insert a roll nut as shown into
the top and bottom of the rear
aluminum channel.
55582
3/16"
Extension Hex bit
(Tools not included)
2
Using the rubber tab, rotate each roll nut
90-degrees into the correct orientation.
(The flat side will face out).
0600072 Page 1 of 2
1/4"
Hex bit
