Spectrum Industries 55491 Assembly Instructions

Assembly Instructions Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts
or accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0132020
Rear Stacking Bracket
(1) 0132015
Left stacking
bracket
(1) 0132018
Right stacking
bracket

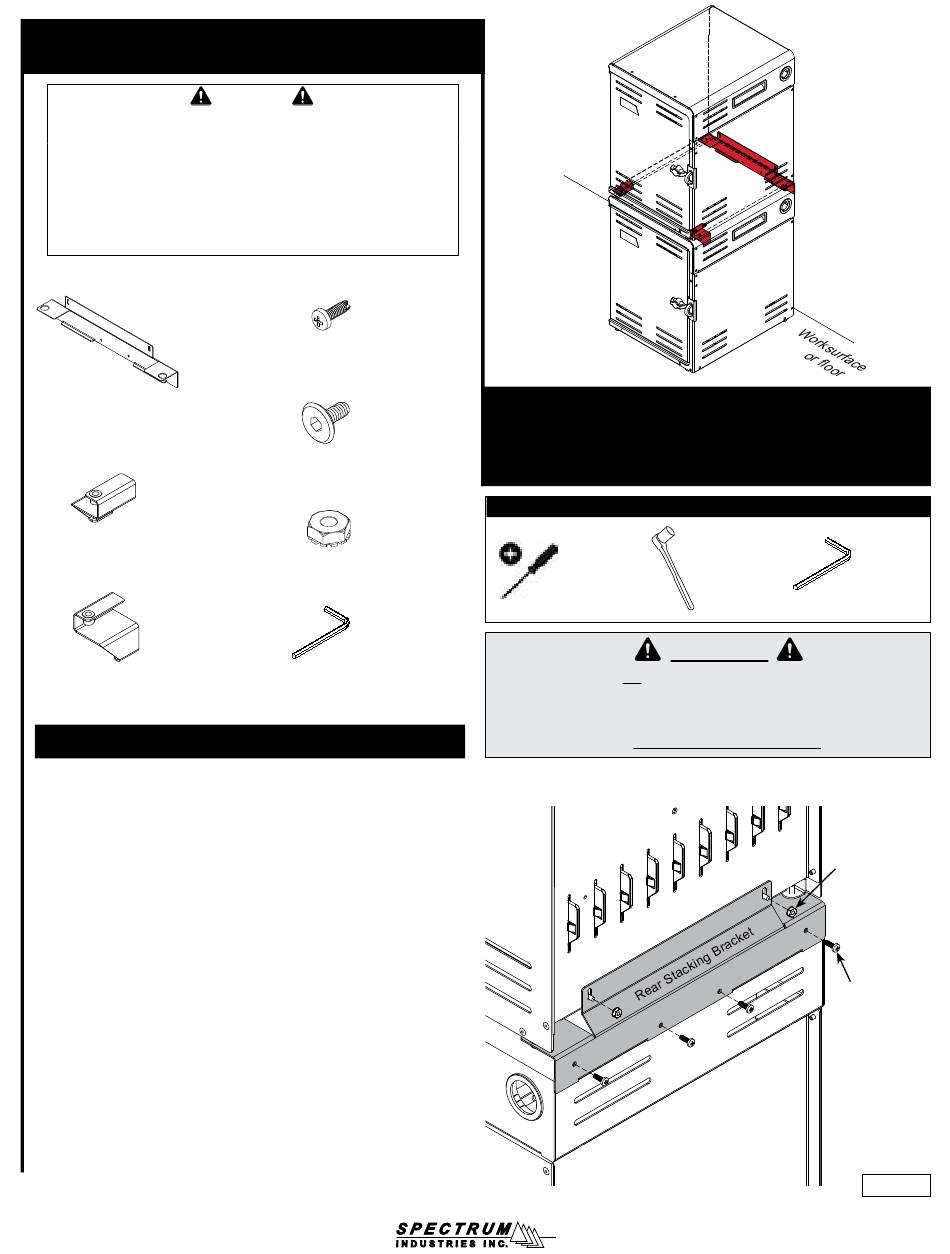

1. Install rear stacking bracket

1. With the first locker on a stable permanent worksurface or floor,
carefully stack the second locker on top. This may require two people.
2. Place the rear stacking bracket between the two lockers as shown.
Figure 1. Be sure the two bracket tabs are hooked into the upper
vent slot on the lower locker.
3. Align the bracket / locker mounting holes and threaded studs.
Lift the rear of the upper locker slightly to align the bracket holes
around the glides.
4. Install (2) 8-32 Keps nuts and (4) 8-32 x 1-1/2" PH Thread-cutting
screws, but do not tighten completely.
(4) 0100167
8-32 x 1-1/2" PH
Thread-cutting
screw
(2) 052605
1/4-20 x 15mm
JC bolt
(2) 021588
8-32 Keps nut
(1) 025039
4mm Hex
wrench
• This stacking kit is not designed to hang locker from a wall.
• One 55491 kit will stack one locker onto another that sits on a
worksurface or floor (one kit is required for each additional level).
• Max recommended stack height: 2 units.
• A stack of 2 or more must be secured to floor or wall.
Stacking Kit
for Connect10 Locker
55491
Tools Required
Phillips Ratcheting
screwdriver wrench with
5/16" socket
WARNING
e r
o c k
0 L
c t 1
n n e
C o
p e r
U p
e r
o c k
0 L
c t 1
n n e
C o
e r
L o w
W a
l l
4mm Hex
wrench
(included)
(2) 8-32 Keps nut
(4) 8-32 x 1-1/2"
PH Thread-
cutting screw
Figure 1
0190201R1 Page 1 of 2
