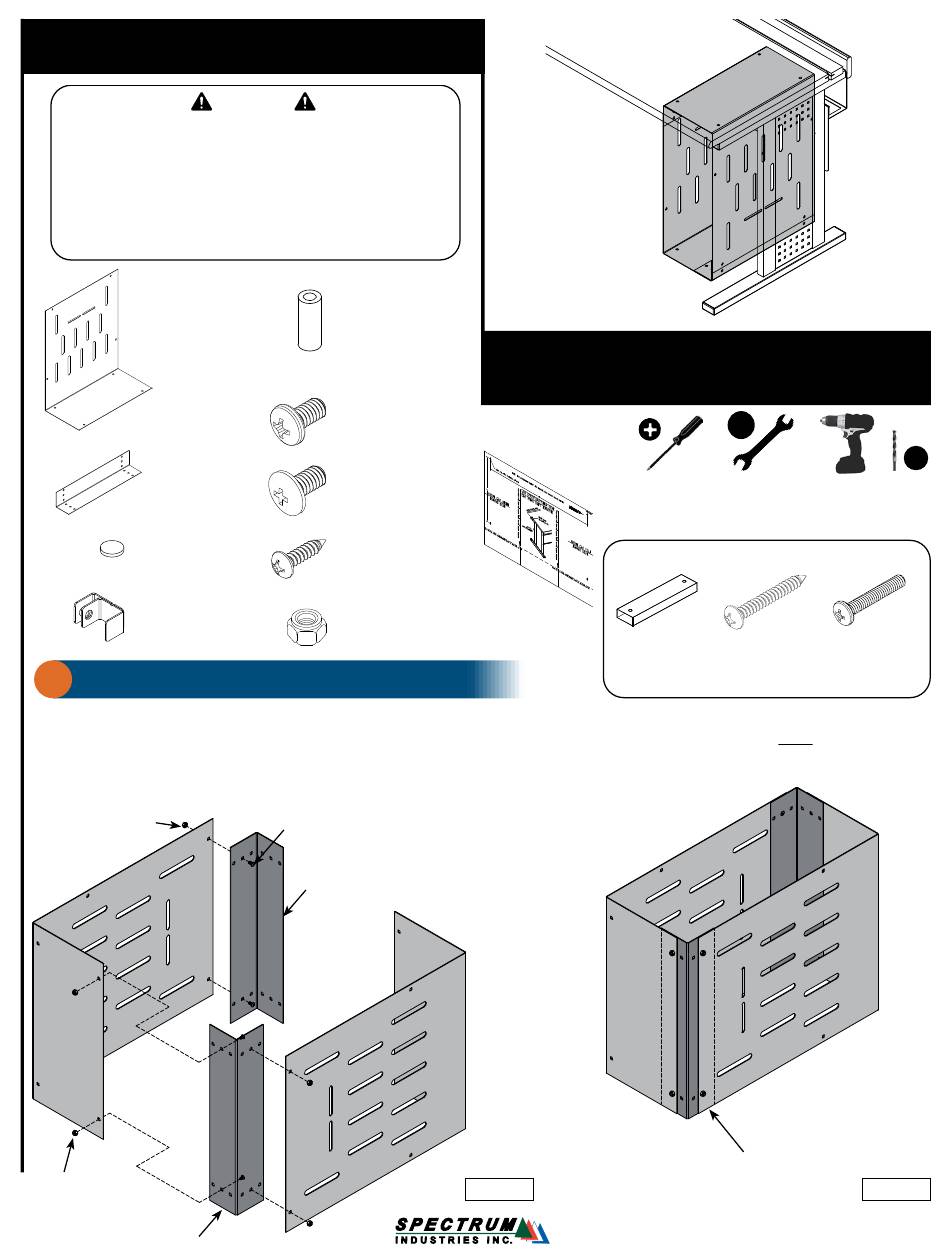

Spectrum Industries 95500 Assembly Instructions

Assembly Instructions Assembly Instructions
Assembly Instructions Assembly Instructions
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(2) 042020
Sling Side
(2) 042021
Corner Brackets
(3) 0103619
Adhesive bumper
1/2" x 1/16" thick
(1) 0166363
Leg bracket
1

Assemble and adjust CPU sling

1. Determine the height and width required for your CPU.
2. Adjust the CPU sling to the height and width of your CPU using the three adjustment holes and attach the corner brackets inside the assembly using
the 1/4-20 x 3/8" truss head machine screws and 1/4-20 locknuts as shown in Figure 1.1. The screws install from the inside with the locknuts on the
outside. Note the positions of the corner brackets at the top and bottom of the sling. Figure 1.2.
1/4-20 Locknut
B o
t t o m
1/4-20 Locknut
Corner Bracket
Important
(2) 044890
1 x .275 ID x .5
OD Nylon Spacer
(4) 026017
1/4-20 x 1/2 PHMS
(7) 042025
1/4-20 x 3/8 THMS
(4) 026057
#10 x 3/4 PHSM
(6) 041943
1/4-20 Locknut
1/4-20 x 3/8 THMS
Corner Bracket
(1) 042139
Drill template
T o p
Figure 1.1
TM
Adjustable CPU Sling Adjustable CPU Sling
95500 95500
"
7/16
Used with 48", 60", and 72" desks
(1) 042110 (4) 021605
2" x 2" x 1" #10 x 1-3/4
Shim PHSM
B o
t t o m
Side overlaps
bracket here
1
/
"
8
(for desks without
threaded inserts)
(4) 026547
1/4-20 x 1-1/2
PHMS
Figure 1.2
042023R12 Page 1 of 3
