Assembly Instructions:
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for choosing Spectrum products!
(2) 026547
(2) 021605
1/4-20 x 1-1/2
#10 x 1-3/4
PHSM
(2) 056703
(1) 0100193
Strap/Buckle
2" x 2" x 1" Shim
Assembly
(2) 034195
(1) 042139
1/4-20 Wing Nut
Drill Template
Before you begin, please make sure all parts and proper quantities are
included. Any parts damaged during shipment must be reported within
15 days of receipt. To report information regarding damages or if you
have any questions, please call 1-800-235-1262.

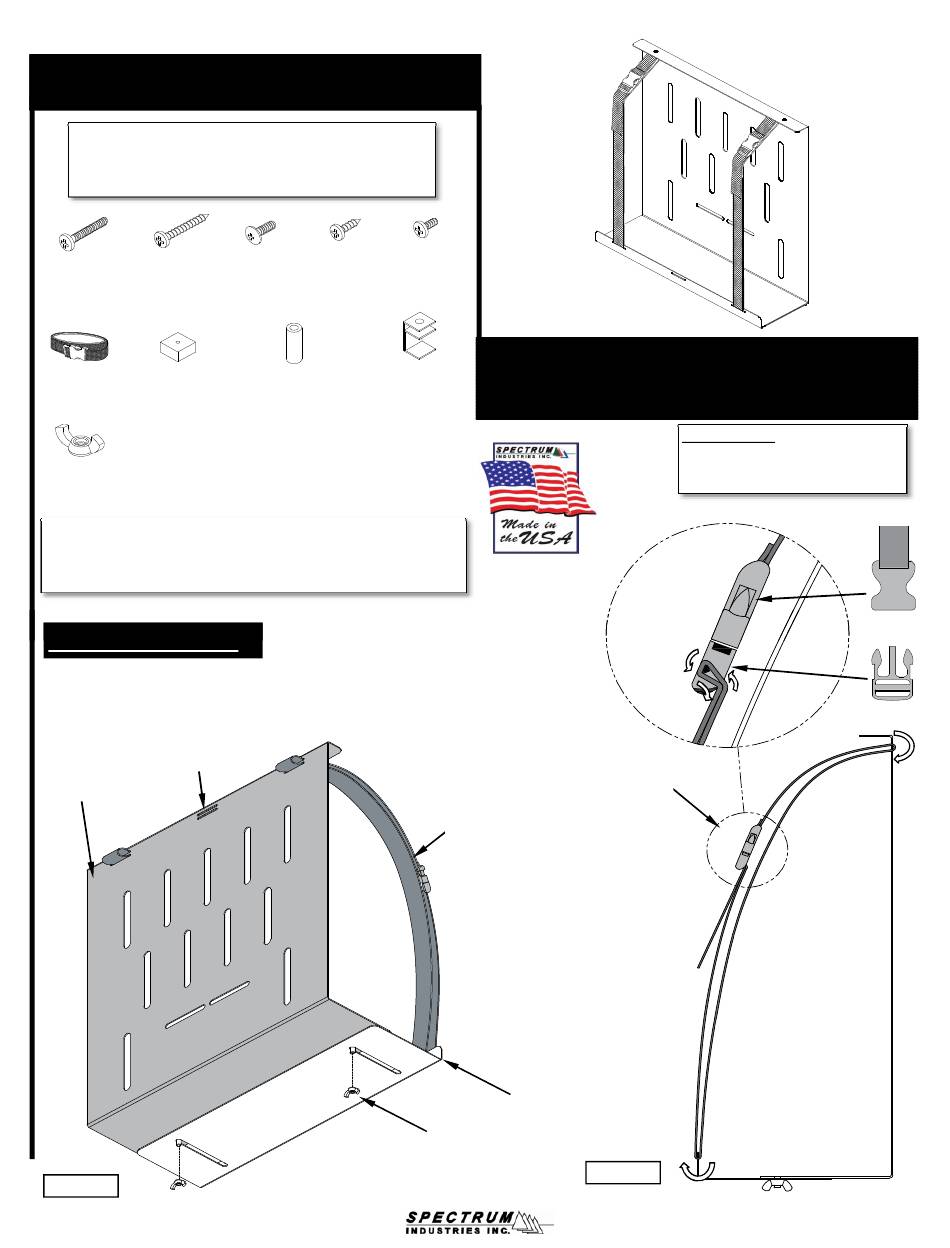

1. Sling Assembly
1 Sling Assembly
A. Assemble the sling side and base using (2) 1/4-20 wing nuts as shown in Figure 1A.
B. Thread the straps through the slots in sling side and base as shown in Figure 1B
with the tails hanging down. (The center slot can be used for smaller CPU's.)
C. Thread each strap through the buckles as shown.
Center slot used
for smaller CPU's
Sling Side
Figure 1A
(1) 042025
(2) 026057
(2) 026017
1/4-20 x 3/8
#10 x 3/4
1/4-20 x 1/2
THMS
PHSM
PHMS
(1) 044890
(1) 042019
1" Nylon Spacer
Leg Bracket
Adjustable CPU Sling
Strap/Buckle
Strap/Buckle
Assembly
Sling Base
Wing Nut
(2) Req'd
Figure 1B
#95513
Tools Required:
Phillips screwdriver
Drill with an 1/8" drill bit
(for desks without threaded inserts)
Assembly
0100192R3 Page 1 of 3
