Spectrum Industries 95036 Assembly Instructions

Assembly Instructions Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(2) 0167301
Side panel
(1) 0167303
Bottom Panel
(16) 026064
1/4-20 x 5/8" PHMS
(4) 050184
10-32 x 5/8" PHMS

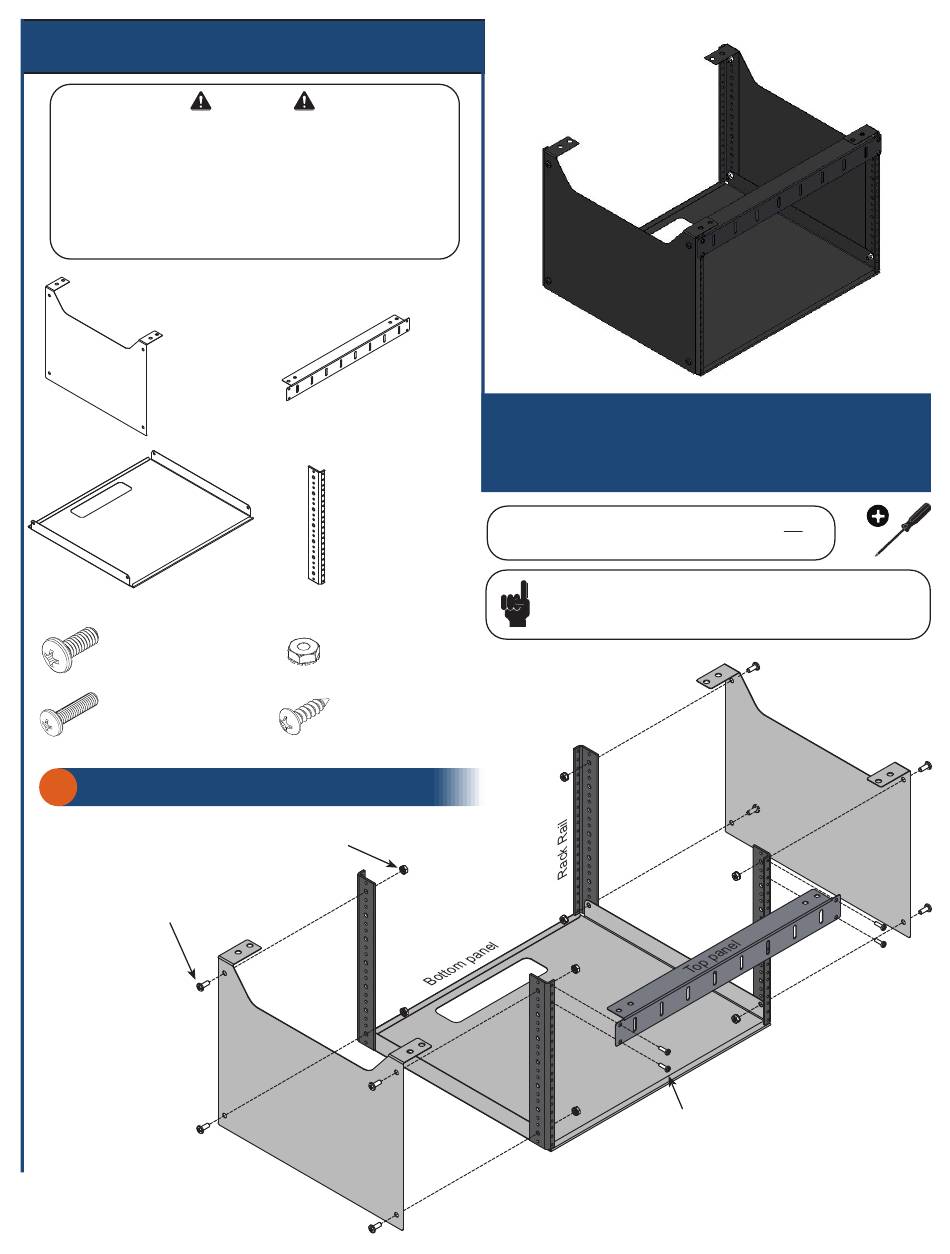

1
Assemble rack cabinet
(4) 1/4-20 x 5/8"
PHMS
(1) 0167302
Top panel
(4) 053281
Rack rail (12.25")
(8) 0106543
1/4-20 Keps nut
(8) 0101382
#14 x 7/8" PHSM
(4) 1/4-20
Keps nut
S i d
e p
a n e
l

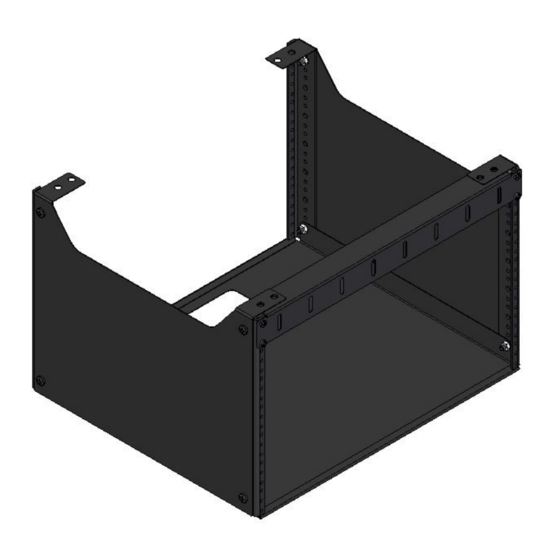

Undermount Rack Cabinet
for Pivot Premier
95036
Note: The 95036 Undermount Rack Cabinet is not
compatible with an installed Undermount AV Channel.
Assembly tip: Do not tighten component fasteners completely
until all have been installed. Keeping them loose will help with
alignment between parts during assembly.
(4) 10-32 x 5/8"
PHMS
S i d
e p
a n e
l
0193136 Page 1 of 2
