Renzetti PRESENTATION P3002 Quick Start Manual

WE URGE YOU TO TAKE TIME TO FAMILIARIZE YOURSELF WITH THE MECHANICS OF
YOUR PRESENTATION VISE. ROTARY TYING CAN BE EASIER AND MORE PRODUCTIVE
SEE TIPS (OPPOSITE PAGE). PLEASE RETURN YOUR WARRANTY CARD TO VALIDATE
YOUR WARRANTY.
VISE HEAD ASSEMBLY
YOUR VISE HAS BEEN ASSEMBLED AND LUBRICATED AT THE FACTORY. ALL YOU HAVETO DO IS ATTACH
IT TO YOUR EXISTING C-CLAMP OR PEDESTAL BASE AS SHOWN BELOW. THE JAWS ON YOUR VISE HAVE
BEEN HARDENED AND TREATED WITH A MIL-SPEC CORROSION RESISTANT COATING. AFTER USE THEY
SHOULD BE COATED WITH OIL OR RUST INHIBITOR LIKE WD-40 TO PREVENT RUSTOR OXIDATION CAUSED
BY ACIDITY IN YOUR FINGERS. PLEASE NOTE, OUR WARRANTY DOES NOT COVER RUST DAMAGE.
PLEASE NOTE, OUR WARRANTY DOES NOT COVER RUST DAMAGE.
1: PLACE C-CLAMP ON TABLE AND SECURE.
2: SLIDE CRADLE SUPPORT COLLAR ONTO C-CLAMP STEM AS SHOWN BELOW. (FLAT SIDE UP)
3: PLACE CRADLE SUPPORT ON STEM AS SHOWN.
4: SPIN VISE ONTO THREADED END OF STEM AND TIGHTEN. USE A PIECE OF WIRE IN THE HOLE IN THE
STEM FOR TORQUE IF NECESSARY. DO NOT TIGHTEN VISE OVER 12 LBS/FT.
5: SLIDE CRADLE ARM INTO THE HOLE IN THE CRADLE SUPPORT AND SECURE.
6: SLIDE CRADLE SUPPORT AND CRADLE SUPPORT COLLAR UP OR DOWN ON STEM SO THAT CRADLE IS ON
THE CENTER LINE OF THE ROTARY SHAFT AS SHOWN BELOW.
7: LOOSEN STEM LOCKING KNOB AND ADJUST THE VISE TO THE DESIRED HEIGHT FOR TYING.
ROTARY TENSION SCREW
HOLE (FOR TORQUE)
CRADLE SUPPORT
TENSION SCREW
CRADLE SUPPORT
COLLAR
STEM CLAMPING KNOB
CRADLE ADJUSTMENTS
1: SLIDE THE CRADLE ARM INTO THE HOLE IN THE CRADLE SUPPORT. ALWAYS ADJUST THE CRADLE ARM SO
THAT THE CRADLE IS CLOSE TO THE EYE OF THE HOOK. IF THIS IS DONE PROPERLY IT PREVENTS HAVING
T0 WIND UP A LOT OF THREAD AFTER ROTARY TYING.
2: USE THE CRADLE SUPPORT TENSION SCREW TO ADD A LITTLE DRAG TO THE CRADLE SUPPORT
SO THAT THE CRADLE STILL SWINGS RELATIVELY EASY.
3: IF THE CRADLE IS IN AN AWKWARD POSITION FOR YOU IT CAN BE ROTATED AS
SHOWN IN DETAIL 1. THE CRADLE IS FAIRLY SNUG ON THE ARM SO BE SURE TO
FIRMLY HOLD THE WIRE TO PREVENT BENDING IT.
09/13 P3002
NOTE:
ROTARY SHAFT CENTER LINE
CRADLE
CRADLE ARM
CRADLE SUPPORT
CRADLE ARM LOCK SCREW
ROTATE
DETAIL 1

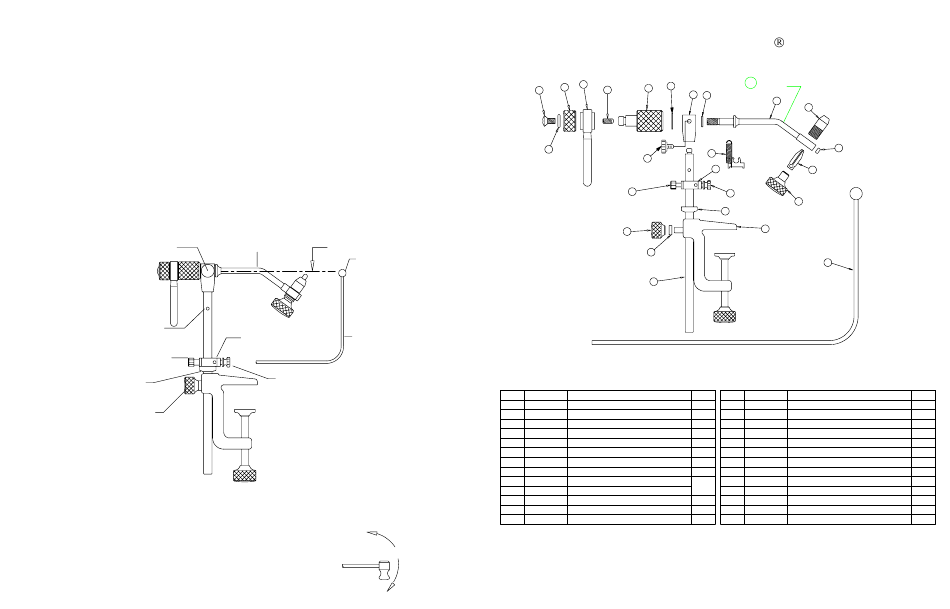

RENZETTI PRESENTATION 3000 SERIES
TRUE ROTARY
MODEL # P3002 C-CLAMP VISE
3
6
2
5
1 4
20
15
16
25
24
23
LUBRICATE ALL THREADS AND MOVING PARTS AS NEEDED
ITEM PART NO. DESCRIPTION
1 120-01510 END CAP SCREW
2 290-40806 END CAP
3 290-40277 ROTARY ACTUATOR
4 120-01038 SUPPORT LOCK SCREW
5 290-40282 ACTUATOR SUPPORT KNOB
6 290-40279 DELRIN WASHER
7 290-40290 ROTARY HEAD
8 130-03016 LUBE O-RING
9 300-23006 ROTARY SHAFT
10 300-23023 JAW HOUSING
11 120-01055 JAW HOUSING LOCK SCREW
12 300-23019 JAW
13 300-23011 JAW CLAMPING KNOB
For the complete line of Renzetti products and accessories. Please visit our website:
www.renzetti.com or truerotary.com
Covered under U S Patent & Registration No.:
2,51441; 2,077,565; 2,060,740; 2,567,674
Made in the USA
2,037,995
R
2,535,148
7
8
9
10
11
14
17
12
18
13
21
22
19
QTY. ITEM PART NO. DESCRIPTION
1 14 290-40281 MATERIAL CLIP
1 15 290-40286 ROTARY TENSION SCREW
1 16 120-01147 CRADLE SPPT.TENSION SCREW
1 17 290-40500 CRADLE SUPPORT
1 18 290-40253 CRADLE ARM LOCK SCREW
1 19 290-40264 CRADLE
1 20 130-03052 O-RING
1 21 290-40501 CRADLE SUPPORT COLLAR
1 22 251-40058 C-CLAMP FRAME
1 23 250-40001 C-CLAMP STEM
1 24 251-40064 LOCK KNOB SPACER
1 25 290-40268 STEM LOCK KNOB
1 300-23026 HEX KEY SET (NOT SHOWN)
26
2,535,148; 6,564,494B2; 2,037,995
QTY.
1
1
1
1
1
1
1
1
1
1
1
1
1
09/13
