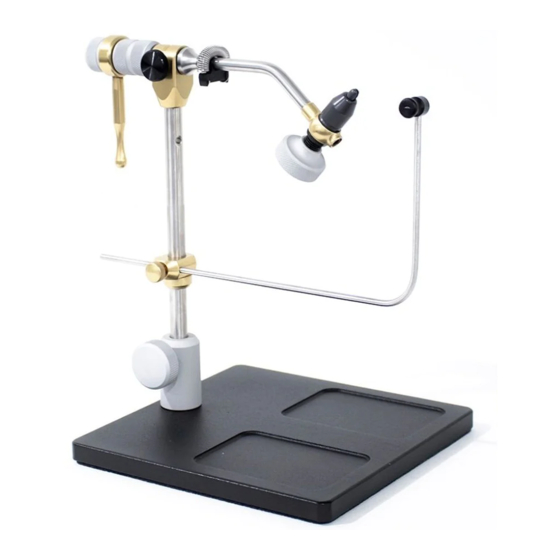

Renzetti Presentation True Rotary 3000 Series Quick Start Manual

Note:
We urge you to take time to familiarize yourself with the mechanics of
your presentation vise. Rotary tying can be easier and more productive
see tips (opposite page). Please return your warranty card to validate
your warranty.

Vise Head Assembly:

Your vise has been assembled and lubricated at the factory. All you have to do
is attach it to your existing c-clamp or pedestal base as shown below. The jaws
on your vise have been hardened and treated with a mil-spec corrosion resistant
coating. After use they should be coated with oil or a rust inhibitor like WD-40
to prevent rust or oxidation caused by acidity in your fingers.
Please note, our warranty does not cover rust damage.
1. Loosen stem lock knob enough to prevent interference with stem. Slide stem into the hole
of pedestal base and secure the stem by tightening the stem lock screw.
2. Slide cradle support collar onto pedestal stem as shown below. (flat side up)
3. Place cradle support on stem as shown.
4. Spin vise head onto threaded end of stem and tighten. Use a hex key or a nail in the hole of
the stem for torque if necessary. Be careful not to cross the threads when attaching.
5. Slide cradle arm into the hole in the cradle support and secure.
6. Slide cradle support and cradle support collar up or down on stem so that the cradle is
on the center line of the rotary shaft as shown below.
7. Loosen the stem lock screw to turn the vise to the desired position.
Rotary tension screw
Hole (for torque)
Cradle support
tension screw
Cradle support
collar
Stem lock knob

Cradle Adjustments:

1. Slide the cradle arm into the hole in the cradle support. Always adjust the cradle arm
so that the cradle is close to the eye of the hook. This prevents having to wind up alot
of thread after rotary tying.
2. Use the cradle support tension screw to add a little drag to the cradle support
so that the cradle still swings relatively easy.
3. If the cradle is in an awkward position for you it can be rotated as shown in detail 1.
The cradle is fairly snug on the arm so be sure to firmly hold the wire to prevent bending it.
04/14 P3004
Rotary shaft
Center line
Cradle
Cradle arm
Cradle support
Cradle arm lock screw
Rotate
Detail 1

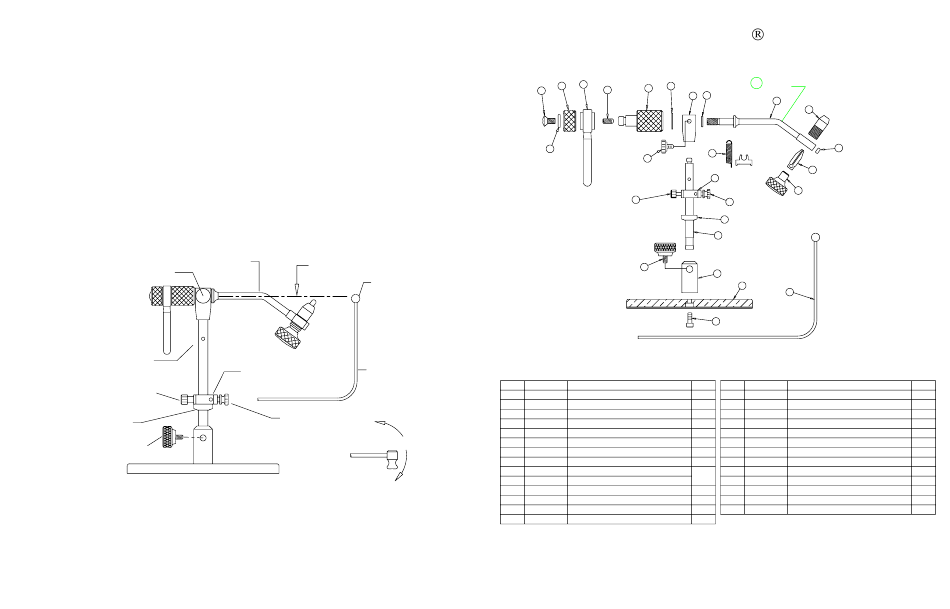

Renzetti Presentation 3000 Series
True Rotary
Model # P3004 Pedestal Base Vise
3
2 6
5
1 4
19
15
16
26
Lubricate all threads and moving parts as needed.
Item Part No. Description
1 120-01510 End cap screw
2 290-40806 End cap
3 290-40277 Rotary actuator assy
4 120-01038 Support lock screw
5 290-40282 Actuator support assy
6 290-40279 Delrin washer
7 290-40290 Rotary head
8 130-03016 Lube o-ring
9 300-23006 Rotary shaft assy
10 300-23023 Jaw housing
11 120-01055 Jaw housing lock screw
12 300-23019 Jaw
13 300-23011 Jaw clamping knob assy
14 290-40281 Material clip assy
For the complete line of Renzetti products and accessories. Please visit our website:
www.renzetti.com or truerotary.com
Covered under U S Patent & Registration No.:
2,51441; 2,077,565; 2,060,740; 2,567,674
Made in the USA
R 2,037,995
2,535,148
8
7
9
10
11
14
12
17
13
18
21
22
23
24
20
25
Qty. Item Part No. Description
1 15 290-40286 Rotary tension screw
1 16 120-01147 Cradle support tens. screw
1 17 290-40500 Cradle support
1 18 290-40253 Cradle arm lock screw
1 19 130-03052 O-ring for end cap screw
1 20 290-40264 Cradle assy
1 21 290-40262 Cradle support collar assy
1 22 250-40007 Pedestal base stem
1 23 252-40163
Std. stem support assy
1 24 252-40156 Pedestal base assy
1 25 120-01141 Mounting screw
1 26 290-40858 Stem Lock Knob assy
1 27 300-23025 Hex key set (not shown)
1
2,535,148; 6,564,494B2; 2,037,995
