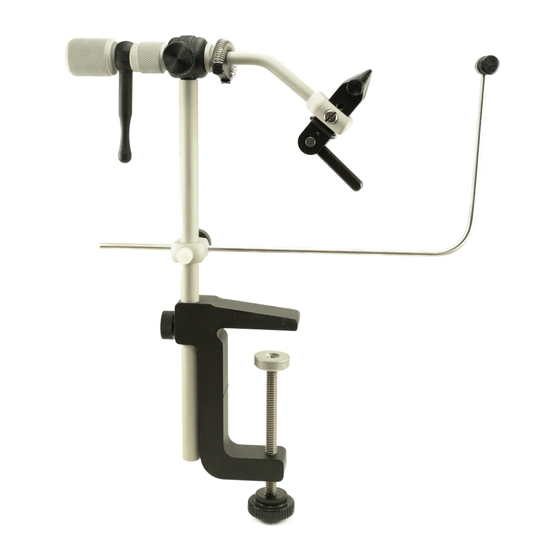

Renzetti Traveler 2200 Series Quick Start Manual

We urge you to take time to familiarize yourself with the mechanics of your
traveler vise. Rotary tying can be easier and more productive. See tips
(opposite page). Please return your warranty card to validate your warranty.

C2102 Parts List

Item Part No. Description
1 290-40840 End Cap
2 120-01658 Nylon Flat Washer
3 290-40269 Crank Arm (Trav.)
4 110-00005 Rotary Tension Screw
5 290-40842 Primary Knob
6 290-40271 Rotary Head (Trav.)
7 220-22030 Clouser rotary shaft
8 130-03016 Lube O-Ring
9 120-01455 Jaw Mounting Screw
10 110-00042 Jaw Adjusting Screw
11 290-40336 Primary Jaw
12 290-40337 Secondary Jaw
13
130-03038 Jaw Spring

Vise Assembly

Your vise has been assembled and lubricated at the factory. All you have to do is assemble the
bobbin cradle and attach the vise to the stem. The jaws on your vise have been black oxide
coated and then oiled. After use they should be coated with oil or rust inhibitor such as WD-40
to prevent rust or oxidation caused by acidity in your fingers. Any light general purpose grease,
preferably silicone grease, can be applied on any moving parts or o-ring *.
Please note, our warranty does not cover rust damage.
Traveler C-Clamp
Rotary shaft
Cradle support
Cradle support
tension screw
Cradle arm lock screw
Lock knob
Stem
1. Slide the cradle support collar onto the c-clamp stem with the flat side up as
shown in the diagram.
2. Slide the cradle support onto the c-clamp stem as shown. Use the cradle
support tension screw to add drag to the cradle support as needed.
3. Attach the vise to the c-clamp stem and tighten. Be careful not to cross the
threads when attaching the vise.
4. Slide the cradle arm into the hole in the cradle support and tighten the
cradle arm lock screw to secure the cradle arm. If the cradle is not in a
comfortable position hold the cradle arm firmly and rotate the cradle to the
desired position. See detail 1.
5. Slide the cradle support collar and cradle support up or down so that the
cradle is on or just below the center line of the rotary shaft.

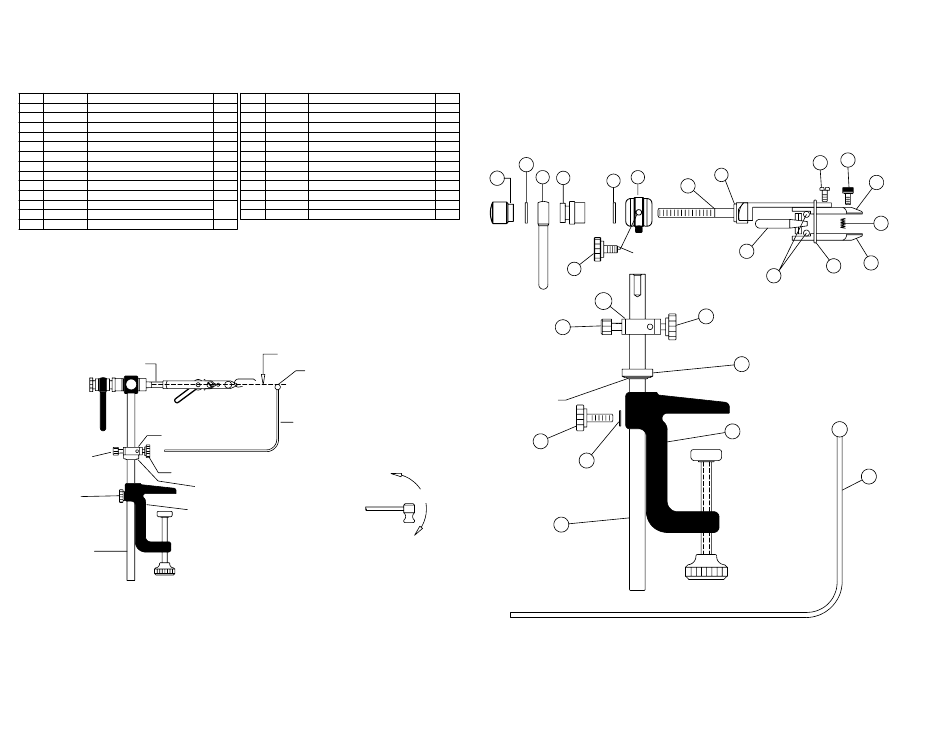

C2102
Note:
Qty Item Part No. Description
1 14 130-03018 Jaw O-Ring
2 15 290-40313 Cam
1 16 130-03024 Ball Bearing
1 17 120-01147 Cradle Support Tens. Screw
1 18 290-40255 Cradle Support
1 110-00003 Cradle Arm Lock Screw
19
1 20 290-40263 Cradle Support Collar Assembly
1 21 251-40057 C-Clamp Frame Assembly
1 22 250-40000 C-Clamp Stem
1 23 120-01628 Flat washer
24 110-00006 Lock knob
1
Set 25 290-40264 Cradle Assembly
1
Center line
Cradle
Cradle arm
Cradle support collar
C-Clamp frame
assembly
Detail 1
Qty
1
1
Model #C2102 C-Clamp Vise
2
1
1
1
1
2
1
1 3 5
1
1
1
1
4
17
O-Ring
24
Rotate
22
Lubricate all threads and parts as needed.
R#:2,551,441; 2,567,674 TM#: 2,535,148
Renzetti Traveler 2200 Series
Clouser Cam Traveler
8
6
2
O-ring groove
7
This screw is for setting the
drag. It is not intended to
15
lock the rotary shaft. Do
not overtighten
18
19
20
21
23
Patent #: 5,169,079;6,564,494132;
Made in the U.S.A.
10
9
11
13
12
14
16
25
