Renzetti Presentation 2300 Series Quick Start Manual

Note:
We urge you to take time to familiarize yourself with the mechanics of
your presentation vise. Rotary tying can be easier and more productive
see tips (opposite page). Please return your warranty card to validate
your warranty.
Vise Assembly:
Your vise has been assembled and lubricated at the factory. All you have to do
is attach it to your existing c-clamp or pedestal base as shown below. The jaws
on your vise have been hardened and treated with a mil-spec corrosion resistant
coating. After use they should be coated with oil or a rust inhibitor like WD-40
to prevent rust or oxidation caused by acidity in your fingers.
Please note, our warranty does not cover rust damage.
1. Loosen stem lock screw enough to prevent interference with stem. Slide stem into the hole
of pedestal base and secure the stem by tightening the stem lock screw.
2. Slide cradle support collar onto pedestal stem as shown below. (flat side up)
3. Place cradle support on stem as shown.
4. Place the vise onto the stem so the head of the hinge screw (24) is facing you. Install the screw
and tighten. Note The tightness of this screw, will set the hinge presure of the vise head.
5. Slide cradle arm into the hole in the cradle support and secure.
6. Slide cradle support and cradle support collar up or down on stem so that the cradle is
on the center line of the rotary shaft as shown below.
7. Loosen the stem lock screw to turn the vise to the desired position.

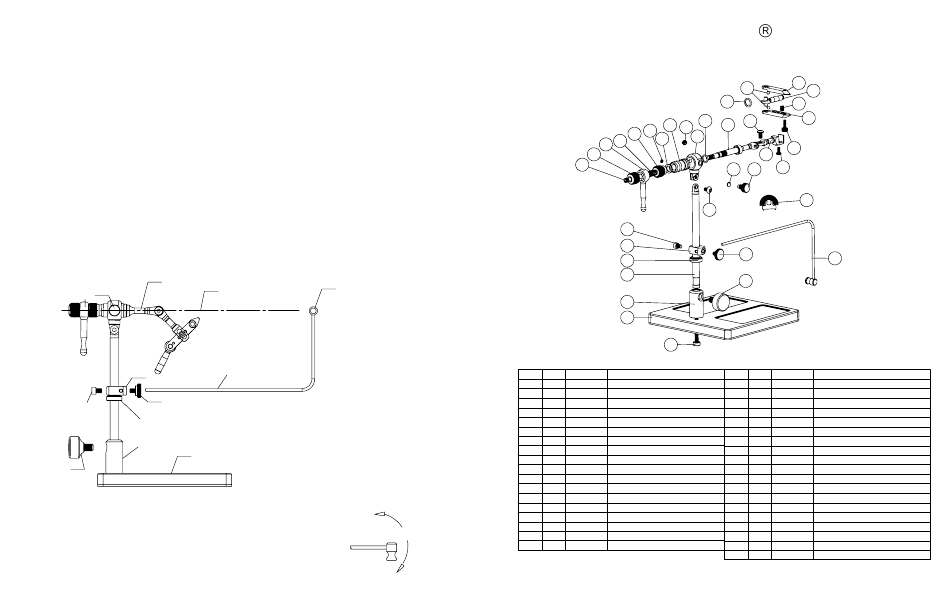

Rotary Shaft
Rotary Tension Screw
Cradle Support
Cradle Tension Screw Cradle Arm Lock Knob
Cradle Support Collar Assembly
Stem Support
Pedestal Base Assembly
Stem Lock Screw
Cradle Adjustments:
1. Always adjust the cradle arm so that the cradle is close to the eye of the hook.
This prevents having to wind up a lot of thread after rotary tying.
2. Use the cradle support tension screw to add a little drag to the cradle support
so that the cradle still swings relatively easy.
3. If the cradle is in an awkward position for you it can be rotated as shown in
detail 1. The cradle is fairly snug on the arm so be sure to firmly hold the wire
to prevent bending it.
8/22
Cradle
Center Line
Cradle Arm Assembly
Rotate
Detail 1
Renzetti Presentation 2300 Series
True Rotary
Model # P2305 Streamer Pedestal Base Vise
W/ Mat'l Clip
21
18
20
16
15
19
17
14
13
12
11
9
7
6
5
3
2
1
Lubricate all threads and moving parts as needed.
ITEM QTY. P/N DESCRIPTION
1 1 120-01151 Pedestal Base Mounting Screw
2 1 252-40190 Streamer Base Assembly
3 1 252-40261 Stem Support
4 1 290-40888 Stem Lock Knob Assembly
5 1 250-40022 Stem
6 1 290-40308 Cradle Support Collar Assembly
7 1 290-40258 Cradle Support
8 1 110-00003 Cradle Arm Lock Screw
9 1 120-01147 Cradle Tension Screw
10 1 120-01149 Rotary Head Hinge Screw
11 1 120-01055 End Cap Screw
12 1 240-24108 End Cap
13 1 240-24006 Crank Arm Assembly
14 1 130-03111 Spring
15 1 240-24109 Rotary Shaft Primary Knob
16 1 120-01008 Primary Knob Lock Screw
17 1 240-24014 Rotary Shaft Delrin Washer
18 1 240-24103 Rotary Shaft Housing
For the complete line of Renzetti products and
accessories. Please visit our website:
www.renzetti.com
U.S. Patents No.5,169,079 & No.4,169,562
33
30
31
32
34
29
25
22
28
26
27
23 24
37
10
8
35
4
ITEM QTY. P/N DESCRIPTION
19 1 240-24004 Rotary Head
20 1 120-01055 Rotary Head Lock Screw
21 1 130-03053 Rotary Shaft O-Ring
22 1 240-24102 Primary Rotary Shaft
23 1 110-00113 Delrin Tension Button
24 1 240-24105 Rotary Tension Knob
25 1 240-24011 Rotary Shaft Hinge Screw
26 1 240-24101 Secondary Rotary Shaft Assembly
27 1 120-01450 Jaw Mounting Screw
28 1 210-22010 Jaw Adjusting Screw Assembly
29 1 400-24032 Primary Jaw
30 2 130-03024 Ball Bearing
31 1 240-24160 Cam Assembly
32 1 130-03017 Jaw O-Ring
33 1 400-24033 Secondary Jaw
34 1 130-03038 Jaw Spring
35 1 290-40264 Cradle Arm Assembly
36 1 240-24040 Hex Key Set (Not Shown)
37 1 290-40281 Material Clip Assembly
Made in the U.S.A.
