Renzetti Traveler 2100 Series Quick Start Manual

We urge you to take time to familiarize yourself with the mechanics of your Traveler
vise. Rotary tying can be easier and more productive. See tips (opposite page).
Please return your warranty card to validate your warranty.

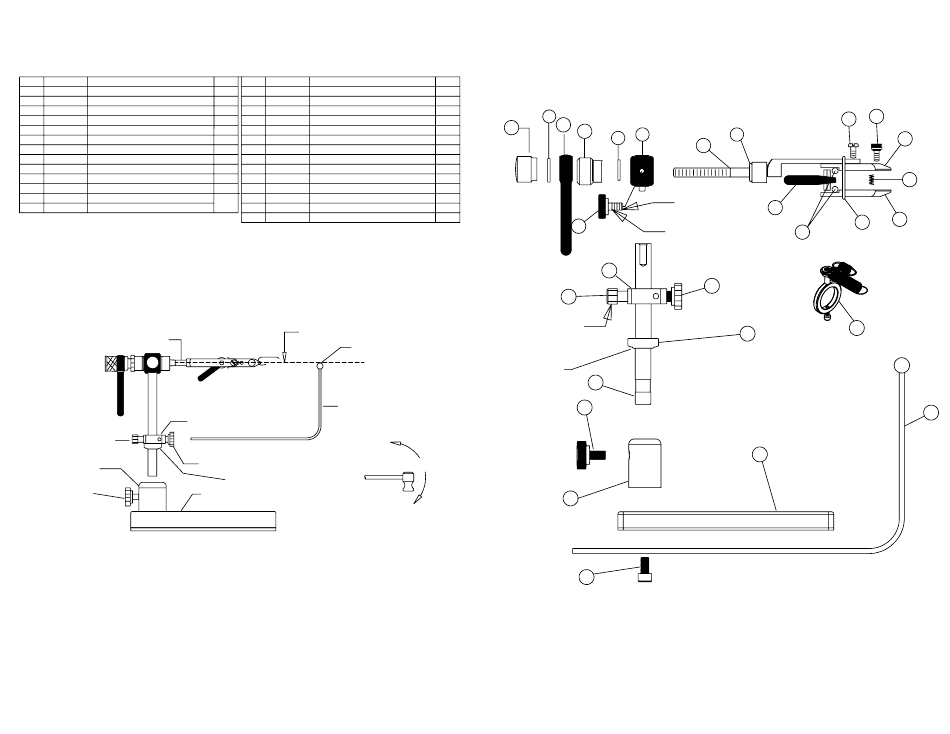

C2104 Parts List
Item Part No. Description
1 290-40843 End Cap
2 120-01658 Nylon Flat Washer
Crank Arm
3 290-40269
4 290-40838 Primary Knob
5 290-40271 Rotary Head Asly.
6 110-00005 Rotary Tension Screw
7 220-22031 Clouser Cam Shaft
8 130-03016 Lube O-Ring
9 290-40313 Cam
10 130-03024 Ball Bearings
11 120-01455 Jaw Mounting Screw
12 210-22010 Jaw Adjusting Screw
13
290-40336 Primary Cam Jaw
Vise Assembly
Your vise has been assembled and lubricated at the factory. All you have to do is assemble the
bobbin cradle and attach the vise to the stem. The jaws on your vise have been black oxide
coated and then oiled. After use they should be coated with oil or rust inhibitor such as WD-40 to
prevent rust or oxidation caused by acidity in your fingers. Any light general purpose grease,
preferably silicone grease, can be applied on any moving part or o-ring*.
Please note, our warranty does not cover rust damage.
Clouser Cam Traveler Pedestal Base
Rotary Shaft
Cradle Support
Cradle Support
Tension Screw
Stem Support
Stem Lock Screw
1. Loosen stem lock screw enough to prevent interference with stem.
2. Slide stem into the hole in pedestal base and secure the stem by tightening the stem
lock screw.
3. Slide the cradle support collar onto the pedestal base stem with the flat side up as
shown in the diagram.
4. Slide the cradle support onto the pedestal base stem as shown. Use the cradle
support tension screw to add drag to the cradle support as desired.
5. Attach the vise to the pedestal base stem and tighten. Be careful not to cross the
threads when attaching the vise.
6. Loosen the stem lock screw to turn the vise to the desired position.
7. Slide the cradle arm into the hole in the cradle support. If the cradle is not in a
comfortable position hold the cradle arm firmly and rotate the cradle to the desired
position. See detail 1.
8. Slide the cradle support collar and cradle suport up or down so that the cradle is
on or just elow the center line of the rotary shaft.
C2104
Note:
Qty Item Part No. Description
1 14 290-40337 Secondary Cam Jaw
2 15 130-03038 Jaw Spring
16 130-03018 Jaw Oring
1
1 17 120-01147 Cradle Support Tens. Screw
1 18 290-40258 Cradle Support
1 19 110-00003 Cradle Arm Lock Screw
1 290-40308 Cradle Support Collar Asly.
20
1 252-40156 6X6 Pedestal Base Asly.
21
22 250-40020 Pedestal Base Stem
1
2 23 290-40888 Stem Lock Screw
1 24 252-40261 Std. Stem Support
1 25 120-01151 Stem Support Lock Screw
Set
26 290-40264 Cradle Arm Asly.
27 210-22835 Hook Retainer
Center Line
Cradle
Cradle Arm
Cradle Arm Lock Screw
Cradle Support Collar
Pedestal Base
Detail 1
Renzetti Traveler 2100 Series
Mod# C2104 Pedestal Base Vise
Qty
1
1
1
2
1
3
1
1
1
1
1
1
1
1
1
1
1
6
17
CLEAR NYLON
O-Ring
23
Rotate
24
25
Lubricate all threads and parts as needed.
U.S.Patents:No. 5,169,079;6,564,494132
Clouser Cam Traveler
W/ Hook Retainer
O-Ring Groove
4
8
5
2
7
CLEAR NYLON
Note: This screw is for setting drag.
It is not intended to lock the shaft.
DO NOT overtighten.
18
19
20
22
21
R#2,551,441 ;2,567,674
Made with Pride in Titusville, Fl U.S.A
12
11
13
15
9
14
16
10
27
26
08/22
