Renzetti Traveler C2100 Quick Start Manual

We urge you to take time to familiarize yourself with the mechanics of your Traveler
vise. Rotary tying can be easier and more productive. See tips (opposite page).
Please return your warranty card to validate your warranty.
C2100 Parts List
Item Part No. Description
1 290-40840 End Cap
2 120-01658 Nylon Flat Washer
3 290-40269 Crank Arm (Trav.)
4 110-00005 Rotary Tension Screw
5 290-40842 Primary Knob
6 290-40271 Rotary Head (Trav.) Assembly
7 220-22030 Clouser Cam Rotary Shaft
8 130-03016 Lube O-Ring
9 120-01455 Jaw Mounting Screw
130-03024 Ball Bearings
10
11 290-40336 Primary Jaw
12 290-40337 Secondary Jaw
13
110-00042 Jaw Adjusting Screw
Vise Assembly
Your vise has been assembled and lubricated at the factory. All you have to do is assemble the
bobbin cradle and attach the vise to the stem. The jaws on your vise have been black oxide
coated and then oiled. After use they should be coated with oil or rust inhibitor such as WD-40 to
prevent rust or oxidation caused by acidity in your fingers. Any light general purpose grease,
preferably silicone grease, can be applied on any moving part or o-ring*.
Please note, our warranty does not cover rust damage.
Traveler Pedestal Base
Rotary Shaft
Cradle Support
Cradle Support
Tension Screw
Stem Lock Screw

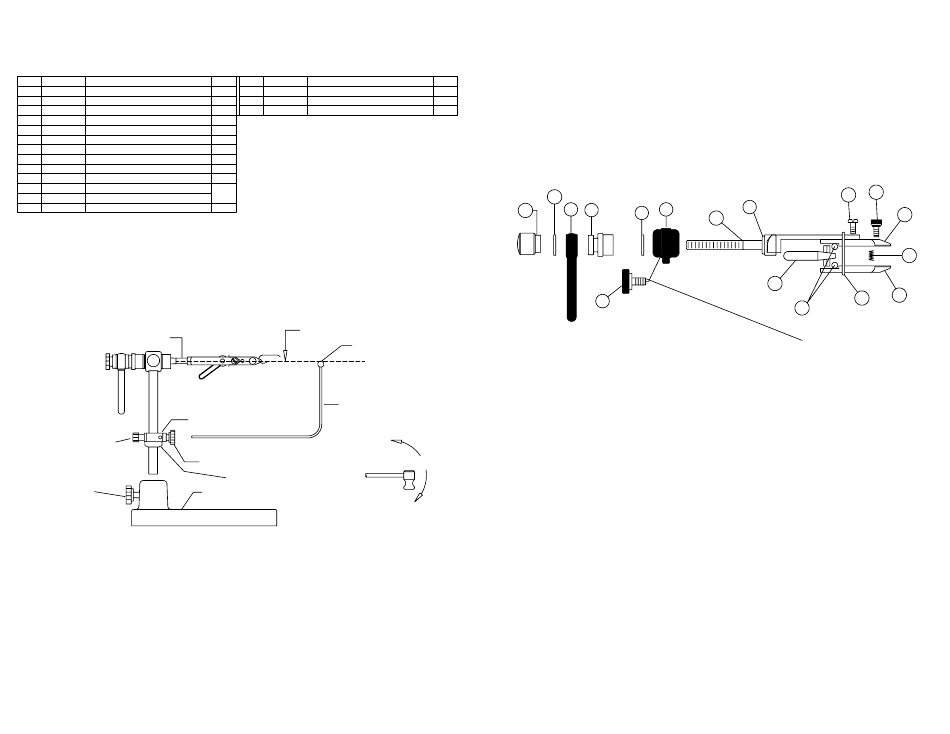

Attaching the C2100 Clouser Cam Traveler Vise Head to your vise:
1. Loosen stem lock screw enough to prevent interference with stem.
2. Slide stem into the hole in pedestal base and secure the stem by tightening the stem lock screw.
3. Slide the cradle support collar onto the pedestal base stem with the flat side up as shown in the
diagram.
4. Slide the cradle support onto the pedestal base stem as shown. Use the cradle support tension
screw to add drag to the cradle support as desired.
5. Attach the vise to the pedestal base stem and tighten. Be careful not to cross the threads when
attaching the vise.
6. Loosen the stem lock screw to turn the vise to the desired position.
7. Slide the cradle arm into the hole in the cradle support. If the cradle is not in a comfortable
position hold the cradle arm firmly and rotate the cradle to the desired position. See detail 1.
8. Slide the cradle support collar and cradle suport up or down so that the cradle is on or just
below the center line of the rotary shaft.
Note:
Qty Item Part No. Description
1 14 130-03038 Jaw Spring
2 15 130-03018 Jaw Oring
290-40313 Cam Asly.
1 16
1
1
1
1
1
1
2
1
Set
1
Center Line
Cradle
Cradle Arm
Cradle Arm Lock Screw
Cradle Support Collar
Pedestal Base
Detail 1
Renzetti Traveler 2200 Series
Qty
1
1
1
Mod# C2100 Vise Head Only
2
1
3
Rotate
Lubricate all threads and parts as needed.
FOR THE COMPLETE LINE OF RENZETTI PRODUCTS AND
Clouser Cam Traveler
O-Ring Groove
8
6
5
2
7
4
U S Patents: 5,169,079; 6,564,494132
R #: 2,551,441; 2,567,674 TM#: 2,535,148
Made in the U.S.A.
ACCESSORIES. PLEASE VISIT OUR WEBSITE:
WWW.RENZETTI .COM
OR
WWW.TRUEROTARY.COM
13
9
11
14
16
12
15
10
This screw is for setting the
drag. It is not intended to
lock the rotary shaft. Do
not overtighten
08/22
