Renzetti 2000 Series Quick Start Manual

Note:
We urge you to take time to familiarize yourself with the mechanics of
your traveler vise. Rotary tying can be easier and more productive.
See tips (opposite page). Please return your warranty card to validate
your warranty.
Vise Head Assembly
Your vise has been assembled and lubricated at the factory. All you have to do is attach
it to your existing traveler c-clamp or pedestal base as shown below. The jaws on your vise
have been black oxide coated and then oiled. After use they should be coated with oil
or rust inhibitor such as WD-40 to prevent rust or oxidation caused by acidity in your fingers.
Any light general purpose grease, preferably silicone grease, can be applied on any
moving part or o-ring*. Please note, our warranty does not cover rust damage.
Rotary Shaft
Cradle Support Cradle Arm Lock Screw
Tension Screw
Cradle Support Collar
Cradle Support
Stem Lock
Screw

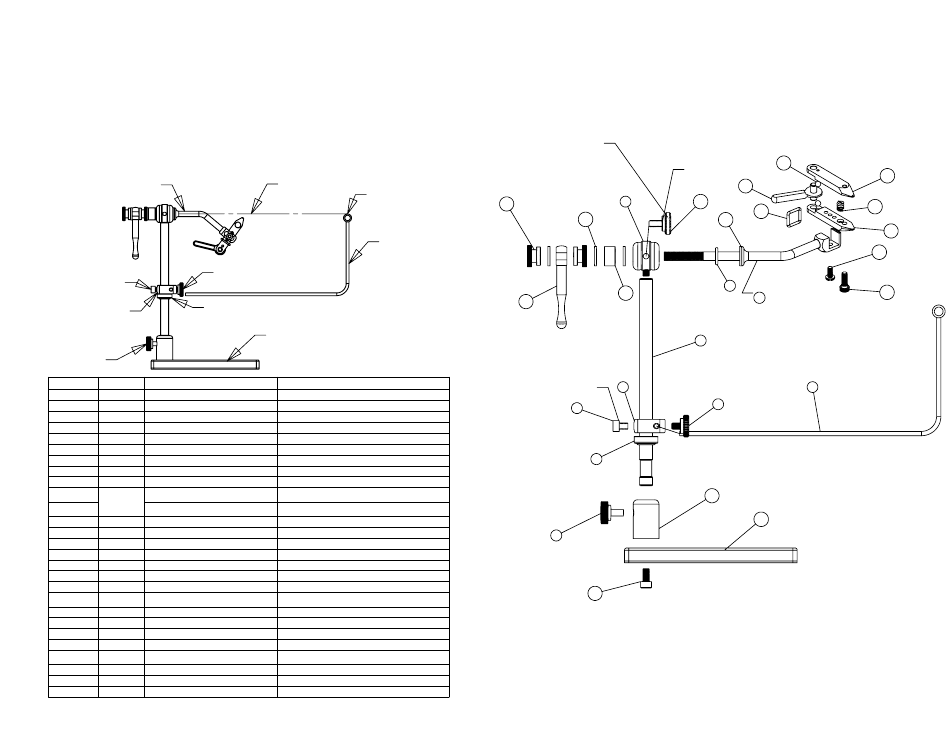

ITEM QTY. PART NUMBER
1 1 250-40006
2 1 290-40264
252-40186
3 1
4 1 290-40830
5 1 130-03016
6 1 110-00003
7 1 290-40826
8 1 120-01147
9 1 200-40271
10
200-40272
1
11
200-40273
12 3 120-01658
13 1 290-40835
14 1 120-01450
15 1 110-00005
16 1 110-00041
17 1 290-40336
18 1 290-40337
19 2 130-03024
20 1 130-03038
21 1 110-00042
22 1 290-40313
23 1 130-03017
24 2
290-40863
25 1 252-40158
26 1 252-40180
27 1 120-01149
Center line
Cradle
Cradle Arm
Pedestal Base
DESCRIPTION
7" Traveller Base Stem
Cradle Arm Assly
Stem Lock Screw
Cradle Support Collar Assly
Lubricated O-Ring
Cradle Arm Lock Screw
Cradle Support
Cradle Support Tension Screw
Traveller Rotary Head
Rotary Shaft, Right Hand
Rotary Shaft, Left Hand
Nylon Flat Washer
Traveller Crank Arm
Jaw Mounting Screw
Rotary Tension Screw
Collar
Primary Jaw
Secondary Jaw
Ball Bearing
Jaw Spring
Jaw Adjusting Screw
Cam Arm
Jaw O-ring
Tension Adjusting Knob
Traveler Base Assembly
Stem Support
Pedestal Base Mounting Screw
Renzetti Traveler 2000 Series
True Rotary
Model # C2003 Pedestal Model
Note: This screw is for setting drag.
It is not intended to lock the shaft.
Do Not overtighten!
9
24
12
16
13
7
CLEAR NYLON
8
4
3
27
Note: Lubricate all parts and threads as needed
This product is covered under
U.S. Patents No.5,169,079 , No.4,169,562 , No 6,564,494132
MADE WITH PRIDE IN TITUSVILLE, FL
19
CLEAR NYLON
22
15
23
10
5
