Owner's Manual
C100-B001 Manual
Squeeze Off Tool
Phone (905) 695-9900
Toll Free 1 (888) 737-3668
54 Audia Crt. Vaughan, ON, Canada L4K 3N4

Advertisement

loading
Need help?

Need help?

Do you have a question about the C100-B001 and is the answer not in the manual?

Questions and answers

Summary of Contents for FOOTAGE C100-B001

  • Page 1 Owner’s Manual C100-B001 Manual Squeeze Off Tool Phone (905) 695-9900 Toll Free 1 (888) 737-3668 54 Audia Crt. Vaughan, ON, Canada L4K 3N4...
  • Page 2: Safety Warning

    Ensure the grounding system is properly planted in the soil to reduce the chances of static discharge. Do not modify or alter the tool in any way. Only use Footage Tools replacement parts provided by the manufacturer or authorized distributor.

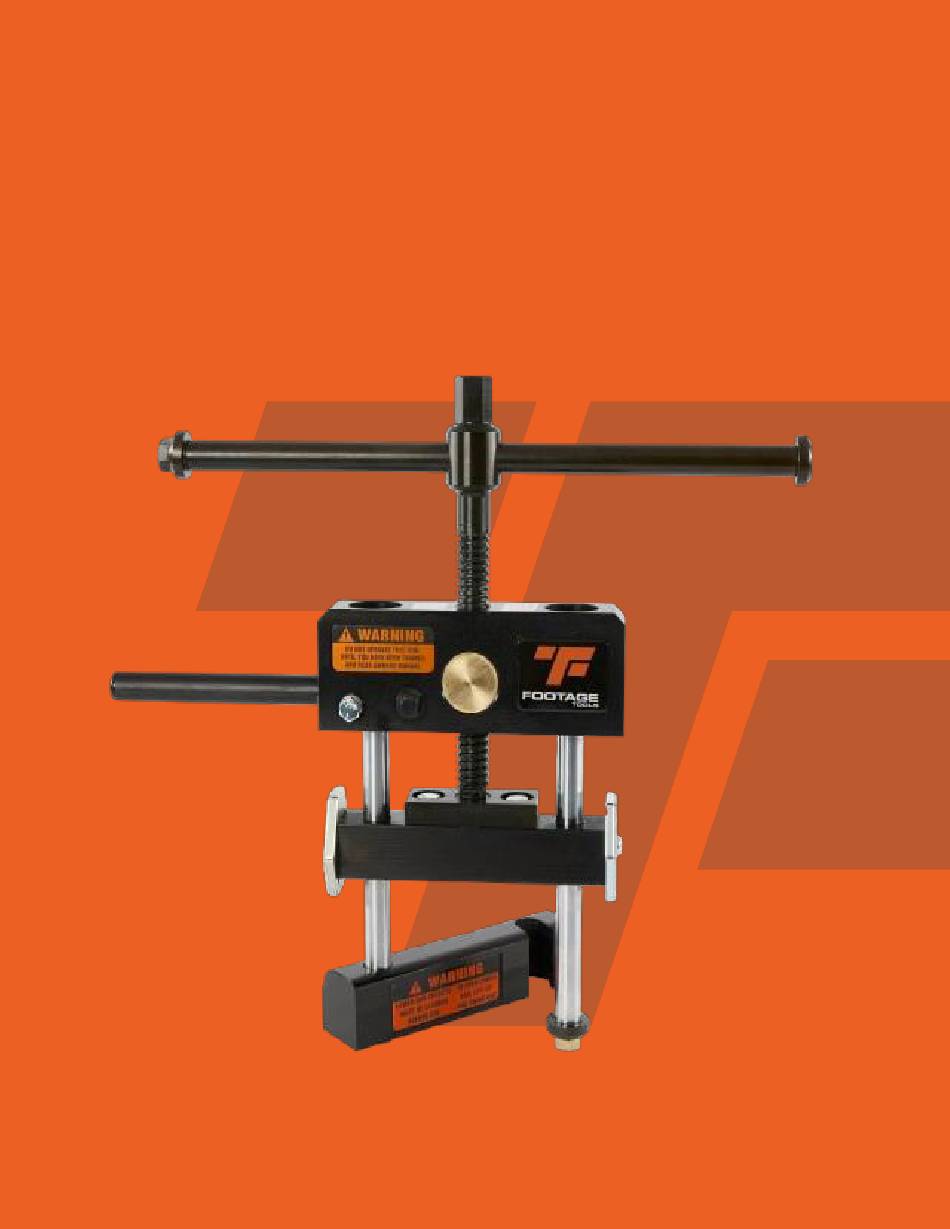

  • Page 3 C100-B001 MANUAL SQUEEZE OFF TOOL FOR PE PIPE DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD SAFETY WARNING: WARNING: WHEN OPERATING THIS TOOL, SAFETY EQUIPMENT INCLUDING SAFETY GLASSES ARE REQUIRED BEFORE PERFORMING A SQUEEZE, CLEAN THE POCKETS ON UNDERSIDE OF LOWER BAR AND WHERE THE SIDE SHAFT WILL CONTACT THE LOWER BAR.
  • Page 4: Preliminary Assembly

    C100-B001 MANUAL SQUEEZE OFF TOOL FOR PE PIPE DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD PRELIMINARY ASSEMBLY: Ensure grounding tool C615-A105, is mounted to the head with the 1⁄4” hardware supplied. (see final slide) Clean all connections before assembly.
  • Page 5 C100-B001 MANUAL SQUEEZE OFF TOOL FOR PE PIPE DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD OPERATING INSTRUCTIONS: B. Squeezing on Pipe Set the gauge plate stops on either side of the unit to the proper pipe size and SDR setting.
  • Page 6 C100-B001 MANUAL SQUEEZE OFF TOOL FOR PE PIPE DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD OPERATING INSTRUCTIONS: B. Squeezing on Pipe Continue squeezing the pipe slowly until a further 25% of the pipes original diameter has been squeezed.
  • Page 8 Warranty is void unless warranty registration form is completed either online or manually and returned to FOOTAGE TOOLS INC. within thirty (30) days from the date of purchase. This warranty and any possible liability of FOOTAGE TOOLS INC. hereunder are in lieu of all other warranties, expressed, implied, or statutory, including, but not limited to, any warranties of merchantability or fitness for a particular purpose.
