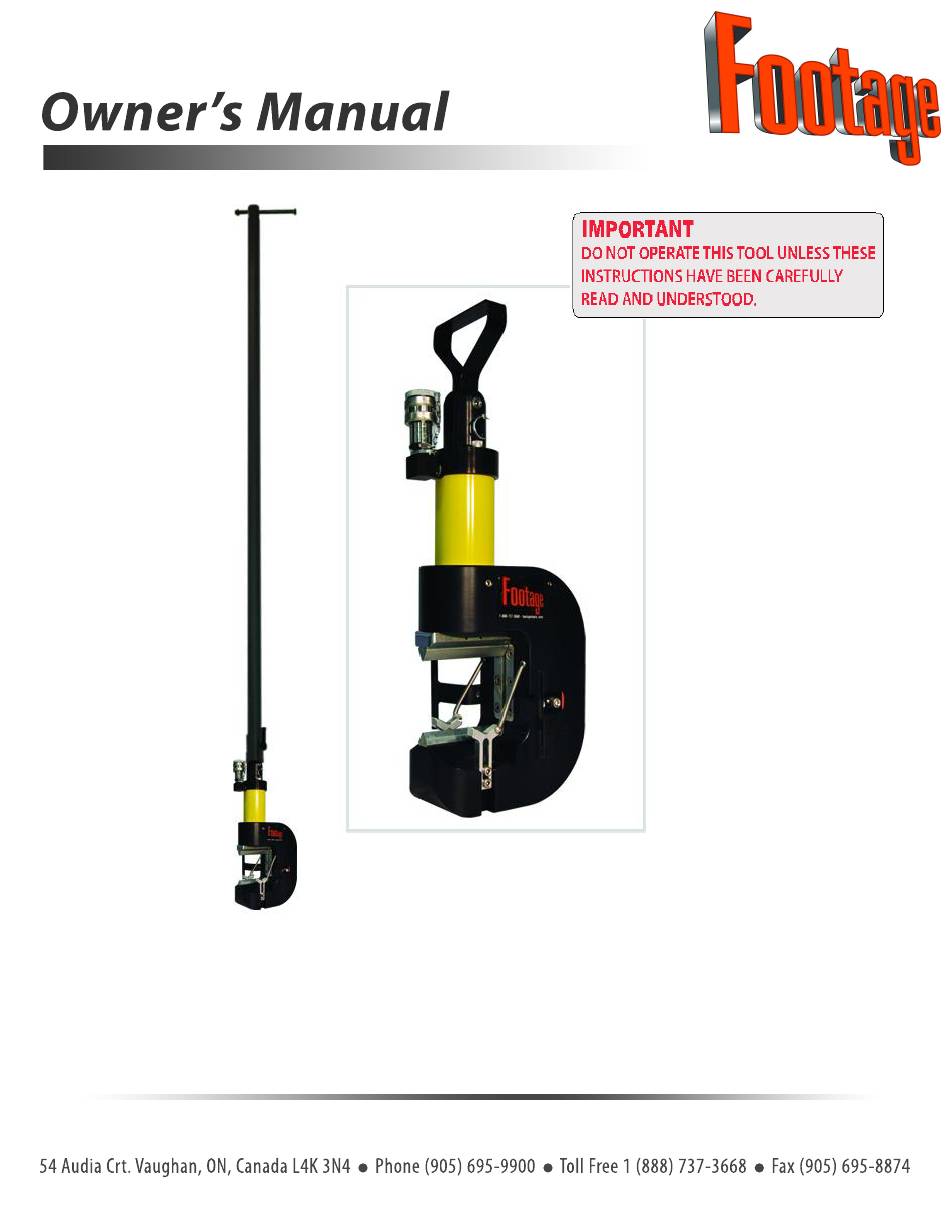

- Page 1 C 165 Remote Steel/ Riser Squeeze Off Tool...
- Page 2 DO NOT OPERATE THIS TOOL UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD This Footage Tools’ Hydraulic Squeeze Off Tool is offered with manual release only. T he pum p is also equipped with a needle valve, which can assist in preventing the tool from opening accidentally - turn clockwise to engage.
- Page 3 ECN 1789 C165 Hydraulic Steel Squeeze Off Tool Page 3 of 9 3) Open the tool by turning the pump control valve into the release position. 4) Install the twist bar into outside handle by removing the screw and washer from one end, insert it into the handle and secure it in place by the washer and screw.
- Page 4 ECN 1789 C165 Hydraulic Steel Squeeze Off Tool Page 4 of 9 3) Continue squeezing the pipe until the flow is shut down. When squeezing a ¾” SCH40 steel pipe, the hydraulic pressure SHOULD NOT EXCEED 7500 PSI. If this pressure is exceeded, the pipe may be cut and tool damage may result (See Picture 8).
- Page 5 ECN 1789 C165 Hydraulic Steel Squeeze Off Tool Page 5 of 9 Preliminary assembly procedure for side guides. If side guides will be used (in case of key-hole application, etc.), please follow the instructions below for installation and proper setting.
-
Page 6: Important Note
ECN 1789 C165 Hydraulic Steel Squeeze Off Tool Page 6 of 9 D) SAFETY PRECAUTIONS WARNING: When squeezing a ¾” SCH40 steel pipe, DO NOT exceed the recommended 7500 PSI hydraulic pressure (See Picture 13). This may cut the pipe and cause damage to the tool. - Page 7 If you encounter a problem that you do not understand or cannot solve, contact your Footage Tools dealer. Ensure the tool is in good operating order by routinely:...
- Page 8 This Warranty shall not apply to any part or product which shall have been installed or operated in a manner not recommended by FOOTAGE TOOLS INC, nor to any part or product which shall have been neglected, or used in any way which, in the manufacturers opinion, adversely affects its performance;...
-
Page 11: Important Notice
IMPORTANT NOTICE IMPORTANT NOTICE Warranty registration now available online. Please visit www.footagetools.com and click on ‘warranty registration’. 54 Audia Crt. Unit #1 Vaughan, Ontario Toll Free: 1-888-737-3668 www.footagetools.com Model: S/N: Tool Registration Card...
