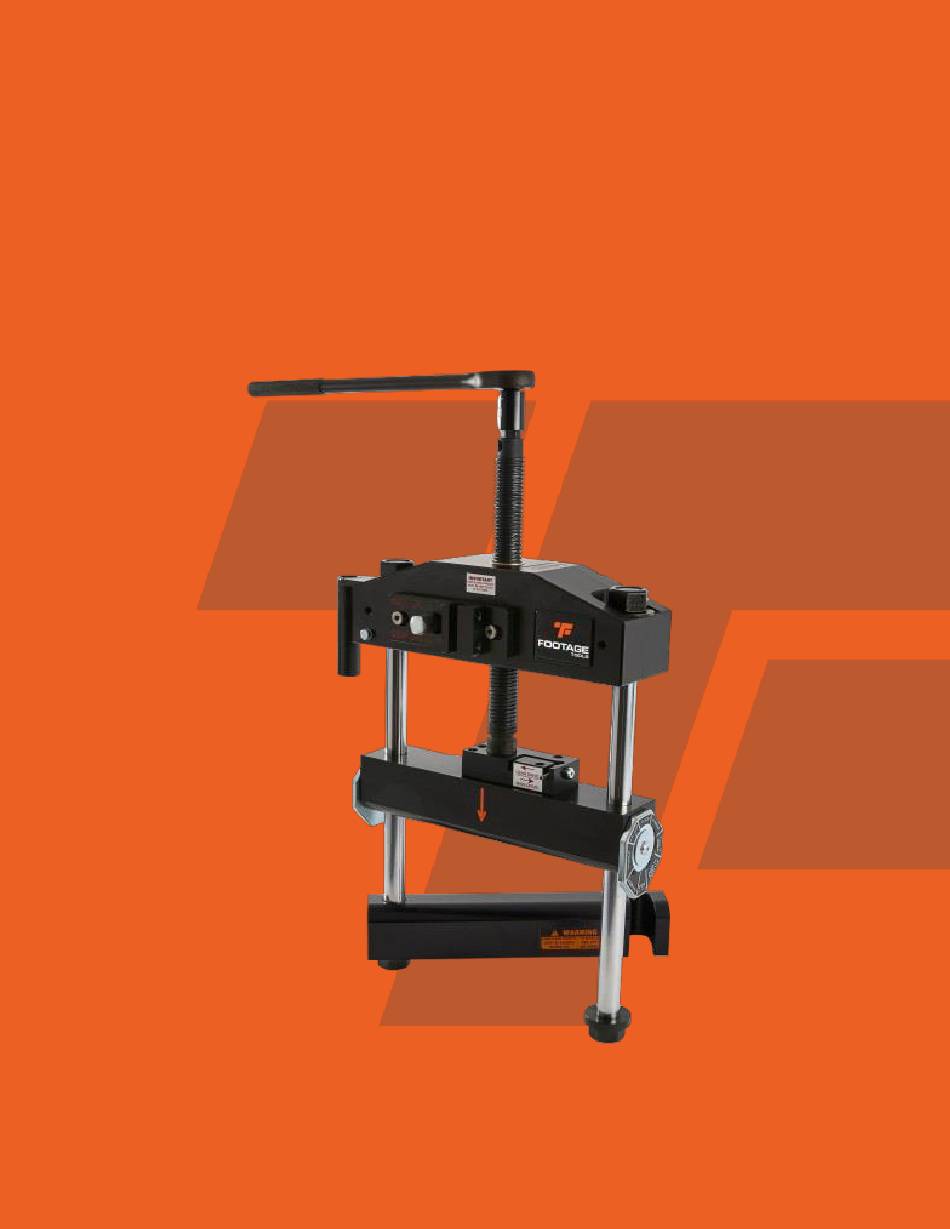

- Page 1 Owner’s Manual C400-A3 Gear Operated Squeeze Off Tool Phone (905) 695-9900 Toll Free 1 (888) 737-3668 54 Audia Crt. Vaughan, ON, Canada L4K 3N4...
-
Page 2: Safety Warning
Ensure the grounding system is properly planted in the soil to reduce the chances of static discharge. Do not modify or alter the tool in any way. Only use Footage Tools replacement parts provided by the manufacturer or authorized distributor. - Page 3 C400-A3 Gear Operated Squeeze Off Tool for PE Pipe DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD SAFETY WARNING: WARNING: WHEN OPERATING THIS TOOL, SAFETY EQUIPMENT INCLUDING SAFETY GLASSES ARE REQUIRED BEFORE PERFORMING A SQUEEZE, CLEAN THE POCKETS ON UNDERSIDE OF LOWER BAR AND WHERE THE SIDE SHAFT WILL CONTACT THE LOWER BAR.
-
Page 4: Preliminary Assembly
C400-A3 Gear Operated Squeeze Off Tool for PE Pipe DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD PRELIMINARY ASSEMBLY: To connect the C615-A105 static grounding kit, mount the grounding tool lead to the upper bar, left hand corner with the 1/4"... - Page 5 C400-A3 Gear Operated Squeeze Off Tool for PE Pipe DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD OPERATING INSTRUCTIONS: Squeezing the Pipe Set the gauge plates (3) on each side of the tool to the specific pipe size and SDR value.
- Page 6 C400-A3 Gear Operated Squeeze Off Tool for PE Pipe DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD OPERATING INSTRUCTIONS: Squeezing the Pipe When it becomes too difficult to squeeze the pipe using the Top Drive, rotate the Power Screw (8) until the indicator bar on the Power Screw aligns with the arrow on the locking pin retaining block.
- Page 7 C400-A3 Gear Operated Squeeze Off Tool for PE Pipe DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD OPERATING INSTRUCTIONS: Squeezing Large Diameter Pipe With Pipe diameters larger than 3” (75mm), the squeezing process should be paused at intervals to allow the pipe material time to “cold flow”...
- Page 8 To ensure the removal of any static electric charge build-up, ensure the grounding system is properly planted in the soil. Your tool can easily be fitted with a grounding stake if not so equipped. Contact your FOOTAGE TOOLS dealer for installation instructions and parts.
- Page 9 C400-A3 Gear Operated Squeeze Off Tool for PE Pipe DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD OPERATING INSTRUCTIONS: C. RELEASING THE PIPE When the pipe is ready to be released from the squeeze, rotate the Front Drive (6) in the opposite direction.
- Page 10 C400-A3 Gear Operated Squeeze Off Tool for PE Pipe DO NOT OPERATE THESE TOOLS UNLESS THESE INSTRUCTIONS HAVE BEEN CAREFULLY READ AND UNDERSTOOD SAFETY WARNING: If you experience difficulty obtaining flow control when squeezing HDPE pipe, we recommend you perform a double squeeze and vent to atmosphere.
- Page 12 FOOTAGE TOOLS INC. within thirty (30) days from the date of purchase. This warranty and any possible liability of FOOTAGE TOOLS INC. hereunder are in lieu of all other warranties, expressed, implied, or statutory, including, but not limited to, any warranties of merchantability or fitness for a particular purpose.
