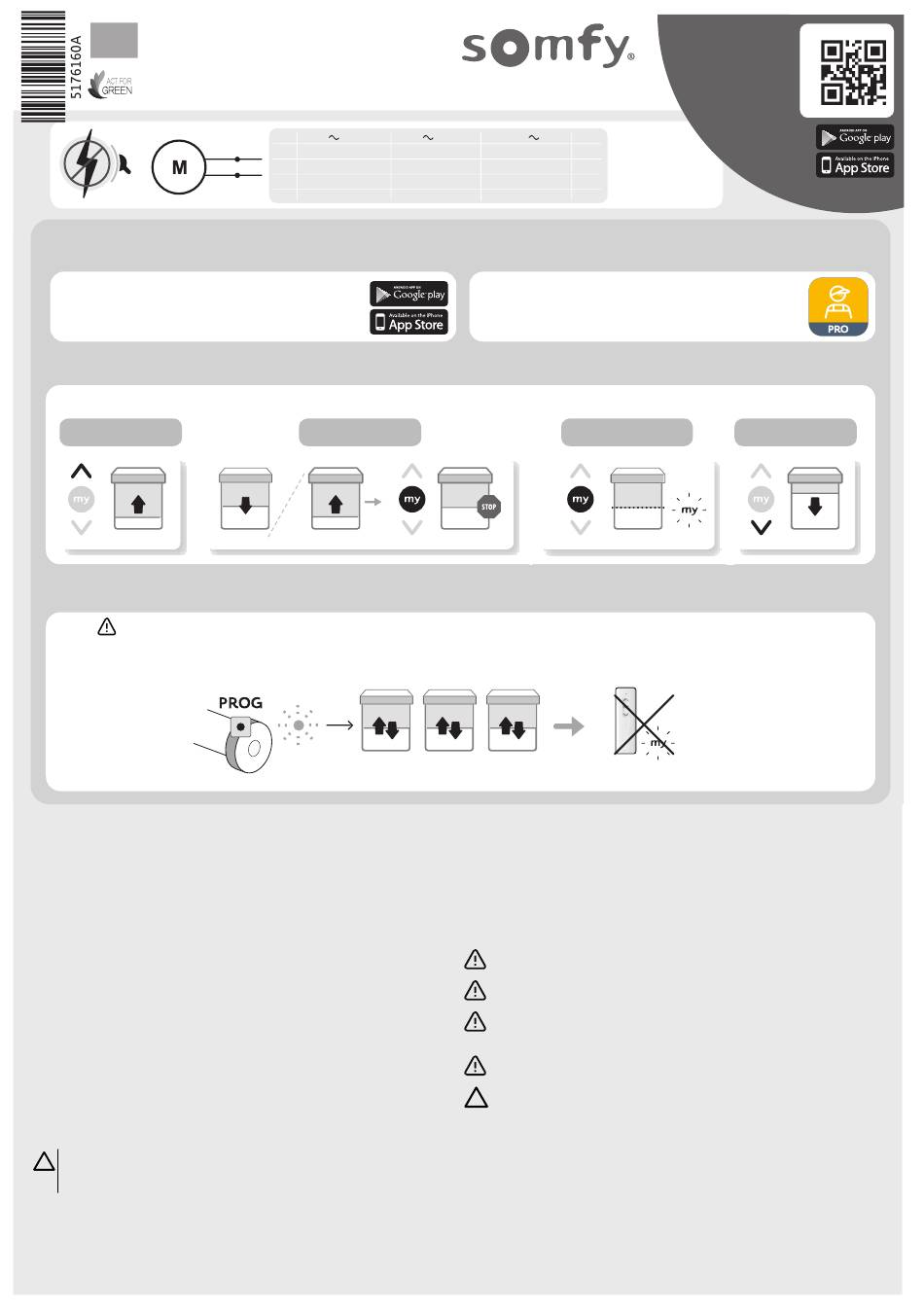

SONESSE2 40 Zigbee HP
Short installation guide
O
RIGINAL INSTRUCTIONS
Complete instruction guide available online on www.somfy.info
OFF
1
download "TaHoma pro" application
2
This drive does not require any maintenance operation.
UP
3
This reset deletes all programmed control points, all sensors, all end limit settings and resets the favourite (my) position for the drive.
These instructions apply to all Sonesse 40 Zigbee drive, the different versions of which are available in the current catalogue.
FIELD OF APPLICATION
The Sonesse 40 drives are designed to motorise all types of:
– Interior vertical blinds which front rail moves solely by gravity with a mass less than 15 kg.
– Tiltable venetian blinds which bottom lath can be lifted at least by 4 cm when an upward force of 150 N is applied to the bottom lath positioned at 16 cm from the fully extended position.
LIABILITY
Please read these instructions carefully before
installing and using the drive. In addition to following
the instructions given in this guide, the instructions
detailed in the attached Safety instructions
document must also be observed.
The drive must be installed by a motorisation and
home automation professional, according to
instructions from Somfy and the regulations
applicable in the country in which it is commissioned.
It is prohibited to use the drive outside the field of
application described above. Such use, and any failure
to comply with the instructions given in this guide and
in the attached Safety instructions document,
absolves Somfy of any liability and invalidates the
warranty.
CAUTION
The product is intended for being supplied by Class II output of an external power supply. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician
install an outlet near the motorised product.
230 V 50 Hz
Brown
L
L
Blue
N
N
START UP
To set the drive,
available on stores
STOP
INSTRUCTIONS TO BE RESPECTED
The installer must inform its customers of the
operating and maintenance conditions for the drive
and must provide them with the instructions for use
and maintenance, and the attached Safety
instructions document, after installing the drive. Any
After-Sales Service operation on the drive must be
performed by a motorisation and home automation
professional.
If in doubt when installing the drive, or to obtain
additional information, contact a Somfy adviser or go
to the website www.somfy.com.
120 V 60 Hz 220 V 60 Hz
Black Brown
White Blue
Once the "TaHoma pro" application is downloaded,
open the app and follow the instructions
USE
x2
DRIVE RESETTING
SAFETY INSTRUCTIONS FOR WIRING
Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
Attach cables to prevent any contact with moving parts.
If the drive is used outdoors, and if the power supply cable is a type H05-VVF cable, the cable should be
installed in a UV-resistant duct, e.g. under a gland.
Leave the drive power supply cable accessible: the product must be easily replaceable.
Always make a loop in the power supply cable to prevent water entering the drive.
From the Application
"Help me by Somfy"
scan the QR code here to
find complete setting
instructions.
"Help me by Somfy"
available on stores
DRIVE SETTING
to set the drive.
MY DOWN
