KStrong UFS310010 User Instruction Manual

Self-retracting devices
Hide thumbs

Advertisement

Table of Contents

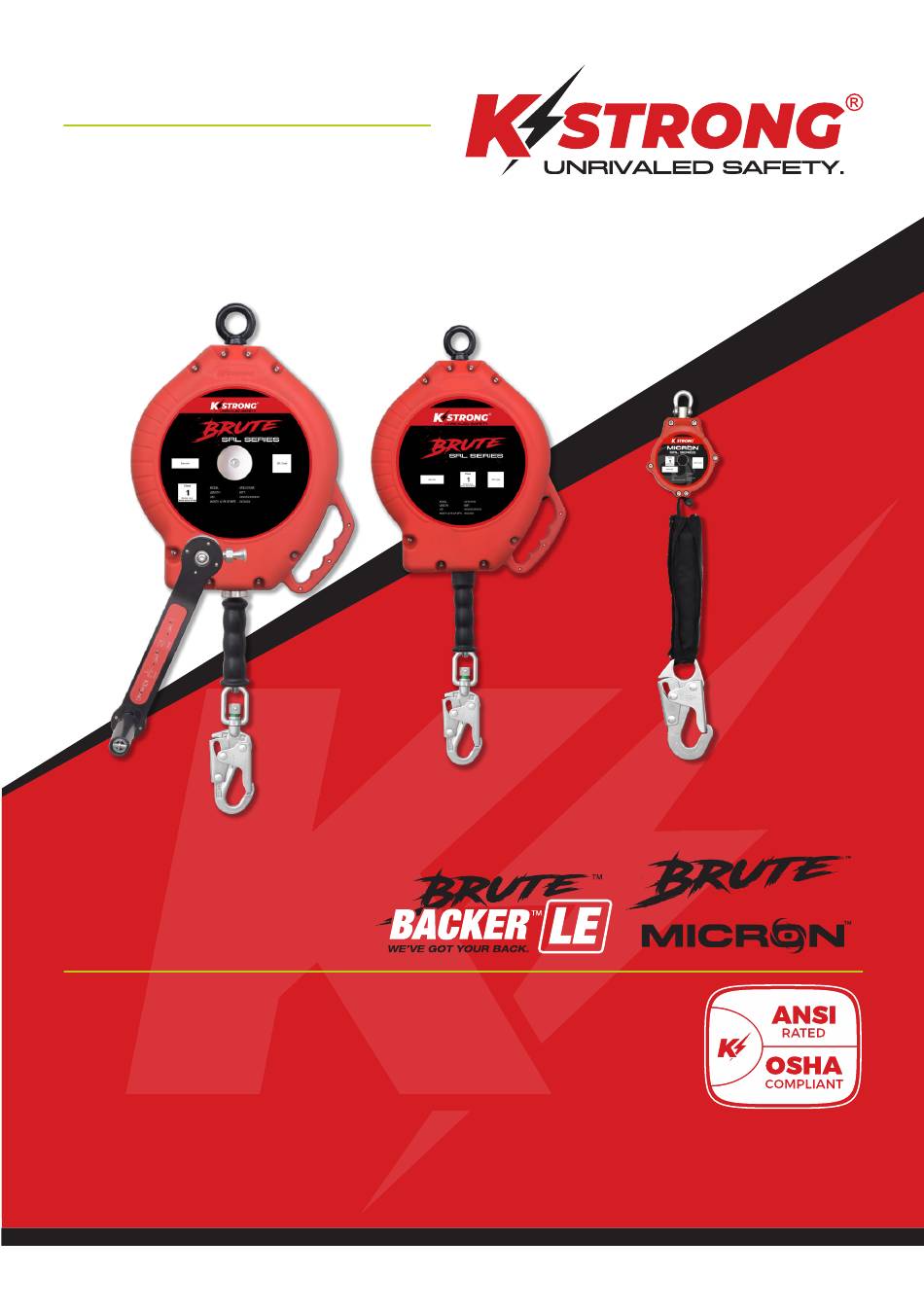

USER INSTRUCTION MANUAL
SELF-RETRACTING DEVICES
THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODELS:
UFS310010, UFS310018(SS), UFS310018L, UFS310020, UFS310020(SS), UFS310025 (SS), UFS310025L, UFS310030, UFS310030
(SS), UFS310030L, UFS310050, UFS310050 (SS), UFS310050L, UFS310060R, UFS310080L, UFS310090, UFS310090R, UFS310100,
UFS310100R, UFS310130, UFS310150, UFS310206L, UFS310206LD, UFS314006L, UFS314006LD, UFS316106L, UFS316106LD, UFS319006L, UFS319006LD,
UFS330008, UFS350002, UFS350002D, UFS350011, UFS350025, UFS350206L, UFS350206LD, UFS351102, UFS351102D, UFS354002, UFS354002D, UFS354006L,
UFS354006LD, UFS354011, UFS356002, UFS356002D, UFS356106L, UFS356106LD, UFS310206LV2, UFS314006LV2, UFS316106LV2, UFS319006LV2, UFS350206LV2,
UFS354006LV2, UFS356106LV2, UFS350206LDV2, UFS354006LDV2, UFS356106LDV2, UFS310206LDV2, UFS314006LDV2, UFS316106LDV2, UFS319006LDV2,
UFS359002, UFS359002D, UFS359102D, UFS359206, UFS359206D, UFS359506, UFS359506AR, UFS359506D, UFS359506S, UFS389006D, UFS389006DA, UFS390006,
UFS390006D, UFS394006, UFS394006D, UFS396006, UFS396006D, UFS480020, UFS480020L, UFS480025L, UFS480030, UFS480050, UFS480050L, UFS570025,
UFS570025R, UFS570030, UFS570050, UFS570050R, UFS570060, UFS570080, UFS570080R, UFS570100 AND UFC409151 (Twin SRL Connector)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFS310010 and is the answer not in the manual?

Questions and answers

Related Manuals for KStrong UFS310010

Summary of Contents for KStrong UFS310010

  • Page 1 SELF-RETRACTING DEVICES THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODELS: UFS310010, UFS310018(SS), UFS310018L, UFS310020, UFS310020(SS), UFS310025 (SS), UFS310025L, UFS310030, UFS310030 (SS), UFS310030L, UFS310050, UFS310050 (SS), UFS310050L, UFS310060R, UFS310080L, UFS310090, UFS310090R, UFS310100, UFS310100R, UFS310130, UFS310150, UFS310206L, UFS310206LD, UFS314006L, UFS314006LD, UFS316106L, UFS316106LD, UFS319006L, UFS319006LD,...
  • Page 2 Manufacturer’s instructions must be properly followed for the correct use and maintenance of this equipment. Please contact KStrong for any questions regarding use of this equipment.
  • Page 3 Minimum KStrong Lifeline Material Lifeline Breaking Conformity Model Series and Size Length Strength Casing: Robust and durable plastic Cable: Galvanized steel wire rope UFS310090 90 ft. 3822 lbs. ANSI Z359.14-2021 Class 1 (Ø 3/16 inch) Metal: Steel Snap Hook Casing: Robust and durable plastic BRUTE™...
  • Page 4 Minimum KStrong Lifeline Material Lifeline Breaking Conformity Model Series and Size Length Strength Casing: Robust and durable plastic Cable: Galvanized steel wire rope UFS310050L 50 ft. 3822 lbs. ANSI Z359.14-2021 Class 2 (Ø 7/32 inch) Metal: Steel Snap Hook Casing: Robust and durable plastic...
  • Page 5 Minimum KStrong Lifeline Material Lifeline Breaking Conformity Model Series and Size Length Strength Casing: Polymer Casing Cable: Galvanized steel wire rope UFS310206LD Dual 8.5 ft. 3822 lbs. ANSI Z359.14-2021 Class 2 SRL-P (Ø 3/16 inch) Metal: Steel Snap Hooks Casing: Polymer Casing...
  • Page 6 Minimum KStrong Lifeline Material Lifeline Breaking Conformity Model Series and Size Length Strength Casing: Polymer Casing Cable: Galvanized steel wire rope UFS310206LDV2 Dual 8.5 ft. 3822 lbs. ANSI Z359.14-2021 Class 2 SRL-P (Ø 3/16 inch) Metal: Steel Snap Hooks Casing: Polymer Casing...
  • Page 7 Minimum KStrong Lifeline Material Lifeline Breaking Conformity Model Series and Size Length Strength Casing: Polymer Casing UFS394006 Textile: Technora webbing 13/16” 6 ft. (max) 3822 lbs. ANSI Z359.14-2021 Class 1 SRL-P Micron™* Metal: Steel Rebar Hook Casing: Polymer Casing Dual 6 ft.

  • Page 8: Component Compatibility

    COMPONENT COMPATIBILITY Component compatibility with KStrong manufactured fall protection equipment is ensured by strictly following the instructions for each type of equipment used. However, if the user utilizes combinations of components or sub systems that are manufactured by others, then only a “qualified” or “competent” person (as defined in OSHA) can ensure the compatibility. If substitutions or replacements are made...
  • Page 9 NEVER USE INAPPROPRIATE CONNECTIONS • While using KStrong snap hooks and carabiners, they should not be connected as below: • Two or more connectors should never be attached to a single D-ring. • Never attach a connector that could result in a load on its gate.

  • Page 10: Environmental Hazards

    This equipment is not designed to be used in high temperature environments. It is important to protect this equipment when using near activities like welding or metal cutting. Hot sparks may cause damage to this equipment or burn it. Contact KStrong for details on use of this equipment in high temperature environments.
  • Page 11 • KStrong SRL’s are meant for use by ONE person only. The capacity of KStrong SRL’s is from a minimum of 90 lbs. to a maximum of 310 lbs. (140 kg) hence, the combined weight (clothes, tools, shoes etc.) of a person using this equipment should not be less than 90 lbs.

  • Page 12: Purpose And Application

    PURPOSE AND APPLICATION KStrong SRL’s are used to safely expand the working area, where a harness with a 6 foot lanyard is inadequate. Hence the lanyard line extends to the required length, as per use. When the length is shortened, the line retracts into its casing, ensuring that there is no slack in the line.
  • Page 13 Record the results of the inspection in the Inspection and Maintenance Log found in this manual. Also tick off clearly on the Label sticker where specified. If the equipment is found to be unsuitable for use, it should be immediately removed from service and destroyed, or sent to KStrong or to a KStrong authorized service center for repair. Do not attempt to repair the equipment on your own.
  • Page 14 LE range of SRL’s The KStrong SRL-LE (UFS310018L, UFS310025L and UFS310050L) are engineered such that in the event of a fall from the edge of a roof or a terrace, if subjected to contact with a sharp edge, the retracted lanyard remains intact, while arresting the fall immediately.
  • Page 15 D-ring of the full body harness of the user. How to use this equipment for lateral movement- KStrong SRL-LE can now also be used for lateral movement with 100% tie- off •...
  • Page 16 INSTALLATION OF RETRIEVAL TYPE SRL KSTRONG Retrieval SRL-R’s (UFS310060R and UFS310100R) are coupled with a hoisting winch to enable easy retrieval of a victim of a fall. This SRL-R allows the fall to arrest, and also allows easy hoisting of the victim with the help of the hoist handle. The locking pin on the side of the casing at the base of the handle allows the SRL-R to work in independent of Fall Arrest and Winch modes.
  • Page 17 Now rotate the SRL-R handle in a clockwise direction for retrieving / lifting the victim out from the confined area. WARNING KStrong Retrieval SRL-R’s are designed to be used only on the KStrong Tripod and the designated mounting brackets only. Substitutions or replacements made with unauthorized components or subsystems may adversely affect compatibility of equipment and may make the...
  • Page 18 NOTE KStrong retrieval SRL-R’s are provided with a unique HYDRO-Seepage (HS) system. This system ensures that the component parts inside the SRL-R casing are always kept dry. In the unlikely event of water seeping through the cable opening into the SRL casing, the rubber knob, which is present on the opposite end, should be rotated &...
  • Page 19 INSTALLATION OF KSTRONG Micron™ WITH TIE-BACK HOOK Kstrong Micron™ with tie-back hook (UFS359002) should be used with the SRL casing attached to the Dorsal D-ring of the full body harness, and the extended webbing (with a sheath) wrapped around the anchorage structure, and the tie-back hook secured around the webbing.

  • Page 20: Maintenance

    Cleaning the equipment after use is extremely important, as this maintains the life and safety of the equipment. If soiled, the SRL’s may be wiped off clean with a dry clean cloth. The equipment may also be cleaned using mild soap and water. Rinse, wipe and then hang to dry naturally. Contact KStrong for any further questions. •...
  • Page 21 Manufacturer is not liable or responsible for any loss, damage or injury caused or incurred by any person on grounds of improper usage or installation of this product. LABELS Model - UFS310010 WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 22 : XXXXXXXXXXXX Date of First Use MONTH & YR OF MFR. : XX/XXXX Made in India kstrong.com Model- UFS310030 WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 23 OSHA 1926 Subpart M & OSHA 1910 MONTH & YR OF MFR. : XX/XXXX Date of First Use Made in India kstrong.com Model- UFS310050(SS) WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 24 MONTH & YR OF MFR. : XX/XXXX OSHA 1926 Subpart M & OSHA 1910 Date of First Use Made in India kstrong.com Model- UFS310150 WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 25 Average arresting force: 1350 lbs. Date of First Use MONTH & YR OF MFR. : XX/XXXX Max. arresting distance: 24” Made in India Fall clearance: 7.5’ kstrong.com Model- UFS310060R verage arresting force: 1350 lbs. Model- UFS310100R verage arresting force: 1350 lbs.
  • Page 26 Date of First Use Fall clearance: 7.5’ MONTH & YR OF MFR. : XX/XXXX Made in India kstrong.com Model- UFS310025L WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 27 MONTH & YR OF MFR. : MM/YYYY Free fall: 6’ max. Fall clearance: 18’ (Non-LE Use): Capacity range: 130 - 310 lbs. Made in India Max. arresting distance: 42” kstrong.com Free fall: not permitted Date of First Use Fall clearance: 7.5’ Model- UFS316106L Model- UFS314006L WARNING...
  • Page 28 Free fall: 6’ max. Fall clearance: 18’ (Non-LE Use): Capacity range: 130 - 310 lbs. Made in India Max. arresting distance: 42” kstrong.com Free fall: not permitted Date of First Use Fall clearance: 7.5’ Model- UFS319006L WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 29 LENGTH : 6FT. OSHA- 420 lbs. Date of First Use Made in India : XXXXXXXXXX kstrong.com MONTH & YR OF MFR. : XX/XXXX Model- UFS354002 Model- UFS356002 WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 30 ______/______ ANSI Z359.14-2021 Class 1 SRL-P Date of First Use MONTH & YR OF MFR. : XX/XXXX & ANSI A10.32-2012, OSHA 1910, Made in India OSHA 1926 Subpart M kstrong.com Model- UFS389006D Reorder, Recertification or Will Call Class MODEL UFS389006D...
  • Page 31 OSHA 1926 Subpart M, & ASTM F887-13 Lanyard Material: 13/16" Technora webbing. CAPACITY RANGE: ANSI-130-310 lbs. : UFS359102D MODEL OSHA- 420 lbs. ______/______ LENGTH : 9FT. Date of First Use Made in India : XXXXXXXXXX kstrong.com MONTH & YR OF MFR. : XX/XXXX...
  • Page 32 Free fall: 6’ max. Fall clearance: 18’ (Non-LE Use): Capacity range: 130 - 310 lbs. Made in India Max. arresting distance: 24” kstrong.com Free fall: not permitted Date of First Use Fall clearance: 7.5’ UFS350206LD WARNING Before each use, ensure you read and understand all manufacturer's instructions received with this equipment at the time of shipment.
  • Page 33 Model- UFS570025R USE: This device is meant to be used by a single INSPECTION: Inspect unit in accordance with person as a fall arrester device. The manufacturer's instructions and regulatory connections should only be made directly guidelines. Before use, inspect for any to the attachment point of a full body s i g n s o f d a m a g e , w e a r, o r Harness.
  • Page 34 MONTH & YR OF MFR. : MM/YYYY Max. arresting distance: 120’’ Free fall: 6’ max. Fall clearance: 18’ (Non-LE Use): Capacity range: 130 - 310 lbs. Max. arresting distance: 42” Made in India Free fall: not permitted kstrong.com Fall clearance: 7.5’ Date of First Use...
  • Page 35 Class 2 Clearance Chart - Read Instructions for complete details Distance off Axis of Anchorage (Y) 10ft 12ft 14ft 16ft 18ft 20ft 22ft 24ft 0.0ft 18.0 ft 19.0 ft 20.5 ft 23.0 ft 25.0 ft 27.0 ft 29.0 ft 31.0 ft 31.0 ft 35.0 ft 37.0 ft...
  • Page 36 Date (periodic examination carried out and other examination of competent user or repair) relevant information next due date KStrong Inc. 150 N. Radnor Chester Road Suite F200 Radnor, Pennsylvania 19087 United States Contact number : 1-833-KSTRONG www.kstrong.com South America Asia...
