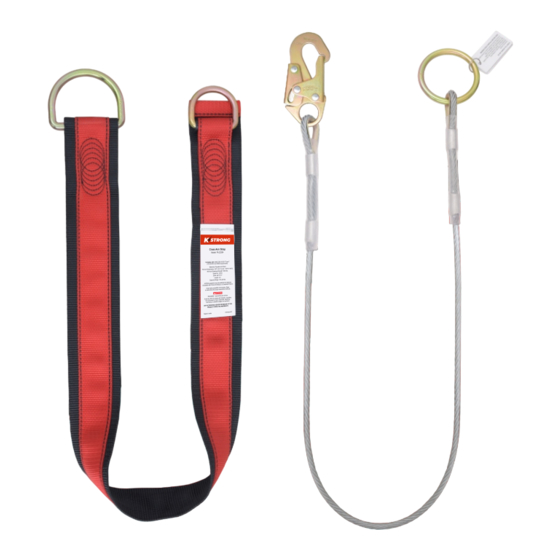

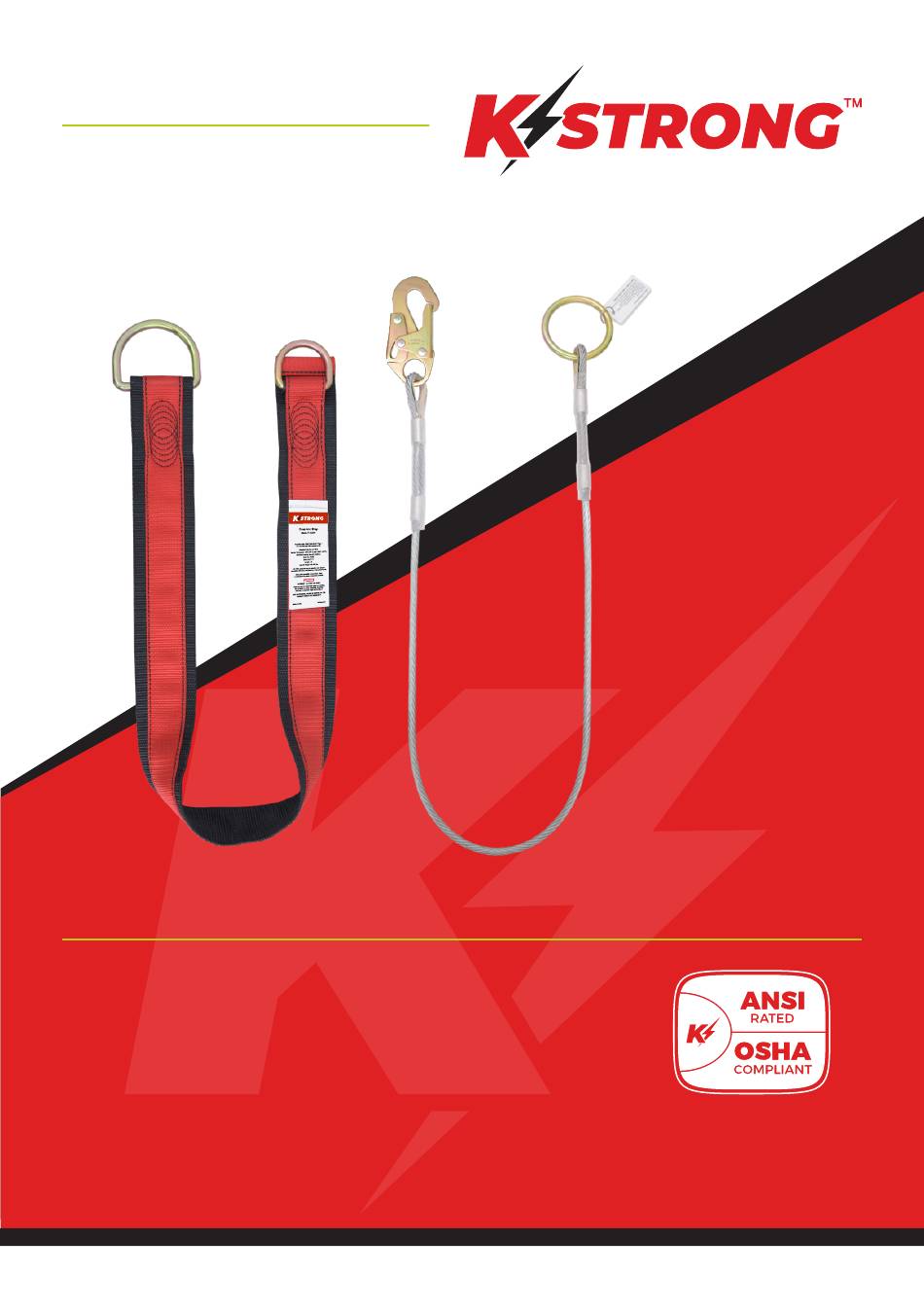

- Page 1 USER INSTRUCTION MANUAL CROSS ARM STRAPS AND ANCHOR WIRE ROPE SLINGS THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODELS: UFA20504, UFA20506, UFA20003, UFA20004, UFA20006, UFA20010, UFA20016, UFA20024, UFA20030, UFA21004, UFA21006, UFA710103, UFA710104, UFA710106, UFA710003, UFA710004 & UFA710006...
-
Page 2: Technical Specification
Manufacturer's instructions must be properly followed for the correct use and maintenance of this equipment. Please contact KStrong for any queries or questions regarding use of this equipment. -
Page 3: Component Compatibility
Ÿ Such harmful environments require a more frequent inspection and servicing program of the fall protection equipment to maintain the integrity and safety of the equipment. Contact KStrong if in doubt. Ÿ All the synthetic material of fall protection equipment must be protected from slag, hot sparks, open flames or other heat sources. - Page 4 NEVER USE INAPPROPRIATE CONNECTIONS While using KStrong snap hooks and carabiners, they should not be connected as below: Ÿ Two or more connectors should never be attached to a single D-ring. Ÿ Never attach a connector that could result in a load on its gate.
- Page 5 Ÿ Sharp Edges Ÿ Moving Machinery and Vehicles Please contact KStrong with any questions regarding the use of this equipment in the presence of any environmental hazard. WARNING This equipment is not designed to be used in high temperature environments. It is important to protect this equipment when using near activities like welding or metal cutting.
- Page 6 It is important to consider the below mentioned limitations before using or installing this equipment. Ÿ The KStrong cross arm straps are meant for use by ONE person only. The capacity of the KStrong cross arm straps is up to 310 lbs. (140 kg) hence, the combined weight (clothes, tools, shoes etc.) of a person using this equipment should not be more than 310 lbs.
- Page 7 If the only available anchorage is situated below the attachment on the harness; and if there is a risk of fall, then it is essential to use a lanyard with a properly rated energy absorber. It is important to ensure that there is sufficient fall clearance below the user, before using a shock absorbing lanyard.
- Page 8 If the ends of the lifelines are not spliced or swaged properly by following the proper methods, then this may result in the termination to give away when the connector connected to them is subjected to a force. KStrong shall not be held responsible for the consequences arising out of this.
- Page 9 INSTALLATION OF KSTRONG CROSS ARM STRAPS KStrong cross arm straps and wire slings are designed to be used as a wrap around structural member like beams, trusses, headers, etc. These structures should be strong enough to withstand a minimum load of 5000 lbs. Ensure that the webbing of the cross arm straps does not come in contact with any sharp edges, rough structures, protruding nails and fasteners, chemical and corrosive environment, petroleum products, heat sources, etc.
- Page 10 Step 4: Use the protruding loop of the strap to anchor the connecting element of Step-3 the personal fall arrest system. INSTALLATION OF KSTRONG WIRE ROPE SLING (Models: UFA710103, UFA710104 and UFA710106 The Anchor wire rope slings are made of PVC coated galvanized wire rope. The termination of the wire rope is looped over a steel thimble and secured back on to the wire, and swaged.
-
Page 11: Maintenance, Service And Storage
Always dry the Cross Arm Strap by hanging to air dry. Do not force dry with heat. Hardware should be wiped off with a clean dry cloth. Contact KStrong for any further query. Ÿ Additional maintenance and servicing procedure must be completed by an authorized service center only. - Page 12 ANY ALTERATION, ABUSE OR MISUSE OF THE Step-3 PRODUCT VOIDS THE WARRANTY. If the equipment fails inspection, IMMEDIATELY REMOVE FROM SERVICE. Made in India kstrong.com DO NOT REMOVE LABELS WARNING: Anchorage Wire Rope Sling Model: UFA710103 Batch No.: XXXXX Serial No.: XXXXX Length: 3 ft.
- Page 13 Other relevant information (e.g. Document number) PERIODIC EXAMINATION AND REPAIR HISTORY Reason for entry Defects noted, repair Periodic Name and signature (periodic examination Date carried out and other examination of competent user or repair) relevant information next due date KStrong.com BRAZIL ASIA...
