- Page 1 INSTALLATION GUIDE FIXED LIFELINE SYSTEMS THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODEL: USCLCXXX (XXX denotes Length)
- Page 2 This manual contains information that is important to the user's safety and should be kept in a safe place for future reference as needed. Please contact KStrong for any questions regarding the use of this equipment. Fall arrest systems and equipment are lifesaving products and are designed to reduce the potential of serious injury in the event of a fall.

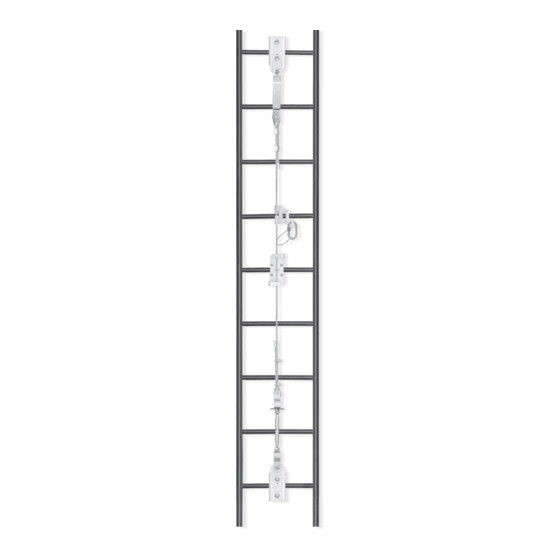

- Page 3 2. VERTICAL LIFE LINE SYSTEM Optional Ref: USCLCXXX (XXX denotes Length) Shock Absorber Ref. UFF512000 Mounting Bracket* Material: Stainless Steel 316 • Ref. UFF511000 Limits the impact of force in the • • Material: Stainless Steel 316 event of fall to less than 6 kN •...
-
Page 4: Cable Termination
CABLE TERMINATION Ref: USCLCXXX (XXX denotes Length) STEP 1: CABLE TERMINATION A suitable cable termination may be selected according to the • site condition, u-bolts and thimbles are only allowed at bottom termination according to EN353.1:2014 STEP 2: U BOLT & THIMBLE Loop the Cable across the thimble and ensure at least 11.81 in. - Page 5 INTERMEDIATE & TENSIONER Ref: USCLCXXX (XXX denotes Length) The intermediates reduces large deflections in the cable due to wind pressure. STEP 3: INSTALLATION OF THE INTERMEDIATE: Ref. UFF511500 Place fisher plate of the Intermediate on the back of ladder rung. •...
- Page 6 SHOCK ABSORBER & CABLE TERMINATION Ref: USCLCXXX (XXX denotes Length) STEP 5: INSTALLATION OF SHOCK ABSORBER Connect the shock absorber to top mounting bracket by • inserting the fastener and the nylon spacer so as to pass through mounting bracket and eye of energy absorber. The spacer ensure the correct position of energy •...
-
Page 7: Extension Arm
EXTENSION ARM Ref: USCLCXXX (XXX denotes Length) STEP 7: INSTALLATION OF THE EXTENSION ARM: Ref. UFF516000 If the System has been provided with the Extension Arm, this shall be installed in place of Upper Mounting Bracket as in step: The Extension Arm is provided pre-installed with the Mounting •... - Page 8 FALL ARRESTER Ref: USCLCXXX (XXX denotes Length) STEP 9: INSTALLATION OF THE ROPE GRAB: UFG602050 Ref. Connect Rope Grab to the Cable following the given simple steps: Hold the Rope Grab as shown in the figure. • Push the Rope Grab through the cable and rotate it counter •...
-
Page 9: Pre-Use Checks
It is mandatory for the Site Inspector/ Supervisor and the actual users of the system to perform a thorough check of the same before • carrying out work. KStrong conducts a brief training of all concerned personnel on the subject of Pre-Use Inspection of the System as per a defined guideline after the system has been installed by KStrong personnel. - Page 10 The mobile app provides each user vital information on inspection and periodic maintenance needs and helps in increasing the life of the equipment. Using KStrong Compass™ is a wise decision to cut down costs on PPE.
- Page 11 6. TOOLS RING SPANNER DOUBLE END SPANNER SOCKET SET TENSIONER TIGHTENING TOOL CRIMPING PLIER BOLT CUTTER ALLEN KEY MACHINES HYDRA JAWS LIFELINE TESTING CORDLESS DRILL MACHINE HAMMER DRILL MACHINE CORDLESS IMPACT WRINCH SWAGING TOOL HYDRAULIC CRIMPING HEAD POWER BIRD RIVETING MACHINE ANCHORS...
-
Page 12: Measuring Tools
MEASURING TOOLS DIGITAL TORQUE WRENCH TAPE DETECTOR DISTANCE METER LASER TOOL VERNIER CONSUMABLES, MISCELLANEOUS TOOLS IMPACT SETTING TOOL PAINT BRUSH DRILL BIT DRILL DUST PUMP HOLE SAW CUTTER HOT AIR GUN BLOWER CHEMICAL APPLICATOR WRENCH SIZE Hex Bolt Wrench Size Socket Size ALLEN KEY SIZE Allen Bolt Size... - Page 13 LIFESPAN: The estimated product Lifespan is 10 years from the date of manufacture. The following factors can reduce the Lifespan of the product: intense use, contact with chemical substances, specially aggressive environments, extreme temperature exposure, UV exposure, abrasions, cuts, violent impacts, bad use or maintenance. DISCLAIMER: Prior to use, the end user must read and understand the manufacturer's instructions supplied with this product at the time of shipment and seek training from their employer's trained personnel on the proper usage of the product.
- Page 16 KStrong Inc. 150 N. Radnor Chester Road Suite F200 Radnor, Pennsylvania 19087 United States Contact number: 1-833-KSTRONG www.kstrong.com South America ASIA...
