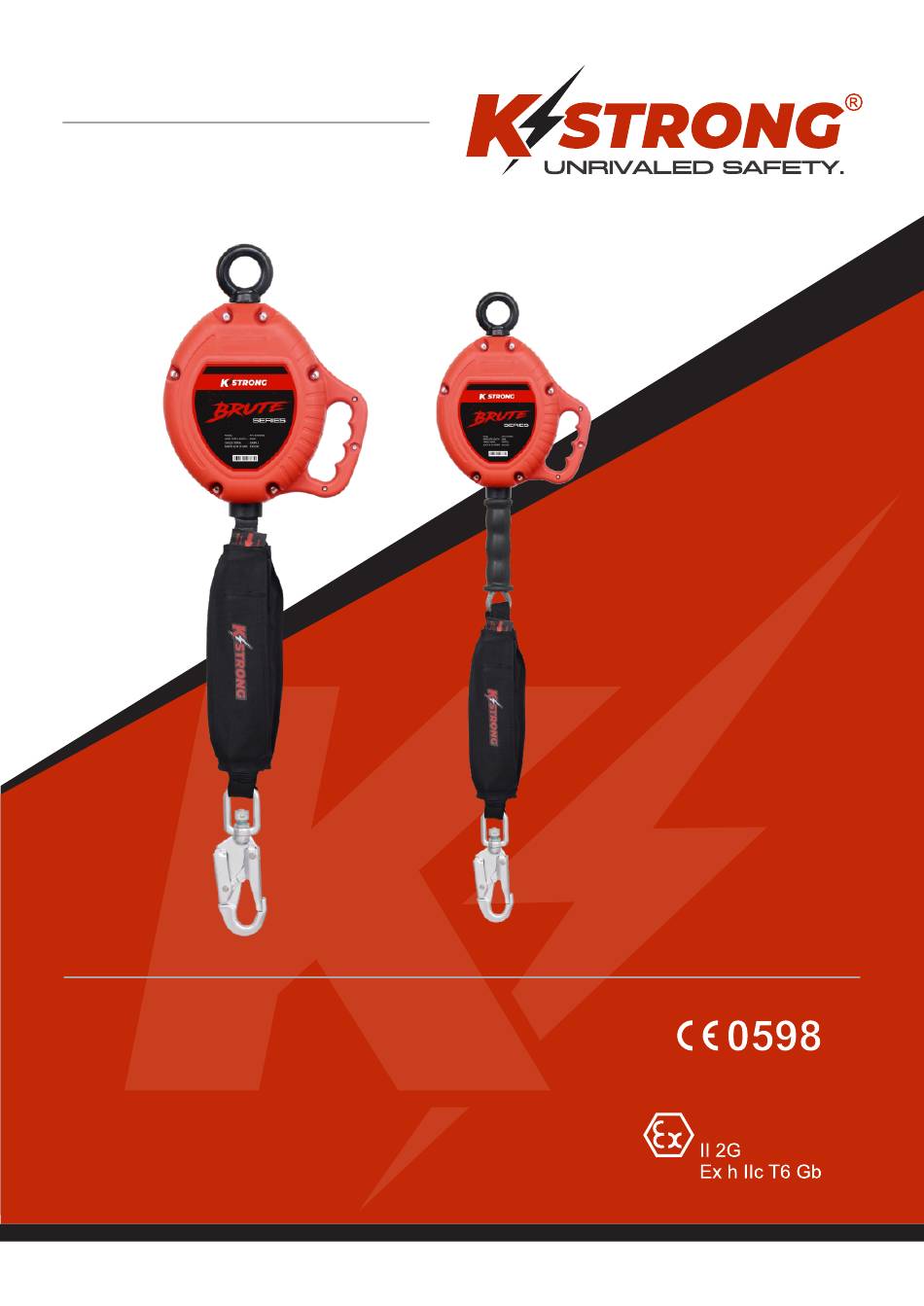

- Page 1 USER INSTRUCTION MANUAL BRUTE SHARP EDGE EN 360:2002 RETRACTABLE FALL ARRESTERS VG11 RFU # 11.060 THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODEL: AFS510003.5SE, AFS510006SE, AFS510010SE, AFS510015SE, AFS510020SE, AFS550003.5SE and AFS550006SE...
-
Page 2: Performance And Limitations Of Use
Please read and understand the manufacturer's instructions for each component or part of the complete system. Manufacturer's instructions must be followed for proper use, care, and maintenance of this product. These instructions must be retained and be kept available for the user's reference at all times. - Page 3 POSSIBLE USAGE :The Sharp Edge Retractable Fall Arrester can be used as a part of a fall arrest system or as a part of a restraint system. If using as a part of fall arrest system, a suitable anchor point (above the user’s head, at least 12kN) shall be used. Attachments to the anchor points and o ther equipment shall be made using oval Karabiners to EN362.
- Page 4 Additional information as per VG 11 a. The retractable type fall arrester was tested for horizontal use and a drop over a Type A edge has been successfully tested. Type A edge definition: A steel edge with a radius of r = 0.5 mm and without burrs was used for the test. Due to this test, the equipment may be used over similar edges, as can be found e.g.
- Page 5 Label (ii) 50 C 122 F 40 max -22 F -30 C (iii) Min 12kN EN 795 SHARP EDGE series r>0.5mm (iv) (vi) (vii) MARKING EXPLANATION (iv) Product Ref. No. Wire Rope Length Retractable Fall Arrester is marked with : (vi) UID for traceability The ‘CE’...
- Page 6 Min 12kN EN 795 r>0.5mm SHARP EDGE series 40 max 50 C 122 F -22 F -30 C Min 12kN EN 795 r>0.5mm SHARP EDGE series 40 max 50 C 122 F -30 C -22 F WEBBING...
- Page 7 Min 12kN EN 795 r>0.5mm 40 max SHARP EDGE series 50 C 122 F -30 C -22 F Min 12kN EN 795 r>0.5mm 40 max SHARP EDGE series 50 C 122 F -30 C -22 F WEBBING...
- Page 8 SATRA Technology Europe Ltd, Bracetown Business Park, Clonee, Dublin D15 YN2P Ireland (Notified Body 2777) Ongoing Assessment Body: SGS Fimko Oy, Takomotie 8, FI-00380 Helsinki, Finland (Notified Body 0598) For EU Declaration, please visit https://kstrong.com/asia/eu-declaration-form/ KStrong Inc. 150 N. Radnor Chester Road Suite F200...
