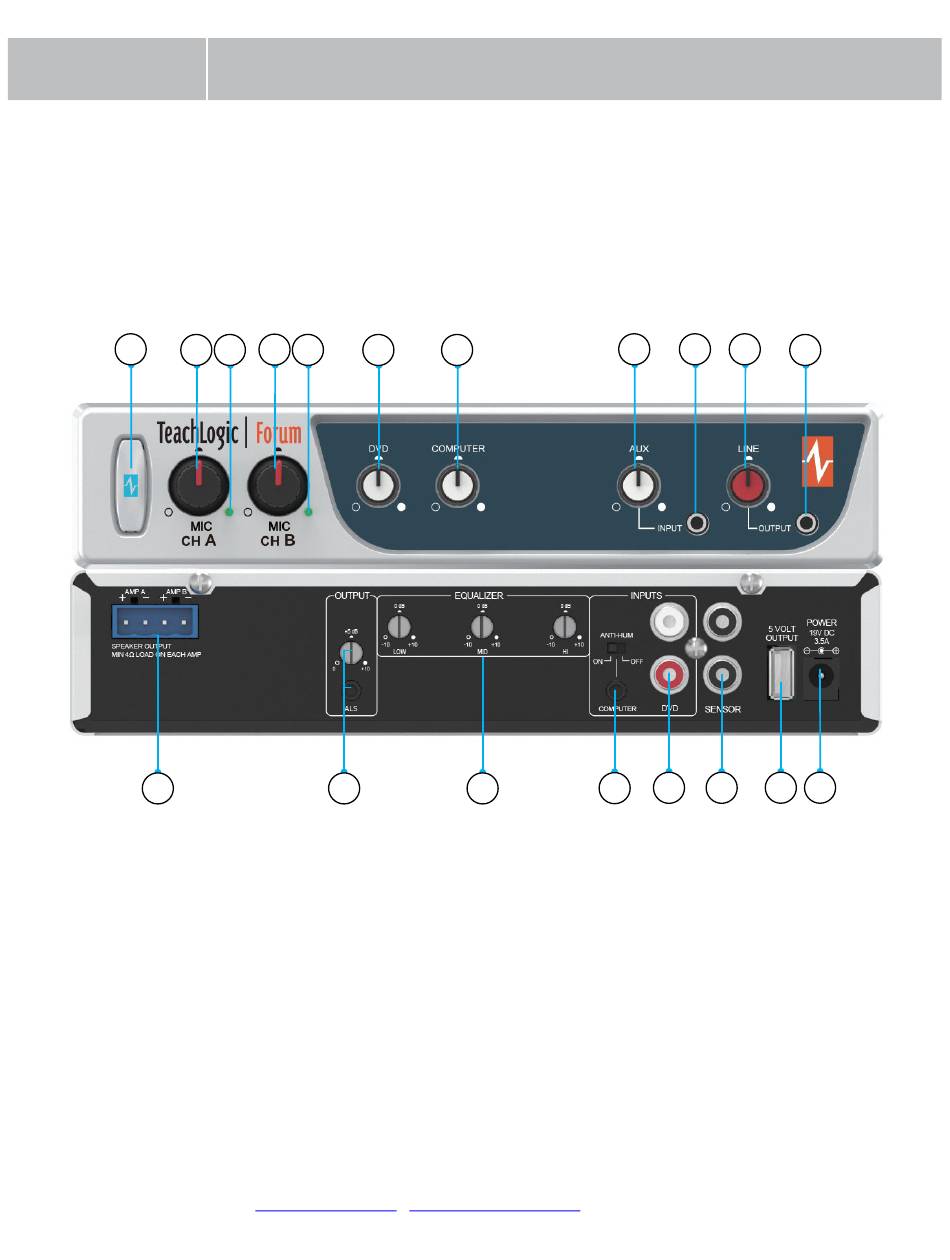

Front Panel
1. Power Button/ Indicator LED
2. Channel A Microphone Volume Control
3. Channel A Connectivity Indicator LED
4. Channel B Microphone Volume Control
5. Channel B Connectivity Indicator LED
6. DVD Input Volume Control
1
2 3
1
Back Panel
1. Speaker Output
2. ALS Output (3.5 mm) & Gain Control
3. Three Band Equalizer Controls
4. Computer Input Port (3.5 mm) / Computer
Anti-Hum ON/OFF Switch
System Overview
4 5 6
2
www.teachlogic.com | support@teachlogic.com
7. Computer Input Volume Control
8. Aux Input Volume Control
9. Aux Input Port (3.5 mm)
10. Line Output Volume Control
11. Line Output Port (3.5 mm)
(suitable for Lesson Capture)
8
7
3 4
5. DVD Input Ports (Dual RCA, 0 dB)
6. Powered IR Ceiling Sensor Inputs (RCA x 2)
7. 5 Volt USB Output for chargers
8. Power Input: 19 VDC, 6.5 A
