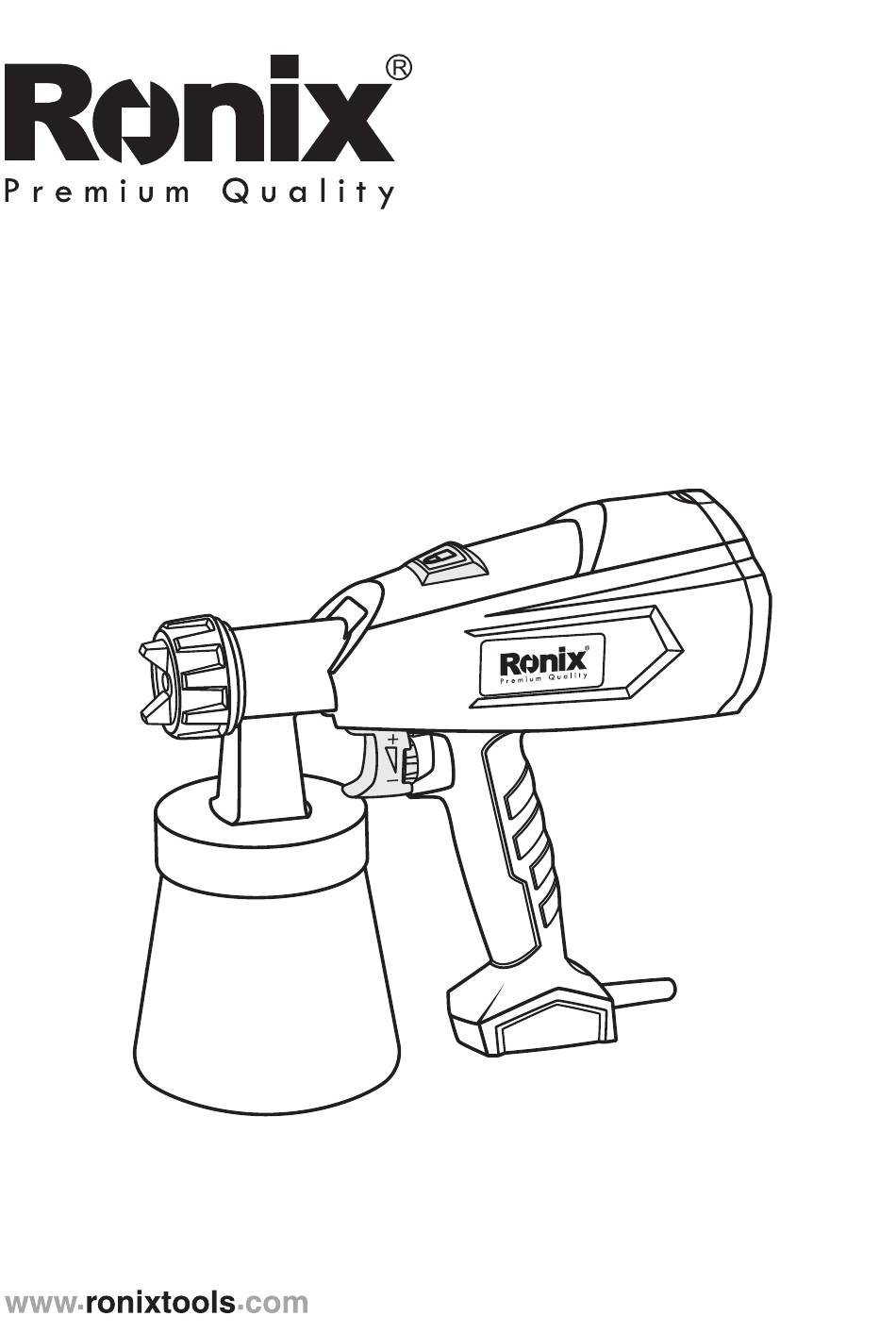

- Page 1 SPRAY GUN 1335V...
-
Page 2: Specifications
SPECIFICATIONS Model 1335V Power 350W Frequency 60Hz Voltage 110V Paint Reservior 700ml Max. Viscosity 60din/sec Max. Flow 700ml/min Nozzle 1.8mm, 2.6mm Weight (1) Viscosity measuring Accessories cup, (1) 2.6mm nozzle Spray Fun PARTS LIST Front Parrt unlock button Spray Gun... -
Page 3: General Safety Instructions
Read the operating instructions carefully before using the tool and observe the safety instructions. Keep the operating instructions in a safe place. GENERAL SAFETY INSTRUCTIONS WARNING! When using electric tools, basic safety followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before operating this product and save these instructions. - Page 4 Rubber gloves and non-skid footwear are recommended when working out doors. Wear protecting hair covering to contain long hair. 9) Use safety glasses. 10) connect dust extraction equipment. - if devices are provided for the connection of dust extraction and collection facilities ensure these are connected and properly used.
- Page 5 outdoor use. 19) Stay alert. - Watch what you are doing, use common sense. Do not operate tool when you are tired. 20) Check damaged parts. - Better further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it would operate properly and perform its intended function.
-
Page 6: Danger Of Injury
- There must be no sources of ignition such as, for example, open fires, smoke of lit cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the vicinity during spraying. - Do not spray any substances whose hazard potential is not known. - Before working on the spray gun remove the power plug from the socket. -
Page 7: Residual Risks
RESIDUAL RISKS Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool’s construction and design: 1. Damage to lungs if an effective dust mask is not worn. 2. -
Page 8: Preparation Of The Coating Material
finishes, automotive finishes, staining sealers and wood sealer – preservatives. COATING MATERIALS SUITABLE FOR USE Wall paints (emulsion paints) etc., alkali and acidic paints. Coating materials with a flash point below 21C. PREPARATION OF THE COATING MATERIAL The enclosed spray attachment can be used to spray paints, varnishes and glazes that are undiluted or slightly diluted. - Page 9 Fig3 Fig4 Fig5 10-30cm Fig2 SPRAY GUN...
- Page 10 START – UP Before connecting to the mains supply, be sure that the supply voltage is identical with the value given on the rating plate. - Unscrew the container from the spray gun. - Aligning suction tube. (Fig.2) If the suction tube is positioned correctly, the container content can be sprayed without almost any residue.
- Page 11 ADJUSTING THE DESIRED SPRAY SETTING (FIG. 4) With the union nut (2) slightly unscrewed, turn the air cap (1) to the desired spray setting position. Then tighten the union nut. WARNING! Danger of injury! Never pull the trigger guard while adjusting the air cap. Adjusting the material Volume (Fig.5) Set the material volume by turning the regulator on the trigger guard of the spray gun.
- Page 12 Fig7 Interruption of work till 4 Hours - Turn the machine off. - When processing -2component varnishes, clean the device immediately. Taking out of Operation and cleaning Proper cleaning is the prerequisite for problem-free operation of the paint application device. No warranty claims are accepted in case of improper or no cleaning.
- Page 13 CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray gun with metal objects. The ventilation hose and diaphragm are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe. WARNING! Never hold the spray gun rear part under water or immerse it into liquids. Clean the housing only with a moistened cloth.
-
Page 14: Maintenance
MAINTENANCE Change the air filter if it is soiled (Fig. 9, item 7). WARNING! Never operate the machine without the air filter; dirt could be sucked in and interfere with the function of the machine. Problem Cause Remedy No coating material Nozzle clogged Clean emerges from the nozzle... -
Page 15: Environmental Protection
Spray jet Container Refill Pulsates Coating material in Change container running out Air filter heavily soiled Coating material Too much coating material Turn material volume Causes “paint tears” applied. adjusting screw to the left (-) Paint in the ventilating Diaphragm soiled Clean the diaphragm hose Diaphragm defective...
